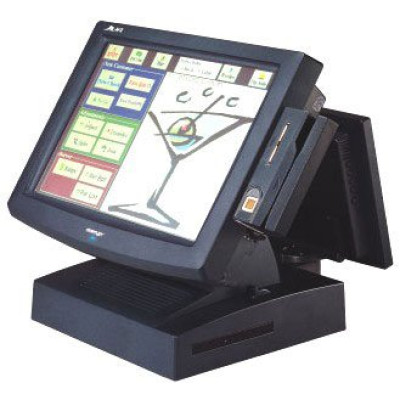

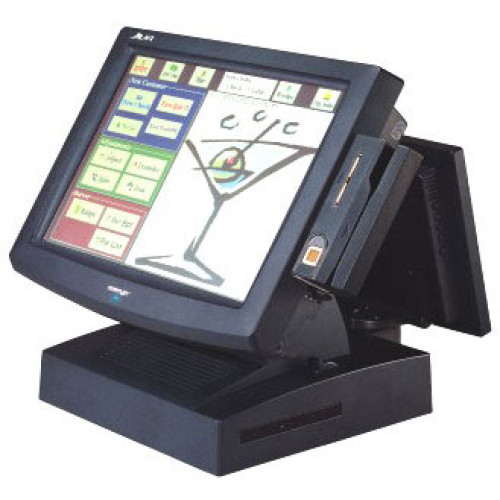

Posiflex Jiva 7000 POS Touch Terminal

The Posiflex Jiva 7000 is an ideal touch terminal for customer-related terminal applications, such as those needed in kiosks, gaming, casinos and retail stores. The bright and distinct 15" LCD screen is easy to read and sturdy enough to handle demanding environments. An Intel Celeron processor and either 256 or 512 MB memory make applications fly. The Jiva 7000 is able to run a wide variety of applications due to its support for Windows 2000, NT, XP Pro, Red Hat Linux and XWindows.

See all options

Specs & Info
All Options

Posiflex Jiva 7000 Specs (pdf)

Jiva 7000 Specifications

LCD Resolution	1024 X 768
Brightness	250 nit/m ²
Audio output	Standard
Mic input	Standard
LCD Panel	15.1" TFT
CPU	Celeron 1.2 GHz
Second Display Interface	VGA
Display Memory	64 bit, memory size programmable up to 64MB
DIMM Memory	PC100/133 SDRAM x 2 DIMM up to 1 GB
Serial Port	With +5VDC 4 available with PS/2 touch interface, 3 available with RS232 touch controller interface
Parallel Port	1
CR Port	1 port controls 2 devices (shared with COM1)
USB Port	5
KB Port	1 x PS/2 type
Mouse Port	1 x PS/2 type
LAN Port	10/100 MHz base Ethernet
HDD	20 GB up
FDD	3.5” external USB interface (option)
Internal UPS	Yes (Battery optional)
ON/OFF Control	Software controlled for Mechanical ON/OFF or Mechanical ON / Software OFF
Touch Sensor	Resistive
Tilt adjustment	From 17.5 ^o to 87.5 ^o
Power Wake up	Through alarm/LAN/RS232 Modem
Mounting Option	Table top
Power settings	Suspend or Standby Mode
Touch Control Function	Emulate mouse left / right button (for WIN98 only), double click and drag & drop
Touch beep controls	Sound pitch adjustment, sound enable/disable by software
Power Supply	Input 100~240V, output 12V/80W AC adaptor
Housing Color	Charcoal (other colors option)
Storage Condition	-20 ^o ~ +60 ^o C; 10%RH ~ 80%RH; non-condensing maximum wet bulb 28.9 ^o C
Operation Condition	0° ~ +40°C; 20%RH ~ 80%RH; non-condensing maximum web bulb 26°C
Dimension	375 (W) x 288 (D) x 324~421 (H)mm
OS Support	Win98 / NT / 2000 / XP Professional / Linux Red Hat 7.0 / X windows 4.0.2
Weight	11.6kg (25.6lbs) including power adapter and speakers
Safety Certifications	PSU: UL/VDE/T mark, Terminal: FCC, CE (meet IEC 1000-4-2 class A)

Extended Details

Refine Your Options

Posiflex Jiva 7000 POS Touch Terminal
Part #: TP7012R1W98/CD | SKU: POS23088

Jiva 7000, 12" Touch Terminal, 566 MHz Celeron processor, 64MB RAM, Windows 98 operating system, New #TP7115R4W98
