model-8043 model-8043 model-8043 Motorola

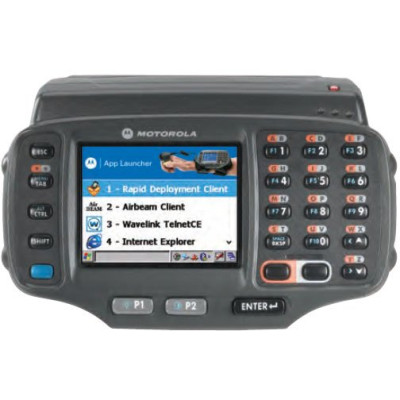

Motorola WT41N0 Handheld Computer

Motorola WT41N0 Handheld Computer

Arm your workers with advanced, real-time, hands-free mobile computing with the Motorola WT41N0 Wearable Terminal. This rugged device will allow you to achieve maximum error-proof productivity, operational efficiency and accuracy through voice compatibility for streamlined warehouse and package handling functions.
Starting at: Price: $2,541.60
See all options
  • Ergonomic, hands-free wearable design
  • Microsoft Windows Embedded Compact CE 7.0 operating system
  • Best-in-class dual core processor provides the power to run virtually any enterprise application.
  • Wi-FI (802.11a/b/g/n)
  • Supports text-only, voice-only and combination text and voice applications
  • Designed to operate across a wide temperature ranges ensures operation in virtually all environments
  • Robust support for the latest security protocols keeps your data safe.
  • 2.8" color QVGA display with backlight
  • IP54 rated
  • Push-to-talk (PTT) ready
  • Backwards compatibility with all WT4000 accessories

Application Development

Microsoft IDEs and SDKs

Communications

Network connections
Full-speed USB, host or client

WLAN
IEEE 802.11 a/b/g/n

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, 802.11n: up to 72.2 Mbps

Antenna
Internal with diversity

Frequency range1
802.11a – 5.0 GHz, 802.11b: 2.4-2.5 GHz, 802.11g: 2.4-2.5 GHz, 802.11n: 2.5 and 5.0 Ghz

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR

Notices and Disclaimers
See footnotes2

Performance Characteristics

Processor (CPU)
Dual Core OMAP4 @ 1GHz

Operating system (OS)
Microsoft Windows Embedded Compact CE 7.0

Data capture options
Wearable scanner RS309, RS409, RS419 and RS507 are optional accessories

Memory
512MB RAM/2GB Flash

Voice recognition
Can run voice recognition engines and text-to-speech engines for voice picking applications

Physical Characteristics

Weight
Terminal w/ standard battery: 11.3 oz. (8.4 + 2.9 oz.) / 320.3 g (238.1 + 82.2 g)
Terminal w/Extended Battery: 13 oz. (8.4 oz + 4.6 oz.)/ 369.8 g (238.1 +131.7 g)
Holder: 2.5 oz. (70.9 g) (includes straps and cushion)

Dimensions (HxWxD)
5.7 L x.3.7 W x 1.0 H in (142 x 93 x 26 mm)

Display resolution
QVGA in landscape mode (320 x 240)

Keyboard
23 key alpha-numeric for alpha entry: legacy color-coded alpha entry

Display type
Backlit color TFT, touch screen available

Audio options
Microphone, AC97 Compatible Codec to play audio (over speaker or headset), Simultaneous audio

Power

Battery
Rechargeable Li-ion battery 2, 400 mAh @ 3.7 VDC; extended rechargeable Li-Ion battery: 4, 600 mAh @ 3.7 VDC

Regulatory Specifications
EMC
EN 301 489-1, EN 301 489-17, ICES 003 Class B, EN 61000-3-2, EN 61000-3-3, CISPR 22 Class B, CISPR 24, FCC Part 15 Subpart B

RF exposure
FCC Parts 15.247, 15.407, 15.205, 15.207, 15.209, 15.203, EN 300 328, EN301 893, RSS-100, RSS-210, ARIB STD-66 & 33, ARIB STD-T71, AS/NZS 4268

Electrical safety
CSA C22.2 No. 60950-1, Certified to UL60950-1, EN60950/IEC 60950-1 plus all national deviations

User Environment

Operating temperature
-4° to 122° F (-20° to 50° C)

Storage temperature
-40° to 158° F (-40° to 70° C)

Humidity
5% to 95% non condensing

Tumble specifications
500 one-half meter tumbles at room temperature (1, 000 drops)

Drop specification
Multiple drops to concrete: 4 ft. (1.2 m) across the operating temperature range

Electrostatic discharge (ESD)
EN61000-4-2 15kV Air, 8kV contact, 8kV indirect

Environmental Sealing
IP54 category 2

Extended Details
  1. WT41N0-N2S27ER - Motorola WT41N0 Handheld Computer

    WT41N0, Wi-Fi (802.11a/b/g/n), Non-Touch Screen, 2-Color Keypad, 512MB/2GB, Windows CE 7.0, Standard Battery. Interface cables and charging cradle sold separately. Quad Charging Cradle kit (Part# CRD4001-411EES) Requires AC line cord (Part# 23844-00-00R).
    MSRP: $3,217.00 Price: $2,541.60
    In Stock - Ships Free
  2. WT41N0-T2H27ER - Motorola WT41N0 Handheld Computer

    WT41N0, Wi-Fi (802.11a/b/g/n), Touch Screen, Alphanumeric 23 keys, 2-Color Keypad, 512MB/2GB, Windows CE 7.0, Extended Battery. Interface cables and charging cradle sold separately. Quad Charging Cradle kit (Part# CRD4001-411EES) Requires AC line cord (Part# 23844-00-00R).
    MSRP: $3,362.00 Price: $2,656.10
    In Stock - Ships Free
  3. WT41N0-N2H27ER - Motorola WT41N0 Handheld Computer

    WT41N0, Wi-Fi (802.11a/b/g/n), Non-Touch Screen, 2-Color Keypad, 512MB/2GB, Windows CE 7.0, Extended Battery. Interface cables and charging cradle sold separately. Quad Charging Cradle kit (Part# CRD4001-411EES) Requires AC line cord (Part# 23844-00-00R).
    MSRP: $3,251.00 Price: $2,568.40
    In Stock - Ships Free
  4. WT41N0-T2S27ER - Motorola WT41N0 Handheld Computer

    WT41N0, Wi-Fi (802.11a/b/g/n), Touch Screen, 2-Color Keypad, 512Mb/2Gb, Windows CE 7.0, Standard Battery, Interface cables and charging cradle sold separately. Quad Charging Cradle kit (Part# CRD4001-411EES) Requires AC line cord (Part# 23844-00-00R).
    MSRP: $3,328.00 Price: $2,629.30
    In Stock - Ships Free
  5. WT41N0-T2H57ER - Motorola WT41N0 Handheld Computer

    WT41N0, Wlan 802.11a/b/g/N, Touch Screen, 2-Color Keypad, 1Gb/8Gb, Ce 7.0, Extended Battery. Interface Cables And Charging Cradle Sold Separately. Quad Charging Cradle Kit (Part# Crd4001-411Ees) Requires Ac Line Cord (Part# 23844-00-00R).
    MSRP: $3,607.00 Price: $2,870.50
    In Stock - Ships Free
