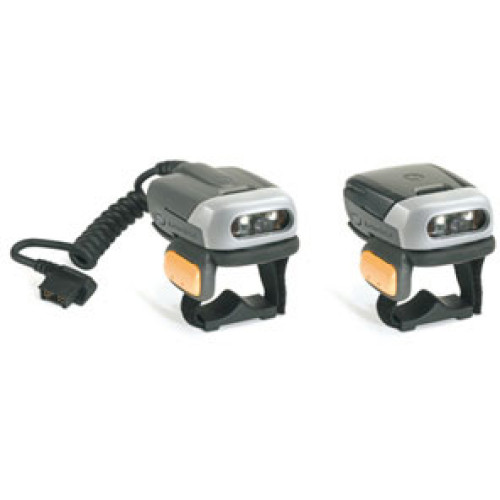

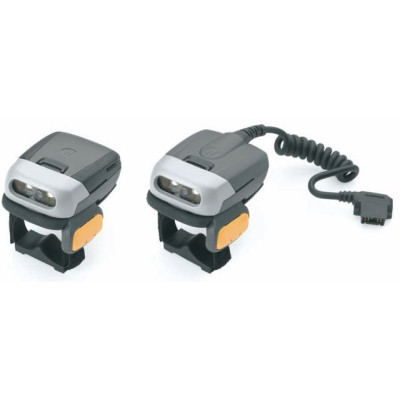

Motorola RS507 Ring Imager Barcode Scanner

Motorola RS507 Ring Imager Barcode Scanner

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning bar codes to meet government regulations for tracking and tracing of product, the Motorola RS507 Ring Imager Hands-Free Imager delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations.
  • Hands-free scanning
  • Bluetooth cordless freedom
  • Optional corded WT4000 adapter
  • Reads 1D and 2D barcodes
  • Exceptional motion tolerance
  • Bright central dot ensures quick, accurate scanning
  • Multiple field replaceable components
  • Compatible with Motorola"s Mobility Software Platform (MSP)
  • Motorola Interactive Sensor Technology (IST)
  • New manual triggering mechanism with easy swivel
  • Magnesium chassis with 6 ft. drop specification,
  • IP54 sealing,
  • Extended operating temperature range (-4 degrees to 131 degrees F/-20 degrees to 55 degrees C)
  • Dual rear LEDs and high power beeper
2D IMAGER ENGINE

Ambient light immunity Indoor: 450 ft. candles (4,845 lux)
Outdoor: 9,000 ft. candles (96,900 lux)

PERFORMANCE CHARACTERISTICS

Pitch1 ? 60? from normal

Roll2 +/- 35 degrees from vertical

Yaw3 ? 50? from normal

PHYSICAL CHARACTERISTICS

Dimensions (HxWxD) Triggerless, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Triggerless, extended battery:
1.42? (3.6 cm) H x 22.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, corded:
1.3? (3.3 cm) H x 2.1? (5.3 cm) W x 22.92? (7.4 cm) (w/o cord) L

Weight Triggerless, standard battery:
4.3 oz./121.4 g

Triggerless, extended battery:
5.2 oz./146.4 g

Trigger, standard battery:
4.8 oz./134.8 g

Trigger, corded: 5.0 oz./140.8 g

USER ENVIRONMENT

Drop specification 6 ft./1.8 m multiple drops to concrete across operating temperature range

Environmental sealing IP54

Operating temperature -4? to 131? F/-20? to 55? C

Storage temperature -40? to 158? F/-40? to 70? C excl. Battery

-40? to 140? F/-40? to 60? C incl. Battery

1 Pitch Controlled by dropping or raising the wrist
2 Controlled by rotating the wrist clockwise or counterclockwise
3 Controlled by rotating the wrist from left to right or vice versa

Extended Details
  1. Motorola RS507 Ring Imager Barcode Scanner
    Part #: RS507-DL20000STWR | SKU: MOT235511

    RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
  2. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000SNWR | SKU: MOT70704

    RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager without manual trigger for auto-triggering using the Intelligent Sensing Technology (IST) with standard capacity battery for Bluetooth interface to supported mobile computers.
  3. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000STWR | SKU: MOT70703

    RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
  4. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000ENWR | SKU: MOT70705

    RS507 Ring Imager, RS507 Hands-Free, 2D Imager Scanner, Bluetooth, No Trigger, Cordless, Extended Battery.
  5. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM20000CTWR | SKU: MOT70702

    RS507 Ring Imager, Hands-Free 2D Imager, 2-finger mounted barcode imager with manual trigger and corded adapter to the WT4090 wearable terminal. Requires extended capacity battery for the WT4090.
  6. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-DL20000CTWR | SKU: MOT100591

    RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger. Requires battery.
  7. Motorola RS507 Ring Barcode Scanner
    Part #: RS507-IM200000TWR | SKU: MOT103098

    RS507 Ring Imager, Hands Free Ring Scanner, 2D Imager, Bluetooth, Trigger. Battery and corded adapter to the WT4090 wearable terminal not included. See accessories.

7 Item(s)
