191369 191369 191369 Motorola

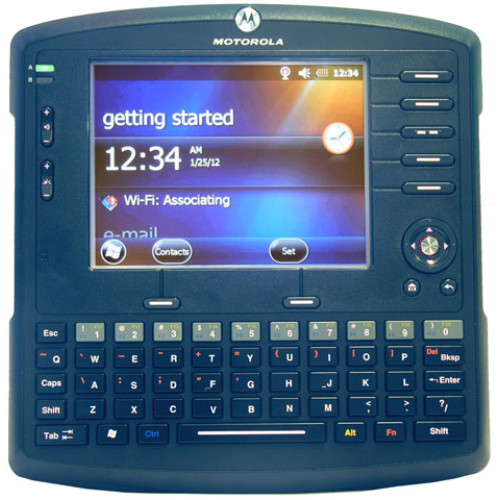

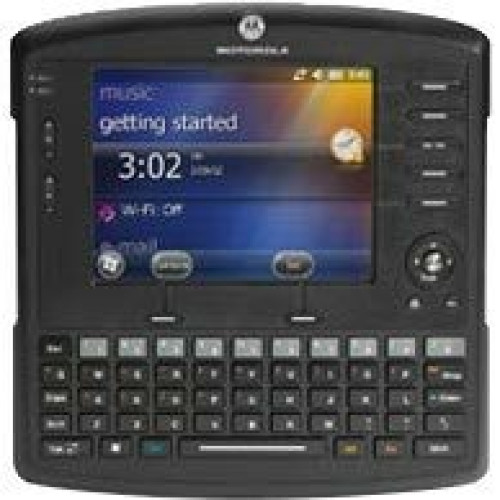

Motorola Data Terminal Motorola Data Terminal

Motorola Data Terminal
Part #: VC6090-100-240VAC | SKU: MOT191369

The Motorola VC6090 provide size and weight optimization to any tight spaced lift trucks, carts and other vehicles. With pre-loaded and pre-licensed Wavelink Terminal Emulation and with the large keys and integrated QWERTY keyboard, the VC6090 is ready for use out of the box. The Wi-Fi 802.11a/b/g radios supported with integrated antenna enable the easy connection to any available WLAN, providing cost effective wireless data and voice communications when drivers are inside the enterprise campus. The VC6090 is equipped with easy to use technology that virtually eliminates the need for training.

Motorola Data Terminal

Part Details: Zebra VC6090 Lift Truck-Mounted Mobile Computer - XScale 624 MHz - 128 MB RAM - 256 MB Flash Memory - 6.5" Color - VGA - 640 x 480 - Wi-Fi - External Antenna - IEEE 802.11a/b/g - Serial - USB - Windows Mobile 6.5 Classic
InStock
Need a different version of the Motorola VC6090 Data Terminal? View all 4 configurations

Additional Information

Manufacturer AIDC Motorola
Model Name VC6090
Motorola VC6090 Specs Motorola VC6090 Specs (pdf)

General Information

  • Product Type: Vehicle Mount Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: VC6090
  • Product Name: VC6090 Lift Truck-Mounted Mobile Computer

Technical Information

  • Connectivity Technology: Wireless

Physical Characteristics

  • Height: 9.5"
  • Width: 9.3"
  • Depth: 2"
  • Weight (Approximate): 4.85 lb

Interfaces/Ports

  • Interfaces/Ports:
    • 2 x Type A USB 1.1 USB
    • 1 x Mini Type B USB 1.1 USB
    • 1 x RJ-45 Network
    • 1 x Auxiliary Port
    • 1 x Serial
    • 2 x RS-232 Serial
    • 8 x Input
    • 8 x Output
    • 2 x Input

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • IP64
    • MIL-STD 810E
    • MIL-STD 810F
    • Electrical Safety:
    • UL
    • cUL 60950-1
    • IEC EN 60950-1
    • Product Flammability:
    • IEC UL94-VO
    • WLAN and Bluetooth:
    • FCC Part 15.247
    • 15.407
    • RSS-210
    • EN 300 328
    • EN 301 893
    • Quad Band GSM/EDGE:
    • FCC Part 22
    • Part 24
    • RSS-GSM/EDGE: 132
    • RSS-133
    • EN301 511
    • EN301 908
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • RSS-102
    • EN 50360
    • EMI/RFI:
    • FCC Part 15
    • Class B
    • ICES 003 Class B
    • EN55022
    • EN 301 489-1
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-19
    • EN 301 489-24

Network & Communication

  • Antenna Form Factor: External
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
    • WPA2
    • WEP (40 or 128 bit)
    • TKIP
    • TLS
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS (CHAP)
    • TTLS-MD5
    • TTLS-PAP
    • PEAP-TLS
    • PEAP (MS-CHAP v2)
    • AES
    • LEAP
  • Wireless Technology: Wi-Fi

Display & Graphics

  • Touchscreen: Yes
  • Display Color: Color
  • Screen Size: 6.5"
  • Graphics Modes: VGA
  • Display Resolution: 640 x 480

Environmental Conditions

  • Electrostatic Discharge (ESD):
    • +/-15 kV AC Air Discharge
    • +/-8 kV AC Direct Discharge

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 128 MB

Processor & Chipset

  • Processor Speed: 624 MHz
  • Processor Type: XScale

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.5 Classic
Extended Details

Recommended Accessories for Model: Motorola Data Terminal

  • Zebra Power Device
    Part #: 50-16000-221R | SKU: ZEB26272

    Power Device - Zebra - AC Line Cord - Grounded - 6 Feet Or 1.8 Meters - 3-Prong - USA Nema 5-15P Plug - Associated Countries - Canada - Mexico - United States.
    $26.47
    See Price in Cart (Why?)
    In Stock

  • Motorola Accessory
    Part #: 3087568V83 | SKU: MOT57116

    RF Cable For WLAN Antenna For VC609x

  • Motorola Products
    Part #: 3071815Y15-01R | SKU: MOT191371

    VC6090 Accessories, VC6090 CABLE, 9-PIN DEUTSCH

  • Motorola Accessory
    Part #: 3087568V84 | SKU: MOT57117

    RF Cable For Wwan Antenna For VC609x

  • Zebra Power Device
    Part #: 30013095001 | SKU: ZEB223735

    Power Device - Zebra - Power Cable - VC60 To PWRS-14000-251R DC/DC Converter
View All Options

Recommended Warranties for Model: Motorola Data Terminal

  • Zebra Service Contract
    Part #: Z1AE-VC60XX-3C00 | SKU: ZEB464093

    3 Year Zebra OneCare Essential. Includes Comprehensive Coverage

  • Zebra Service Contract
    Part #: Z1AS-VC60XX-3C03 | SKU: ZEB464349

    Zebra OneCare Select with Comprehensive Coverage - 3 Year Extended Service - Service - Service Depot - Exchange - Physical, Electronic Service
View All Options
