253391 253391 253391 Motorola

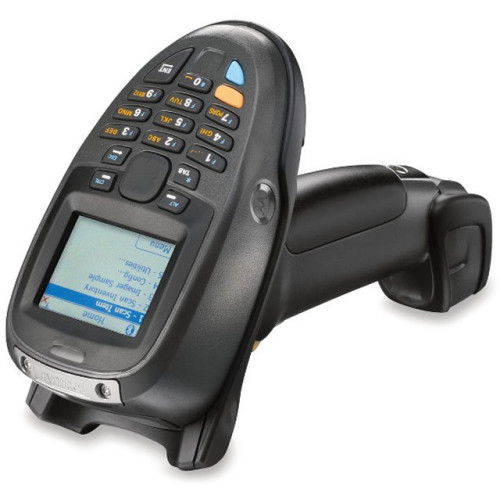

Motorola MT2090 Handheld Mobile Computer
Part #: MT2090-DP4D62170WR | SKU: MOT253391

The Motorola MT2090 represents another industry first from Motorola - the marriage of the simplicity of a scanner with the brainpower of a mobile computer and an ultra-ergonomic gun-style form factor.

Motorola MT2090 Handheld Mobile Computer

Part Details: MT2090, SCANNER ONLY. 2D Imager, Direct Park Mark (DPM) Capable, WiFi/Bluetooth, Windows CE 5.0, Numeric Keypad, Color Screen. Use either RS-232 cable (Part# CBA-R12-S07PAR) or USB cable (Part# CBA-U12-S07PAR) plus 12v PS (Part# PWRS-14000-148R) for tethered mode for this configuration. Interface cables and charging cradles sold separately. Single slot Bluetooth charging cradle (Part# STB2078-C10007WR) requires power supply (Part# PWR-BGA12V50W0WW) and AC Line cord (Part# 23844-00-00R). Quad charging cradle kit (Part# KT-STB2000-C4US).
InStock

Additional Information

Manufacturer Motorola
Model Name MT2090
Product Condition New

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)

General Information

  • Product Type: Handheld Terminal
  • Product Series: MT2000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MT2090
  • Product Name: MT2090 Handheld Terminal

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 5"
  • Weight (Approximate): 13.50 oz

Interfaces/Ports

  • USB: Yes
  • Serial: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP54
    • FIPS 140-2
    • Electrical Safety:
    • Certified to UL60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • EMI/RFI:
    • FCC Part 2 (SAR)
    • FCC Part 15 Subpart B - Class B
    • RSS210
    • EN 301-489-1, 489-17
    • Laser Safety:
    • IEC Class 2
    • FDA Class II in Accordance with IEC60825-1
    • EN60825-1

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 312 MHz
  • Processor Type: XScale PXA270

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 320 x 240

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 21

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Battery Information

  • Battery Capacity: 2400 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 5.0

Warranty

  • Limited Warranty: 3 Year
Extended Details

Recommended Accessories for Model: Motorola MT2090 Handheld Mobile Computer

  • Symbol MT2000 Series General Software
    Part #: 203213030 | SKU: SYM208643

    MCL-Link, Link for Symbol MT2000 4 DEVICE
    MSRP: $395.00 Price: $350.84
  • Taylor Made Cases Handheld Mobile Computer Accessory
    Part #: TM-HUMT2090-KT | SKU: TAY406297

    Motorola MT2090/PM8300 pouch holster with side slide clip, elastic side pocket & included TM-B01 belt
    MSRP: $57.75 Price: $48.61
  • AirTrack Battery
    Part #: KT-BTYMT-01R-COMPATIBLE | SKU: AIR541820

    Spare Battery, 2600 mAh. Compatible with MT2070 and MT2090. Comparable to part# KT-BTYMT-01R.
    MSRP: $41.00 Price: $31.50
    In Stock
  • AirTrack Battery
    Part #: 82-108066-01-COMPATIBLE | SKU: AIR541821

    Spare Battery, 2600 mAh. Compatible with MT2070 and MT2090. Comparable to part# 82-108066-01.
    MSRP: $41.00 Price: $31.50
    In Stock
  • Motorola Cradle/Charger
    Part #: CRD4000-111UES | SKU: MOT177863

    Universal Charger-Cradle, Single-Slot Cradle
