207721 207721 207721 Motorola

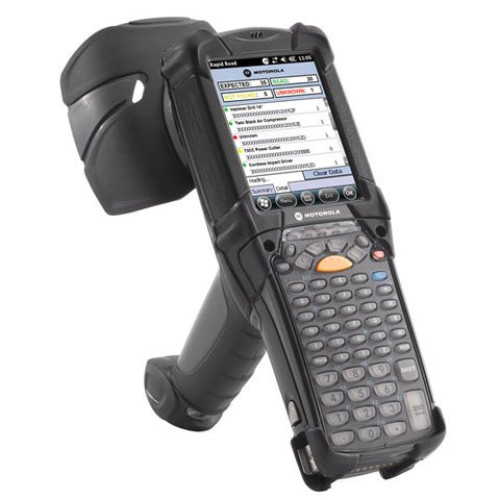

Motorola RFID Reader Motorola RFID Reader

Motorola RFID Reader
Part #: MC919Z-GJ0SWEQZ2EU | SKU: MOT207721

The MC9190-Z is a high-performance, highly rugged RFID handheld reader targeted for use in very demanding applications and environments. Designed for medium- to long-range RFID read applications, the MC9190-Z delivers best-in-class RFID read range and accuracy in an ergonomic, integrated RFID and bar code device. Its rugged form factor excels in virtually any environment, indoors or outdoors.

Motorola RFID Reader

Part Details: MC9190-Z, RFID handheld, 802.11 a/b/g, Extended Range (Lorax), Color, 256MB/1GB, 53 Key, Windows Mobile 6.5, Bluetooth, ETSI 302-208, RoHS. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part # CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).
InStock
Need a different version of the Motorola MC9190-Z RFID Reader? View all 7 configurations

Additional Information

Manufacturer AIDC Motorola
Model Name MC9190-Z
Style Handheld
Motorola MC9190-Z Specs Motorola MC9190-Z Specs (pdf)

Technical Information

  • Scanner Range: Extended Range
  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 70.87" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported: 1D

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-Z
  • Product Name: MC9190-Z Handheld RFID Reader

Physical Characteristics

  • Height: 7.7"
  • Width: 4.7"
  • Length: 10.8"
  • Weight (Approximate): 2.15 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 Enterprise
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • FIPS 140-2
    • IPv6

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5
Extended Details
