177857 177857 177857 Motorola

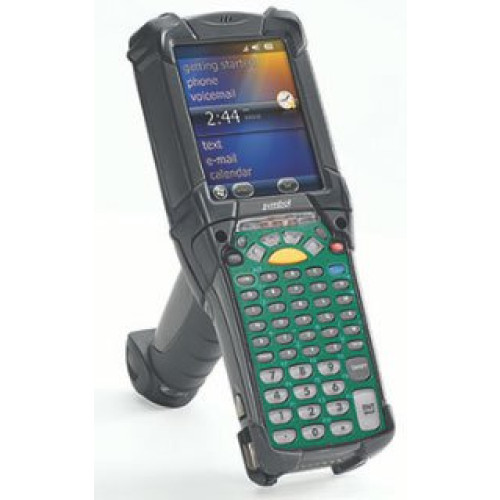

Motorola MC9190-G Mobile Computer
Part #: MC9190-G30SWJYA6WR | SKU: MOT177857

When you need to scan bar codes and collect data in the harshest of environments, the MC9190-G is ready for the job. Whether your workers are managing inventory in industrial warehouses, searching for materials in subzero temperatures out in the yard or repairing equipment on a military base in a hot sandy desert, the MC9190-G helps get the job done right and fast.

Motorola MC9190-G Mobile Computer

Part Details: MC9190-G, Wi-Fi (802.11a/b/g), 2D Imager, Gun Grip, Windows CE 6.0, 256MB RAM/1GB ROM, 53-5250 keypad, Bluetooth. Interface cables and charging cradle sold separately. Single slot charging cradle kit (Part# CRD9000-110SES). Quad slot charging cradle kit (Part # CRD9101-411CES) requires AC line cord (Part# 23844-00-00R).
InStock

Additional Information

Keypad 53 Keys
Manufacturer Motorola
Model Name MC9190-G
Network Connectivity Bluetooth, Wi-Fi 2: 802.11a, Wi-Fi 3: 802.11g
Operating System Windows CE 6.0
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Gun

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
  • Barcode Symbology Supported:
    • 1D
    • 2D

General Information

  • Product Type: Handheld Terminal
  • Product Series: MC9000
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9190-G
  • Product Name: MC9190-G Handheld Terminal

Physical Characteristics

  • Height: 9.1"
  • Width: 3.6"
  • Depth: 7.6"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IP64
    • WiFi Certified
    • MIL-STD 810G
    • Electrical Safety:
    • Certified to UL / cUL 60950-1
    • CSA C22.2 No. 60950-1
    • EN60950-1
    • IEC60950-1
    • WLAN and Bluetooth:
    • FCC Part 15.247, 15.407
    • RF Exposure:
    • FCC Part 2
    • FCC OET Bulletin 65 Supplement C
    • EMI/RFI:
    • FCC Part 15
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
    • LED Safety:
    • IEC/EN60825-1
    • IEC/EN62471

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • WPA2/AES
    • 802.1x
    • EAP-TLS
    • TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • CCX v4
    • FIPS 140-2
    • IPv6
    • WPA2 Enterprise

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • MultiMediaCard (MMC)
    • Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year

Keyboard/Keypad

  • Number of Keys: 53
Extended Details

Recommended Accessories for Model: Motorola MC9190-G Mobile Computer

  • Zebra Accessory
    Part #: 25-64396-01R | SKU: ZEB26247

    USB Cable (A to B) for the cradle to the host system
    Price: $22.54
    In Stock
  • Zebra Accessory
    Part #: 11-67218-04R | SKU: ZEB26188

    Protective Boot for MC90XX-G Only.
    Price: $16.27
    In Stock
  • Zebra Power Device
    Part #: 50-16000-221R | SKU: ZEB26272

    Power Device - Zebra - AC Line Cord - Grounded - 6 Feet Or 1.8 Meters - 3-Prong - USA Nema 5-15P Plug - Associated Countries - Canada - Mexico - United States.
    Price: $22.56
    In Stock
  • Zebra Power Device
    Part #: 50-16000-182R | SKU: ZEB21798

    AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
    Price: $13.92
    In Stock
  • Zebra Power Device
    Part #: 23844-00-00R | SKU: ZEB26223

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $18.51
    In Stock

Recommended Warranties for Model: Motorola MC9190-G Mobile Computer

  • Zebra Service Contract
    Part #: Z1BE-MC919G-1000 | SKU: ZEB463623

    Zebra OneCare for Enterprise Essential - 1 Year Extended Service - Service - 9 x 5 x 3 Business Day - Carry-in - Maintenance - Parts & Labor - Physical, Electronic
    MSRP: $239.54 Price: $212.93
    In Stock
  • Zebra Service Contract
    Part #: Z1RE-MC919G-2C00 | SKU: ZEB464014

    Zebra OneCare Essential with Comprehensive Coverage - 2 Year Renewal - Warranty - 8 x 5 x 3 Day - Maintenance - Labor - Physical, Electronic
    MSRP: $317.88 Price: $282.57
    In Stock
  • Zebra Service Contract
    Part #: Z1AE-MC919G-3C00 | SKU: ZEB464015

    Zebra OneCare Essential with Comprehensive Coverage - 3 Year - Warranty - 8 x 5 x 3 Day - Maintenance - Labor - Physical, Electronic
    MSRP: $457.05 Price: $406.28
    In Stock
  • Zebra Service Contract
    Part #: Z1RE-MC919G-1C00 | SKU: ZEB464013

    Zebra OneCare for Enterprise Essential with Comprehensive coverage - 1 Year Extended Service (Renewal) - Service - 9 x 5 x 3 Business Day - Carry-in - Maintenance - Parts & Labor - Physical, Electronic
    In Stock
  • Motorola MC9190-G Service Contract
    Part #: SSE-MC9190G-50 | SKU: MOT369578

    Service Contract - 5 year, Zebra OneCare Essential. Includes Comprehensive Coverage. Does not include coverage for cradles.
