Additional Information
| Manufacturer AIDC | Motorola |
|---|---|
| Model Name | MC9190-G |

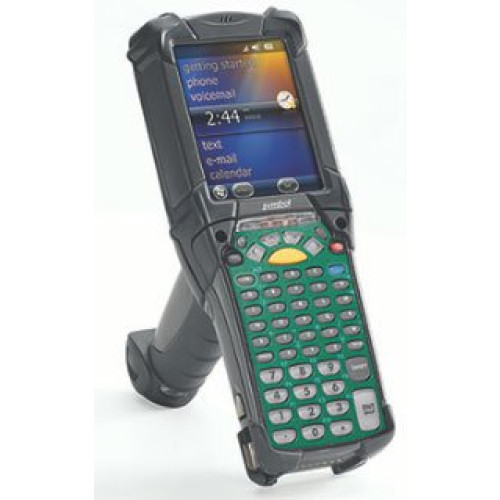

Motorola MC9190-G Specs
Technical Information
- Scanner Range: High Density
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Indirect Discharge
- +/-8 kV DC Direct Discharge
- Drop Specification: 72" To Concrete
- Barcode Symbology Supported: 2D
General Information
- Product Type: Handheld Terminal
- Product Series: MC9000
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MC9190-G
- Product Name: MC9190-G Handheld Terminal
Physical Characteristics
- Height: 9.1"
- Width: 3.6"
- Depth: 7.6"
- Weight (Approximate): 1.69 lb
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Package Contents:
- MC9190-G Handheld Terminal
- Lithium-Ion Battery
- MC9190-G Handheld Terminal
- Lithium-Ion Battery
- Certifications & Standards:
- MIL-STD 810G
- IP64
- Wi-Fi
- CCX v4
- FIPS 140-2
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950-1/IEC60950-1
- WLAN and Bluetooth USA:
- FCC Part 15.247, 15.407
- RF Exposure USA:
- FCC Part 2
- FCC OET Bulletin 65
- Supplement C
- EMI/RFI USA:
- FCC Part 15
- Laser Safety:
- IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1
- LED Safety:
- IEC/EN60825-1
- IEC/EN62471
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Antenna Form Factor: Internal
- Wireless LAN Standard: IEEE 802.11a/b/g
- Wireless Security:
- WPA2 Enterprise
- 802.1x
- EAP-TLS
- TTLS(CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5)
- PEAP (TLS, MSCHAPv2, EAP-GTC)
- LEAP
- EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
- WPA2/AES
- IPv6
Memory
- Flash Memory: 1 GB
- Standard Memory: 256 MB
- Memory Card Slot: Yes
- Memory Card Supported:
- Secure Digital (SD) Card
- MultiMediaCard (MMC)
Display & Graphics
- Display Screen Type: LCD
- Screen Mode: VGA
- Screen Size: 3.7"
- Display Color: Color
Battery Information
- Battery Capacity: 2200 mAh
- Battery Included: Yes
- Battery Chemistry: Lithium Ion (Li-Ion)
Processor & Chipset
- Processor Manufacturer: Marvell
- Processor Speed: 806 MHz
- Processor Type: XScale
Software
- Operating System: Windows Mobile 6.0
Keyboard/Keypad
- Number of Keys: 53
Warranty
- Limited Warranty: 1 Year
Touchscreen Information
- Touchscreen: Yes
