86344 86344 86344 Motorola

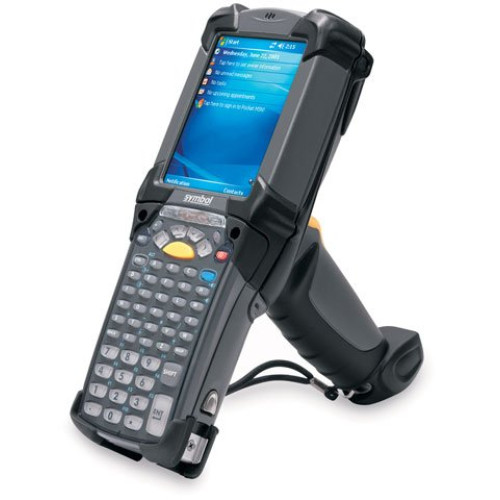

Motorola RFID Reader

Motorola RFID Reader
Part #: MC9090-GU0HJEQR7US | SKU: MOT86344

The MC9000-G Series from Symbol Technologies is an elegant, ruggedized mobile computer for use in bar code scanning-intensive applications throughout your enterprise. The MC9000-G gives your organization real-time access to mission-critical information from key points in your supply chain.

Motorola RFID Reader

Part Details: MC9090-G RFID Handheld, UHF RFID, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.1, 64MB RAM/128MB ROM, 53 key, Bluetooth.
InStock
Need a different version of the Motorola MC9090-G Mobile Computer? View all 84 configurations

Additional Information

Manufacturer AIDC Motorola
Model Name MC9090-G
Style Handheld
Motorola MC9090-G Specs Motorola MC9090-G Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9090-G
  • Product Name: MC9090-G Handheld Terminal

Physical Characteristics

  • Height: 10.8"
  • Width: 4.7"
  • Depth: 7.7"

Other

  • Certifications & Standards:
    • IP64
    • Electrical Safety:
    • UL60950-1
    • CSA C22.2 No.60950-1
    • IEC 60950-1
    • EMI/RFI Radio Versions:
    • US:
    • FCC Part 2 (SAR)
    • FCC Part 15
    • RSS210
    • Europe:
    • ETSI EN 300 220
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

RFID

  • Maximum Read Distance: 10 ft
  • Maximum Write Distance: 23.98"
  • Maximum Coverage Angle: 70°
  • Maximum Operating Frequency: 928 MHz
  • Minimum Read Distance: 2.40"
  • Minimum Write Distance: 11.81"
  • Minimum Operating Frequency: 902 MHz

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • MultiMediaCard (MMC)

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Display Color: Color

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale PXA270

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Number of Keys: 53

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.1
Extended Details

Recommended Accessories for Model: Motorola RFID Reader

  • Zebra Power Device
    Part #: 23844-00-00R | SKU: ZEB26223

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $20.56
    In Stock

  • Zebra Cables, Connectors, and Adapters
    Part #: 25-64396-01R | SKU: ZEB26247

    USB Cable (A to B) for the cradle to the host system
    $26.47
    See Price in Cart (Why?)
    In Stock

  • Zebra Power Device
    Part #: 50-16000-182R | SKU: ZEB21798

    AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
    Price: $14.84
    See Price in Cart (Why?)
    In Stock

  • Zebra Carrying and Protective Accessories
    Part #: 11-08062-02R | SKU: ZEB70382

    Universal rugged belt for hip holster.
    $52.05
    See Price in Cart (Why?)
    In Stock

  • Zebra Docks and Cradles
    Part #: CRD9000-1001SR | SKU: ZEB21686

    Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered.
    $366.18
    See Price in Cart (Why?)
    In Stock
View All Options

Recommended Warranties for Model: Motorola RFID Reader

  • Zebra Service Contract
    Part #: SSE-MC9090G-10-R | SKU: ZEB369570

    Zebra OneCare Essential with Comprehensive Coverage - 1 Year Renewal - Service - Maintenance - Parts & Labor - Physical, Electronic Service
View All Options
