91622 91622 91622 Motorola
Motorola Mobile Computer Motorola Mobile Computer

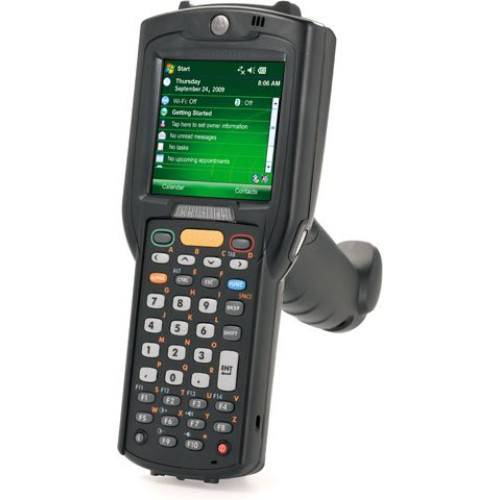

Motorola Mobile Computer
Part #: MC3190-GL4H24E0A | SKU: MOT91622

Building on the successful MC3000, the Motorola MC3100 Series brings cost-effective mobility and user comfort to key-based applications within the four walls. The rugged and ergonomic MC3100 offers advanced computing power and data capture capabilities, enhanced security and enterprise class motion sensing capabilities.

Motorola Mobile Computer

Part Details: MC3190-G, Wi-Fi (802.11a/b/g), Gun Grip, 1D Laser Scanner, 48 key Alphanumeric Keypad, High Capacity Battery, Bluetooth, Full Audio, Color Touch Display, Windows Mobile 6.5 Classic, 256MB RAM/1GB ROM, English. Interface cables and charging cradle sold separately. For the full kit see (Part# MC3190-GL4H24E0A-KIT).
InStock
Need a different version of the Motorola MC3190 Mobile Computer? View all 74 configurations

Additional Information

Display Resolution 320 x 320
IP Rating IP54
Interface Options Bluetooth, Wi-Fi.
Keypad 48
Manufacturer AIDC Motorola
Model Name MC3190
Operating System Windows Mobile 6.5
Operating Temperature -4 F - 122 F (-20 C - 50 C)
Processor Marvell PXA270 (624 MHz)
RAM Memory 256 MB
Scanner Capability 1D
Scanner Type Laser
Style Gun
Motorola MC3190 Specs Motorola MC3190 Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification:
    • 48" To Concrete
    • 60" To Concrete73.4°F (23°C)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC3100
  • Product Name: MC3190 Handheld Terminal

Physical Characteristics

  • Height: 7.5"
  • Width: 3.2"
  • Depth: 6.5"
  • Weight (Approximate): 1.15 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Wireless Security:
    • WPA2 (Personal or Enterprise)
    • 802.1x
    • EAP-TLS
    • TTLS (CHAP , MS-CHAP, MS-CHAPv2, PAP or MD5)
    • PEAP (TLS, MSCHAPv2, EAP-GTC)
    • LEAP
    • EAP-FAST (TLS, MS-CHAPv2, EAP-GTC)
    • CCXv4 certifed
    • Support for IPv6
    • FIPS140-2 Certifed

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 3"
  • Display Color: Color
  • Screen Resolution: 320 x 320

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5 Classic

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
Extended Details
