106631 106631 106631 Motorola

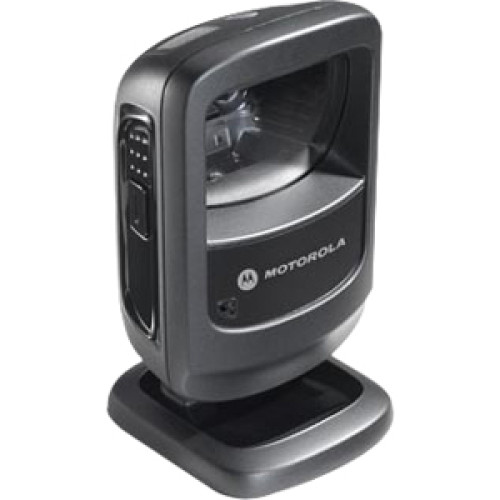

Motorola Barcode Scanner
Part #: DS9208-SR00004NNWW | SKU: MOT106631

The Motorola DS9208 hands-free omnidirectional scanner can capture not only bar codes printed on paper labels or displayed on the screen of a mobile phone, retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. You get industry leading scanning speed on every bar code; true point-and-shoot first-time scanning simplicity on even damaged and poorly printed bar codes and a durable design for all day everyday reliability, all at an affordable price. The DS9208 is built to last, and toughness tests prove it. The DS9208 delivers outstanding performance, even after exposure to heat, cold, dust, a spilled beverage and 2,000 consecutive drops.

Motorola Barcode Scanner

Part Details: Zebra DS9208 Desktop Bar Code Reader - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - IBM 46XX, Keyboard Wedge, Serial, USB - Black
InStock

Additional Information

Color Black
Connection USB
Connectivity Corded
Form Factor Presentation
Included Cables Scanner Only - No Cable
Manufacturer Motorola
Model Name DS9208
Ruggedness General Purpose
Scanner Capability 2D
Scanner Type CCD, Imager, LED Beam

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
    • ISBN (Bookland)
    • ISSN (Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 32 (Italian Pharmacode)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
    • MSI Plessey
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TL C-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
    • 1-D:
    • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
    • ISBN (Bookland)
    • ISSN (Coupon Code)
    • Code 39 (Standard, Full ASCII, Trioptic)
    • Code 32 (Italian Pharmacode)
    • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
    • Code 93
    • Codabar/NW7
    • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
    • MSI Plessey
    • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
    • PDF417 (and variants):
    • PDF417 (Standard, Macro)
    • MicroPDF417 (Standard, Macro)
    • Composite Codes (CC-A, CC-B, CC-C)
    • 2-D:
    • TL C-39
    • Aztec (Standard, Inverse)
    • MaxiCode
    • DataMatrix/ECC 200 (Standard, Inverse)
    • QR Code (Standard, Inverse, Micro)
    • Postal:
    • U.S. Postnet and Planet
    • U.K. Post
    • Japan Post
    • Australian Post
    • Netherlands KIX Code
    • Royal Mail 4 State Customer
    • UPU FICS 4 State Postal
    • USPS 4CB
  • Depth of Field:
    • 0 mil - 4.50"@5 mil - Code 39
    • 0 mil - 8.50"@10 mil - UPC/EAN (80%)
    • 0 mil - 10.50"@13 mil - UPC/EAN (100%)
    • 0 mil - 3.80"@6.60 mil - PDF417
    • 0 mil - 4.70"@10 mil - Datamatrix

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: DS9208
  • Product Name: DS9208 Desktop Barcode Reader

Physical Characteristics

  • Height: 5.5"
  • Width: 3.2"
  • Depth: 3.2"
  • Color: Black
  • Weight (Approximate): 9.50 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Keyboard Wedge
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year
