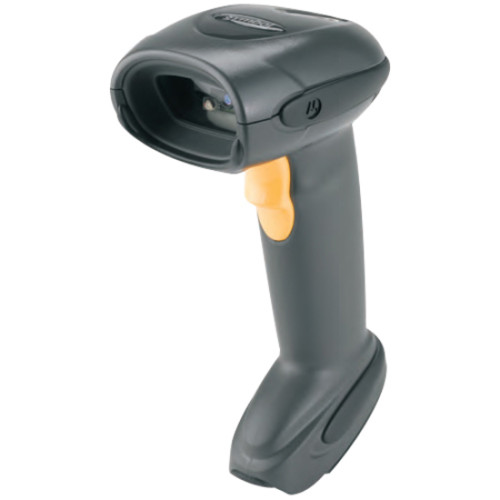

Motorola Barcode Scanner
Part #: DS6878-HD20007WR | SKU: MOT92691

The Motorola DS6878-DL cordless 2D imager offers the complete data capture functionality required to streamline and error-proof everyday processes. Comfortable and easy-to-use, this single device can capture all common barcodes (1D, 2D and PDF417) on labels as well as on mobile phone displays. The on-board Driver's License parsing agent enables instant decoding of barcoded information on driver's licenses to support a wide variety of value-added applications. The optional hands-free presentation cradle enables additional advanced capabilities: signature, document and photo capture; optical character recognition (OCR) to capture text in documents; and MICR to capture numeric information on the bottom of checks.

Motorola Barcode Scanner

Part Details: DS6878, SCANNER ONLY. Cordless 2D Imager with HD (High-Density) Focus - for reading small barcodes at close distance. Requires Radio/Charging Cradle (CR0078-SC10007WR) and USB Cable (CBA-U01-S07ZAR). Power supply Optional. Color: Black.

InStock

Need a different version of the Motorola DS6878-DL Barcode Scanner? View all 4 configurations

Specs & Info

Additional Information

Connectivity	Cordless
Form Factor	Handheld
Manufacturer AIDC	Motorola
Model Name	DS6878-DL
Scanner Capability	2D
Scanner Type	Imager

Motorola DS6878-DL Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Wireless
Scanning Distance: 6.80"
Image Sensor: Imager
Barcode Symbology Supported:
- Code 93
- Matrix 2 of 5
- Code 39
- UCC/EAN-128
- ISBT 128
- NW-7
- IATA
- ISBN
- GS1 DataBar
- QR code
- MaxiCode
- Aztec code
- Bookland
- Code 32
- Code 39 Full ASCII
- EAN/JAN-8
- EAN/JAN-13
- UPC-A
- UPC-E
- Discrete 2 of 5
- MicroPDF417
- Codabar
- Code 128
- Code 11
- UPC
- Interleaved 2 of 5
- Postnet
- PDF417
- MSI-Plessey
- Data Matrix
- PLANET
- TLC39
- Australian Post
- Japanese Post
- Kix (Netherlands) Post
- UPC-E1
- MacroPDF417
- ISSN
- UK Post
- Royal Mail
- Micro QR code
- 4-State postal code
- CC-A
- CC-B
- CC-C
- GS1 DataBar Expanded
- GS1 DataBar Limited
- Code 93
- Matrix 2 of 5
- Code 39
- UCC/EAN-128
- ISBT 128
- NW-7
- IATA
- ISBN
- GS1 DataBar
- QR code
- MaxiCode
- Aztec code
- Bookland
- Code 32
- Code 39 Full ASCII
- EAN/JAN-8
- EAN/JAN-13
- UPC-A
- UPC-E
- Discrete 2 of 5
- MicroPDF417
- Codabar
- Code 128
- Code 11
- UPC
- Interleaved 2 of 5
- Postnet
- PDF417
- MSI-Plessey
- Data Matrix
- PLANET
- TLC39
- Australian Post
- Japanese Post
- Kix (Netherlands) Post
- UPC-E1
- MacroPDF417
- ISSN
- UK Post
- Royal Mail
- Micro QR code
- 4-State postal code
- CC-A
- CC-B
- CC-C
- GS1 DataBar Expanded
- GS1 DataBar Limited
Maximum Scan Resolution: 3 mil

General Information

Product Type: Handheld Barcode Scanner
Product Series: DS6800
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS6878-HD
Product Name: DS6878-HD Handheld Barcode Scanner

Physical Characteristics

Height: 3.8"
Width: 2.7"
Depth: 7.3"
Color: Twilight Black
Weight (Approximate): 8.40 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Network & Communication

Bluetooth: Yes

Warranty

Limited Warranty: 3 Year
