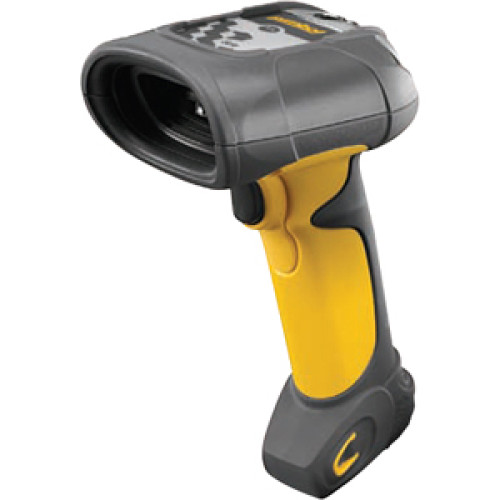

Motorola Barcode Scanner
Part #: DS3508-SRAU0200ZR | SKU: MOT91697

The Motorola DS3508 Series of rugged, corded digital scanners bring comprehensive, high performance data capture to harsh industrial environments to improve business efficiency.

Motorola Barcode Scanner

Part Details: DS3508, USB Kit, 2D Imager, Rugged Handheld Corded Scanner. Includes USB cable.

InStock

Need a different version of the Motorola DS3508 Barcode Scanner? View all 8 configurations

Specs & Info

Additional Information

Color	Yellow
Connectivity	Corded
Form Factor	Handheld
Included Cables	USB
Interface Options	USB
Manufacturer	Motorola
Model Name	DS3508
Scanner Capability	2D
Scanner Type	CCD, Imager

Motorola DS3508 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: Imager
Barcode Symbology Supported:
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 and Variants:
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39, Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard,Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4State Postal
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals
- ISBN (Bookland)
- ISSN
- Coupon Code
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard,Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 and Variants:
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39, Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard,Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4State Postal

General Information

Product Type: Handheld Barcode Scanner
Product Series: DS3508
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS3508-SR
Product Name: DS3508-SR Handheld Barcode Reader

Physical Characteristics

Height: 7.3"
Width: 4.8"
Depth: 2.9"
Weight (Approximate): 11.85 oz

Interfaces/Ports

Host Interface: USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- DS3508-SR Handheld Barcode Reader
- USB Cable
- DS3508-SR Handheld Barcode Reader
- USB Cable

Warranty

Limited Warranty: 3 Year
