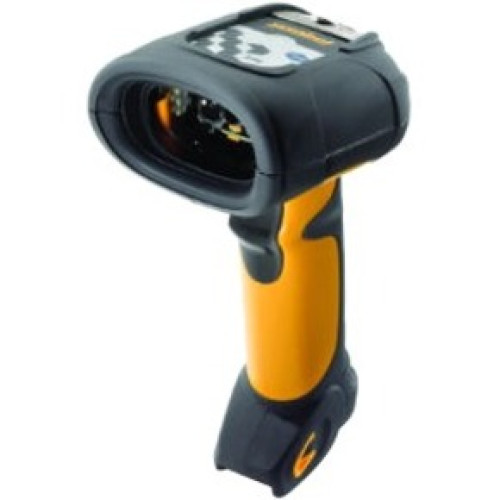

Motorola Barcode Scanner
Part #: DS3508-DP20005R | SKU: MOT92688

The Motorola DS3508 Series of rugged, corded digital scanners bring comprehensive, high performance data capture to harsh industrial environments to improve business efficiency.

Motorola Barcode Scanner

Part Details: DS3508 DPM, SCANNER ONLY. Direct Part Mark (DPM) Imager, Rugged Handheld Corded Scanner. Does not include necessary cables. See accessories.

InStock

Need a different version of the Motorola DS3508 Barcode Scanner? View all 8 configurations

Specs & Info

Additional Information

Color	Yellow
Connectivity	Corded
Form Factor	Handheld
Included Cables	Scanner Only - No Cable
Interface Options	USB
Manufacturer AIDC	Motorola
Model Name	DS3508
Scanner Capability	2D
Scanner Type	CCD, Imager

Motorola DS3508 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: CMOS
Barcode Symbology Supported:
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 Plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (And variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4State Postal
- DPM Marks (DPM Unit Only):
- Datamatrix marks applied by dot -peening.All supported barcode types listed above marked by laser etching, chemical etching, ink marking, molding, stamping or casting methods on surfaces such as including metal, plastic, rubber or glass
- IUID Support:
- Supports IUID parsing. The ability to read and separate IUID fields per application requirements
- 1D Codes:
- UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 Plus Supplementals, ISBN (Bookland), ISSN, Coupon Code)
- Code 39 (Standard, Full ASCII, Trioptic)
- Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
- Code 93
- Codabar/NW7
- Code 11 (Standard, Matrix 2 of 5)
- MSI Plessey
- I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
- GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
- Base 32 (Italian Pharmacode)
- PDF417 (And variants):
- PDF417 (Standard, Macro)
- MicroPDF417 (Standard, Macro)
- Composite Codes (CC-A, CC-B, CC-C)
- 2D Codes:
- TLC-39
- Aztec (Standard, Inverse)
- MaxiCode
- DataMatrix/ECC 200 (Standard, Inverse)
- QR Code (Standard, Inverse, Micro)
- Postal Codes:
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japan Postal
- Australian Postal
- Dutch Postal
- 4State Postal
- DPM Marks (DPM Unit Only):
- Datamatrix marks applied by dot -peening.All supported barcode types listed above marked by laser etching, chemical etching, ink marking, molding, stamping or casting methods on surfaces such as including metal, plastic, rubber or glass
- IUID Support:
- Supports IUID parsing. The ability to read and separate IUID fields per application requirements
Depth of Field:
- 1.10" - 1.60"@3 mil - Code 39
- 3.50"@4 mil - Code 39
- 4.20"@5 mil - Code 39
- 5.40"@7.50 mil - Code 39
- 1.10" - 9.20"@20 mil - Code 39
- 0.80" - 6.20"@13 mil - 100% UPC
- 3.70"@6.67 mil - PDF417
- 4.50"@10 mil - PDF417
- 3.20" - 5.60"@15 mil - PDF417
- 1" - 2.10"@4 mil - Data Matrix
- 0.40" - 2.70"@5 mil - Data Matrix
- 3.50"@7.50 mil - Data Matrix
- 4.40"@10 mil - Data Matrix
- 1.10" - 1.40"@4 mil - QR Code
- 0.50" - 2.20"@5 mil - QR Code
- 4"@10 mil - QR Code

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS3508
Product Name: Symbol DS3508-DP Handheld Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 7.3"
Width: 4.8"
Depth: 2.9"
Color:
- Yellow
- Black
Weight (Approximate): 11.85 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: China RoHS
Package Contents:
- Symbol DS3508-DP Handheld Barcode Reader
- Holster (Mounts To Pants Or Belt)
- Intelli-Stand (Hands-Free Scanning)
- Tool Balancer Pulley (Tethered)
- Symbol DS3508-DP Handheld Barcode Reader
- Holster (Mounts To Pants Or Belt)
- Intelli-Stand (Hands-Free Scanning)
- Tool Balancer Pulley (Tethered)

Warranty

Limited Warranty: 3 Year
