241532 241532 241532 Motorola
Motorola Wireless Access Points Motorola Wireless Access Points Motorola Wireless Access Points

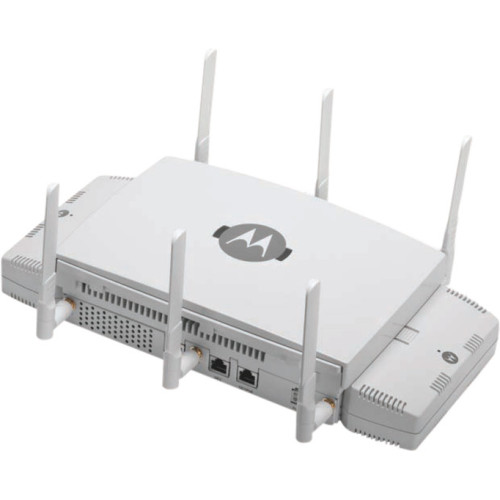

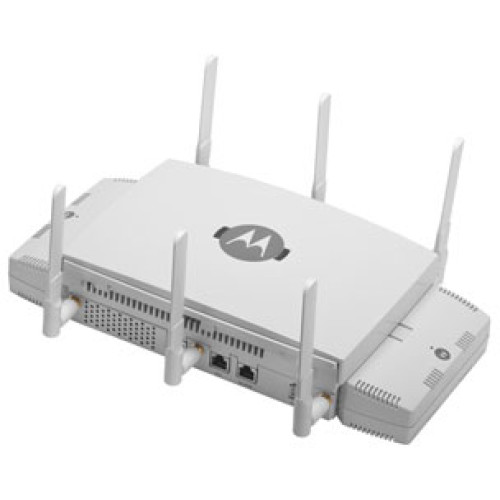

Motorola Wireless Access Points
Part #: AP-8232-67040-US | SKU: MOT241532

The AP-8232 builds upon the AP-8132 to provid high-speed network access for customers and staff with its modular design that enables you to more efficiently deploy applications where they are most needed. By leveraging your wireless network, the AP-8232 lets you deploy these applications without the time, effort and cost of having to install additional hardware and cabling.

Motorola Wireless Access Points

Part Details: Zebra AP 8232 IEEE 802.11ac 1.27 Gbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Wall Mountable, Ceiling Mountable
InStock
Need a different version of the Motorola AP 8232 Wireless Access Points? View all 2 configurations

Additional Information

Manufacturer AIDC Motorola
Model Name AP 8232
Wireless Type Wi-Fi, Wi-Fi 5: 802.11ac
Motorola AP 8232 Specs Motorola AP 8232 Specs (pdf)

Technical Information

  • Wireless LAN Standard: IEEE 802.11ac
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Wireless Transmission Speed: 1.27 Gbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Antenna Connector: RP-SMA Connector
  • Features:
    • Quality of Service (QoS)
    • MIMO Technology
  • Wireless Security:
    • WPA2
    • WPA

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 8232
  • Product Name: AP 8232 802.11ac Access Point

Physical Characteristics

  • Height: 1.8"
  • Width: 6"
  • Depth: 9"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 3.30 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 2
  • PoE (RJ-45) Port: Yes
  • USB: Yes
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Safety:
    • UL
    • cUL
    • 60950-1
    • IEC
    • EN60950-1
    • UL2043
    • Radio Approvals:
    • FCC (USA)
    • EU
    • TELEC
    • IEEE Standards:
    • 802.11a
    • 802.11b
    • 802.11g
    • 802.11n
    • 802.11ac
    • 802.11d
    • 802.11i
    • 802.1p

Power Description

  • Power Source:
    • AC Adapter
    • PoE
Extended Details

Recommended Accessories for Model: Motorola Wireless Access Points

  • Zebra Network Antennas
    Part #: ML-2452-APA2-01 | SKU: ZEB214184

    Wireless Antennas - Motorola - Antenna: 2.4/5 GHz - Indoor: Type: Dipole (Paddle): Gain: 3dBi/2.4GHz - 4dBi/5GHz: Beam Width: E-Plane: 35 degrees - H-Plane: 360 degrees: Connector: RP-SMA Male
    MSRP: $40.00 Price: $31.33
    See Price in Cart (Why?)
    In Stock

  • Symbol Wireless Antenna
    Part #: ML-2452-PNA7-01R | SKU: SYM30907

    Zebra Dual Band Outdoor Directional Panel Antenna - 7 dBiPanel

  • Motorola Accessory
    Part #: AP-PSBIAS-2P3-ATR | SKU: MOT187558

    Power Injector: Single Port Hi-Power 802.3at

  • Zebra Wireless Antenna
    Part #: ML-2452-HPAG4A6-01 | SKU: ZEB148771

    Wireless Antenna - Symbol Antenna - Outdoor Environment - 2.4GHz/5GHz - 4 dBi/6 dBi - Connector Type: N Male

  • Motorola Wireless Antenna
    Part #: ML-2452-PTA6M6-1 | SKU: MOT190667

    Zebra ML-2452-PTA6M6-1 Six-Port PIFA Array, RP-SMA Male - Range - UHF, SHF - 2.40 GHz, 5.15 GHz to 2.50 GHz, 5.95 GHz - 4 dBi - Wireless Data Network
View All Options

Recommended Warranties for Model: Motorola Wireless Access Points

  • Motorola AP 8232 Service Contract
    Part #: SAEX-AP8232-30 | SKU: MOT287245

    Service Contract - 3 Year, Service from the Start Advanced Exchange. Includes Comprehensive Coverage.Does not include Tech support and SW upgrades. Requires an SWS contract before purchase
