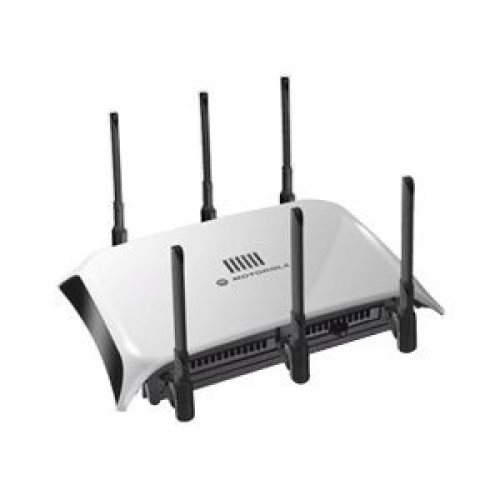

Motorola Wireless Access Points
Part #: AP-7131N-66S70-WR | SKU: MOT80670

As a standalone access point, AP-7131 provides small and medium-sized businesses with a consolidated wired and wireless networking infrastructure, all in single device. The integrated router, gateway, firewall, DHCP and AAA Radius servers, VPN, hot-spot gateway, Power-over-Ethernet (PoE) simplify and reduce the costs associated with networking by eliminating the need to purchase and manage multiple pieces of equipment.

Motorola Wireless Access Points

Part Details: Zebra AP-7131 IEEE 802.11n 600 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Gigabit Ethernet - PoE Ports

InStock

Need a different version of the Motorola AP 7131 Wireless Access Points? View all 17 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Motorola
Model Name	AP 7131

Motorola AP 7131 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.15 GHz
Total Number of Antennas: 6
Wireless Transmission Speed: 600 Mbps
ISM Maximum Frequency: 2.46 GHz
UNII Maximum Frequency: 5.85 GHz
Antenna Connector: RP-SMA Connector
Wireless Security:
- WPA2
- WPA
- IEEE 802.11i
- IEEE 802.1x

General Information

Product Type: Wireless Access Point
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: AP-7131
Product Name: AP-7131 Adaptive Services Wireless Access Point

Physical Characteristics

Height: 1.5"
Depth: 5.5"
Form Factor:
- Ceiling Mountable
- Wall Mountable
Weight (Approximate): 2.67 lb

Interfaces/Ports

Gigabit Ethernet Port: Yes
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
Management Port: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- AP-7131 Adaptive Services Wireless Access Point
- Quick Installation Guide
- AP-7131 Adaptive Services Wireless Access Point
- Quick Installation Guide

Management & Protocols

Management:
- SNMP v3
- CLI
- Web-based GUI
- DHCP
- IEEE 802.1p QoS
- IEEE 802.1q VLAN

Power Description

Input Voltage: 48 V DC

Extended Details
