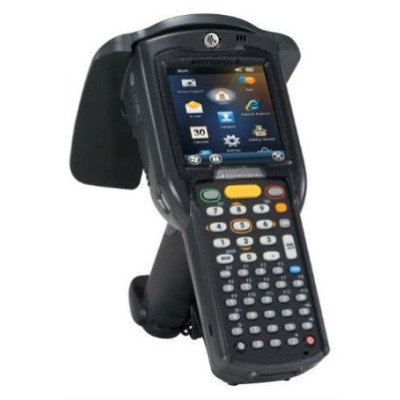

Motorola MC3190-Z RFID Reader

Communications

Security
WPA2 (Personal or Enterprise); 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC); CCXv4 certified; support for IPv6; FIPS140-2 Certified

Antenna
Integrated orientation insensitive

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps

WLAN
802.11 a/b/g

Performance Characteristics

Data capture options
RFID; 1D laser scanner, 2D imager (see below for RFID capabilities)

Memory (Flash/RAM)
256MB RAM/1GB Flash

Processor (CPU)
Marvell PXA320 @ 624 MHz

Operating system (OS)
Microsoft Windows Mobile 6.5 Classic Edition

Physical Characteristics

Dimensions (HxWxD)
7.6 in. H x 4.7 in. W x 6.4 in. D /19.34 cm H x11.94 cm W x 16.26 cm

Display resolution
3 in. QVGA color display (320 x 320) touchscreen with backlight

Keyboard
48-key Alpha-Numeric, 28-key Numeric

Weight
22.93 oz./650 g (including battery, stylus, narrow keypad & strap)

RFID

Antenna
Integrated orientation insensitive

Frequency range
EU: 856-868 mHz, US: 902-928 mHz

RFID output power
1 W ERP

Standards supported
EPC Gen 2 DRM (DRM compliant up to 0.5W)

Regulatory Specifications

EMC
EN 301 489-1, EN 301 489-17, IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B, EN 301 489-3

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1

Laser safety¹
EN 60825-1, IEC 60825-1, 21CFR1040.10

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65Supplement C Canada: RSS-102EU: EN 50360; EN 50364Japan: ARIB STD T56Australia: Radio communications Standard 2003

Radio
Tri-mode IEEE® 802.11a/b/g

User Environment

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Drop specification
Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, Multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G

Electrostatic discharge (ESD)
+/-15kvVDC air discharge, +/-8kvVDCdirect discharge, +/-8kv indirect discharge

Humidity
5-95% non-condensing

Operating temperature
14° F to 122° F/-10° C to 50° C

Storage temperature
-22°F to 160° F/-30°C to 70°C

Tumble specifications
500 1.64 ft./.5 m tumbles (1,000 drops)at room temperature; meets and exceeds MIL-STD 810F
