- Brings a new level of style to your Point of Sale.
- Easy-to-use scanner can complement the most sophisticated, fashion-conscious decor.
- PRZM Intelligent Imaging technology for scanning of any 1D or 2D barcode
- Choose any combination of visual, audio or physical decode feedback to meet the needs of your environment
- Driver"s license parsing option
- Support for over 90 international keyboards enables easy deployment anywhere in the world.

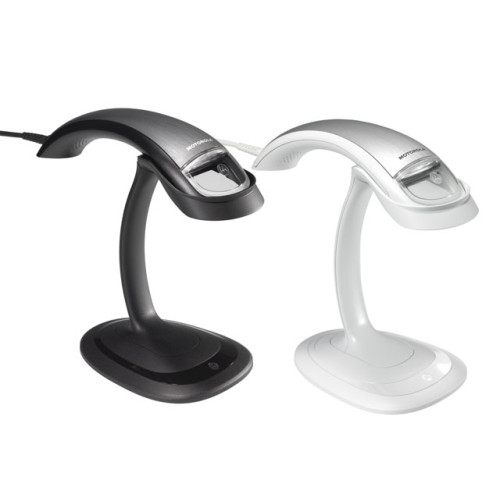

- Stylish Intellistand for flexible scanning modes - handheld and presentation
- Capture every barcode that is presented at your POS - 1-D, 2-D, printed on labels, displayed on a mobile phone screen, high density, poorly printed, damaged and under shrinkwrap.
- Customizable to fit into your environment and promote your brand.
- Capture checks, ID cards and more for easy electronic recordkeeping.
- Configured to the most optimal settings for reduced out-of-the-box user setup time.
Motorola DS4800 Specs
Physical characteristics
Dimensions
7.47 in. L x 2.61 in. W x 1.90 in. H
Weight
6 oz. (168 g.) including cable; cable weight = 2 oz. (53 g.)
Voltage & Current
5 VOC ± 10% @ 360mA (RMS Typical)
Power Source
USB VBUS

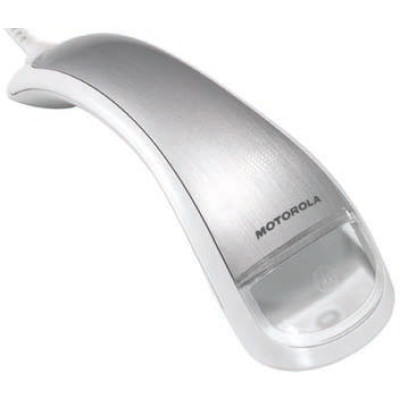

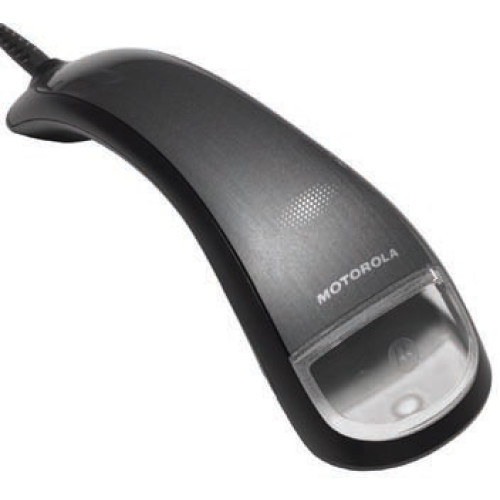

Color
Alpine White & Midnight Black
Suported Host Interfaces
USB
Keyboard Support
Supports over 90 international keyboards
Performance characteristics
Skew tolerance1
86° (measured using 100% UPC-A; ±3 degree accuracy)
Pitch tolerance
82° (measured using 100% UPC-A; ±3 degree accuracy)
Roll tolerance2
360°
Motion tolerance
Up to 20 in./sec.
Light source
Aiming 606nm LED; Illumination: 640nm LED
Imager Field of View
40° (H) x 26° (V) Nominal
Minimum print contrast
20%
Utilities Management
123Scan2 Scanner Managment Services (SMS) Zebra Scanner SDK
Regulatory specifications
Environmental
Compliant with RoHS directive 2002/95/EEC
Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1
2nd ed., EN60950-1 / IEC 60950-1
2nd ed.
LED Safety
IEC/EN 60825-1:2001, IEC/EN 62471:2006
EMI/RFI
FCC Part 15 Class B, ICES-003 Class B, EN 55022 Class B, EN
55024
User environment
Ambient light immunity
Max 108, 000 Lux
Operating temperature
32° F to 104° F/0° C to 40° C
Storage temperature
-40° F to 158° F/-40° C to 70° C
Humidity
5% to 95% RH, non condensing
Drop specifications
Withstands multiple 5 ft. (1.5 m) drops to concrete
Tumble testing
250 cycles (500 drops) in 1/2 meter tumbler
Sealing
IP40
barcode Symbologies
1-D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC
Coupon Extended Code, Code 128, GS1- 128, ISBT 128, Code 39, Code
39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix
2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese
2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concatenated 2-D:
PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix,
Maxicode, QR Code, MicroQR, Aztec, Han Xin Postal: Australian Post,
US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code
(Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4),
USPS 4 State Postal (Post US3)
Decode ranges (typical)5
| Near | Far | |
| mil Code 39 0.8 in. | 2 cm 4.7 in. | 11.9 cm |
| 4 mil Code 39 0 in. | 0 cm 8.5 in. | 21.6 cm |
| 5 mil Code 39 0 in. | 0 cm 10.0 in. | 25.4 cm |
| 7.5 mil Code 39 0 in. | 0 cm 15.5 in. | 39.4 cm |
| 13 mil (100% UPC-A) 0 in. | 0 cm 22.4 in. | 56.9 cm |
| 20 mil (Code 39) 0 in | 0 cm 36.0 in. | 91.4 cm |
| 26 mil (200% UPC-A) 0 in. | 0 cm 47.6 in. | 120.9 cm |
| 100 mil reflective 0 in. | 0 cm 175.0 in. | 444.5 cm |
| 5 mil (PDF 417) 0.8 in. | 2 cm 6.2 in. | 15.7 cm |
| 10 mil (Data Matrix) 0.3 in. | 0.8 cm 8.5 in. | 21.6 cm |
Refine Your Options
Shop By
Shopping Options
-
Interface Options
-
Form Factor
-
Scanner Capability
-
Scanner Type
-
Motorola Barcode Scanner
Part #: DS4801-SR00004ZZNA | SKU: MOT278915SCANNER ONLY, 2D Imager, Standard Range. Color: Black. Cables and stand sold separately. -
Motorola Barcode Scanner
Part #: DS4801-SRWU0000SGW | SKU: MOT296094USB Stand Kit. 2D Imager. Includes USB cable and stand. Color: White. -
Motorola Barcode Scanner
Part #: DS4801-DL0000WZZNA | SKU: MOT2789122D Imager, Driver's License parsing. Includes USB cable. Color: White. -
Motorola Barcode Scanner
Part #: DS4801-DLWU0000SGW | SKU: MOT296091USB Stand Kit. 2D Imager, Driver''s License parsing. Includes USB cable and stand. Color: White. -
Motorola Barcode Scanner
Part #: DS4801-DL0000WZZWW | SKU: MOT2960892D Imager, Drivers License parsing. Includes USB cable. Color: White -
Motorola Barcode Scanner
Part #: DS4801-SR4U0000SGN | SKU: MOT278917Zebra DS4800 Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - Midnight Black -
Motorola Barcode Scanner
Part #: DS4801-DL4U0000SGN | SKU: MOT278913USB Kit, 2D Imager, Driver's License Parsing. Color: Black. Includes USB cable and stand. -
Motorola Barcode Scanner
Part #: DS4801-DLWU0000SGN | SKU: MOT278914USB Kit, 2D Imager, Driver's License Parsing. Color: White. Includes USB cable and stand. -
Motorola Barcode Scanner
Part #: DS4801-DL4U0000SGW | SKU: MOT296090USB Stand Kit. 2D Imager, Driver's License Parsing. Includes USB cable and stand. Color: Black. -
Motorola Barcode Scanner
Part #: DS4801-SR4U0000SGW | SKU: MOT296093DS4800, USB Stand Kit. 2D Imager. Includes USB cable and stand. Color: Black.
Recommended Accessories for Model: Motorola DS4800 Barcode Scanner
-
Zebra Mounting Hardware and Stands
Part #: 20-71048-0WR | SKU: ZEB267576Intellistand - DS4800 (Alpine White)$61.37 -
Zebra Mounting Hardware and Stands
Part #: 20-71048-04R | SKU: ZEB267577Intellistand - DS4800 (Midnight Black)
