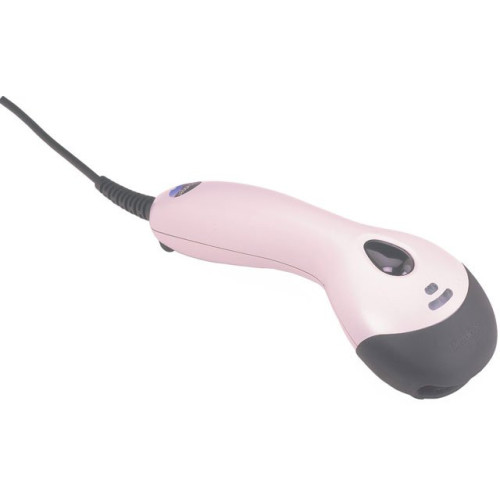

Metrologic Barcode Scanner
Part #: MK9544-72A38 | SKU: MET7695

VoyagerPDF is a handheld bar code scanner capable of decoding all standard 1D, 2D (PDF417), RSS and composite symbologies.

Metrologic Barcode Scanner

Part Details: MS9544 VoyagerPDF, USB (keyboard emulation & HID) kit. Includes PDF417 scanner, USB cable, stand, CodeGate & manual. Color: Gray. (Formerly listed as (Part# MK9544-72A07)

InStock

Need a different version of the Metrologic MS9544 Voyager PDF Barcode Scanner? View all 7 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Metrologic
Model Name	MS9544 Voyager PDF
Scanner Capability	1D

Metrologic MS9544 Voyager PDF Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Single Line
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- All standard 1D & 2D Barcodes including RSS, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 Composite Barcodes.
- All standard 1D & 2D Barcodes including RSS, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 Composite Barcodes.
Maximum Scan Resolution: 5 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: MS9544
Product Name: VoyagerPDF MS9544 Barcode Reader
Product Line: VoyagerPDF

Physical Characteristics

Height: 7.8"
Width: 3.1"
Depth: 1.6"
Color: Gray
Weight (Approximate): 5.26 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Package Contents:
- VoyagerPDF MS9544 Barcode Reader
- USB Cable
- VoyagerPDF MS9544 Barcode Reader
- USB Cable
Certifications & Standards:
- RoHS
- WEEE
- Laser Class 1:
- Class 1; IEC60825-1:1993/A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
- EMC:
- FCC Class B
Additional Information:
- Supported Interfaces:
- SerialKeyboard WedgeOCIALight Pen EmulationIBM 468X/469XUSB

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5.2 V DC

Extended Details
