Meru Wireless Access Points
Part #: AP110 | SKU: MER192975

Businesses need to rely on connectivity and the Meru AP1000i Series is engineered to provide the world's most reliable mobile connectivity. Supporting both the 2.4GHz and the 5GHz spectrum and backwards compatible with 802.11a, 802.11b and 802.11g, the AP1000i Series is an ideal solution to transition your network to 802.11n without leaving your legacy clients behind.

Meru Wireless Access Points

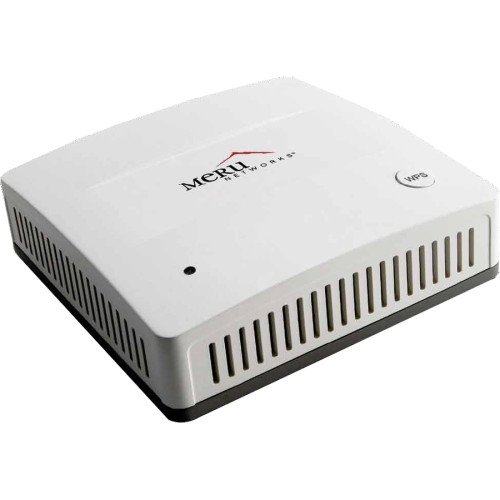

Part Details: Meru AP110 IEEE 802.11n 300 Mbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet - Desktop, Wall Mountable

InStock

Need a different version of the Meru AP1000i Series Wireless Access Points? View all 8 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Meru
Model Name	AP1000i Series

Meru AP1000i Series Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: No
ISM Minimum Frequency: 2.41 GHz
Antenna Gain: 2 dBi
Antenna Type: Omnidirectional Antenna
Total Number of Antennas: 2
Wireless Transmission Speed: 300 Mbps
ISM Maximum Frequency: 2.47 GHz
Features: Quality of Service (QoS)
Wireless Security:
- 40/128-bit WEP
- WPA
- WPA2
- IEEE 802.11i
- AES
- TKIP
- IEEE 802.1x
- EAP-TLS
- EAP-TTLS
- EAP-PEAP
- MS-CHAPv2
- EAP-LEAP
- EAP-FAST
- EAP-MD5
- RADIUS

General Information

Product Type: Wireless Access Point
Brand Name: Meru
Manufacturer: Meru Networks
Product Model: AP110
Product Name: Virtual Office Access Point

Physical Characteristics

Height: 1.3"
Width: 4.1"
Depth: 4.1"
Form Factor:
- Desktop
- Wall Mountable
Weight (Approximate): 4.90 oz

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: No
10Gigabit Ethernet Port: No
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: No
USB: Yes
HDMI: No
VGA: No
Audio Line Out: No
Serial Port: No
Network (RJ-11): No
Powerline: No
Management Port: No

Other

Package Contents:
- Virtual Office Access Point
- Adaptor
- Virtual Office Access Point
- Adaptor
Certifications & Standards:
- IEEE Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.3
- IEEE 802.3u
- Radio:
- FCC Part 15.247
- RSS-210 (Canada)
- EN 300 328
- EN 62311
- ARIB STD-T66
- RCR STD-33
- ARIB STD-T71 (Japan)
- Safety:
- UL 60950-1
- CSA C22.2 No. 60950-1-07
- EN 60950-1
- IEC 60950-1
- Emissions:
- EN 55022 Class B
- EN 55024
- EN 301 489-1
- EN 301 489-17
- ICES-003 Class B
- FCC Part 15B, Class B

Management & Protocols

Management:
- Web Based Management
- Telnet
- CLI
- SNMP
- E(z)RF Network Manager

Power Description

Input Voltage: 12 V DC
Power Source: AC Adapter

Warranty

Limited Warranty: 1 Year

Extended Details

Meru Wireless Access Points Part #: AP110 | SKU: MER192975
