model-1552 model-1552 model-1552 Logic Controls

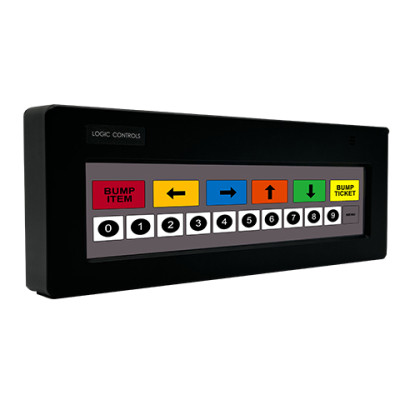

Logic Controls KB1700 Programmable Keyboards Logic Controls KB1700 Programmable Keyboards

Logic Controls KB1700 Programmable Keyboards

Logic Controls KB1700 Programmable Keyboards

The KB1700 Programmable Keypad is constructed using PC boards with gold plated lands and stainless steel tactile dome disks instead of conventional plastic sheet membranes and conductive ink traces. A durable spill-proof input device for varied programmable tasks or choices the KB1700 has 17 programmable membrane keys ideally suited for applications requiring a very small footprint. This Keypad offers the same reliability and intelligence as our mechanical keyboards and can be used for information or I-O input in retail or industrial settings kiosk look up devices or as a kitchen bump bar.
Starting at: Price: $196.06
See all options
  • All 17 keys are programmable, up to 119 characters per key
  • Available with RS-232C output
  • Fully downward compatible with the IBM Bump Bar
  • Internal beeper
  • Keyboard I/O ports allow daisy-chaining of input devices
  • No programming accessory kit, TSR program, or battery required
  • Optional international output codes (Alt-Number)
  • Programmable inter-string delay
  • Stainless steel dome disk switches
  • Standard computer 101 keyboard output data format Output data set includes all alphanumeric, controls, and function codes
  • True Keyboard wedge function, operates with or without computer keyboard
Logic Controls Saturn DV PC Specs Logic Controls Saturn DV PC Specs (pdf)

Programmable Keypad KB1700 - Bump Bar More Images Superior Reliability The KB1700, one of the most popular “bump bars” on the market today, is built to withstand the most demanding requirements of kitchen systems and other industrial applications. The keypad is built with high quality stainless steel dome disk switches that last more than 3 million cycles, and the unit is enclosed in special, high durability plastic that is UV-resistant and prevents color fading. All units also receive full functional and quality control testing before leaving Logic Controls facilities. Easy and Advanced Programming The KB1700 is one of the easiest and most programmable bump bars on the market. It is fully downward compatible with the IBM bump bar. All 17 tactile keys are programmable and the KB1700 supports a full set of alphanumeric, control, function, and international output codes. Using a powerful Windows-based programming utility that stores key definitions in a data file, an integrator can create a program layout for multiple keypads, rather than programming key by key, keypad by keypad. Multitude of Interfaces The KB1700’s I/O ports allow daisy-chaining of other input devices. It provides either a PS/2 or RS232C output and supports a true keyboard wedge function, operating with or without a computer keyboard. The KB1700 also offers an internal beeper and comes with various legend sheet options.

  • Fully downward compatible with the IBM bump bar
  • All 17 tactile keys are programmable, up to 1800 characters per key with programmable inter-string delays
  • Includes powerful Windows-based programming utility
  • Create program layout for multiple keypads – programming utility saves templates in data files
  • No programming accessory kit, TSR program, or battery required
  • High quality, stainless steel dome disk switches last more than 3 million cycles
  • Standard computer 101 keyboard output data format
  • Data set includes all alphanumeric, control, function and optional international output codes
  • True keyboard wedge function, operates with or without computer keyboard
  • Available with PS/2 or RS232C output
  • I/O ports allow daisy-chaining of other input devices
  • Internal beeper
  • Various legend sheet options available
Extended Details
Refine Your Options
  1. Logic Controls KB1700 Programmable Keyboards

    Logic Controls KB1700 Programmable Keyboards
    Part #: KB1700P-B-BK | SKU: LOG182415

    KB1700 Programmable Keypad, (RJ-PS/2 Cable Set, Legend B, XPIENT) - Color: Black
    Price: $198.25
    In Stock
  2. Logic Controls Keyboards

    Logic Controls Keyboards
    Part #: KB1700U-D-BK | SKU: LOG83091

    Logic Controls KB1700 POS Keypad - 17 Keys - USB - Black
    Price: $200.17
    In Stock
  3. Logic Controls System Controller

    Logic Controls System Controller
    Part #: KB1700-B | SKU: LOG756457

    System Controller - Logic Controls - Bump Bar - Legend B - RJ/USB RJ/RJ PS2 Cable Item 928119 Sold Separately
    Price: $196.06
    In Stock
  4. Logic Controls Keyboards

    Logic Controls Keyboards
    Part #: KB1700D-BK | SKU: LOG213202

    KB1700 Programable Keypad - PS/2 INT
    Price: $200.17
  5. Logic Controls KB1700 Programmable Keyboards

    Logic Controls KB1700 Programmable Keyboards
    Part #: KB1700U-A-BK | SKU: LOG224165

    KB1700, PRG KEYPAD/BUMP BAR, USB LEGEND A, BLACK
  6. Logic Controls KB1700 Programmable Keyboards

    Logic Controls KB1700 Programmable Keyboards
    Part #: KB1700B-BK-RJRJ-WMBK | SKU: LOG182410

    KB1700 Programmable Keypad, (Bump Bar, RJ to RJ Connection, Xpient and Wall Mount) - Color: Black
  7. Logic Controls KB1700 Programmable Keyboards

    Logic Controls KB1700 Programmable Keyboards
    Part #: KB1700B-BK | SKU: LOG182412

    KB1700 Programmable Keypad, (Legend B, Xpient, PS/2) - Color: Black
  8. Logic Controls Keyboards

    Logic Controls Keyboards
    Part #: KB1700PH-BK | SKU: LOG153337

    KB1700 Programmable Keypad, Programmable keyboard, Logic Controls KB1700, 17 keys, bump bar, black, Positouch legend sheet, PS/2 interface.
  9. Logic Controls KB1700 Programmable Keyboards

    Logic Controls KB1700 Programmable Keyboards
    Part #: KB1700RS-B-BK | SKU: LOG182418

    KB1700 Programmable Keypad, (LEGEND B, RS-232 and XPIENT LGND) - Color: Black
  10. Logic Controls Keyboards

    Logic Controls Keyboards
    Part #: KB1700U-B-BK | SKU: LOG66501

    KB1700 Programmable Keypad, Bematech KB1700 Programmable Keypad, (LEGEND B, USB Interface), 17 Programmable Key - Color: Black

Items 1 to 10 of 39 total

Page:
  1. 1
  2. 2
  3. 3
  4. 4

Recommended Accessories for Model: Logic Controls KB1700 Programmable Keyboards

  • Logic Controls Accessory
    Part #: KB17LEGEND-D | SKU: LOG41631

    Legend Sheet D (Positouch Sheet) for the KB1700
    Price: $20.44

  • Logic Controls Accessory
    Part #: KB17-CA-RJ20 | SKU: LOG22781

    20 feet RJ TO RJ cable for KB1700 Bump Bar

  • Logic Controls Accessory
    Part #: KB17CABLE-RJRJ | SKU: LOG25436

    RJ11/RJ11 cable for KB1700

  • Logic Controls Accessory
    Part #: KB17WMBR-BK | SKU: LOG28705

    Bematech Mounting Bracket for Keypad - Black - Black

  • Logic Controls Accessory
    Part #: KB17LEGEND-E | SKU: LOG41632

    Legend Sheet-EX (for the KB1700)
View All Options
