174046 174046 174046 Lenovo

Lenovo Products
Part #: 4158D6U | SKU: LEN174046

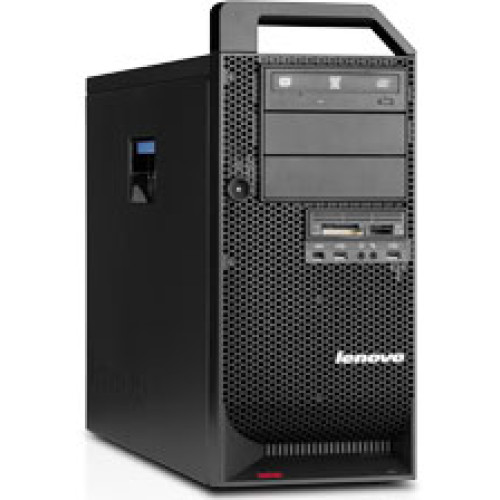

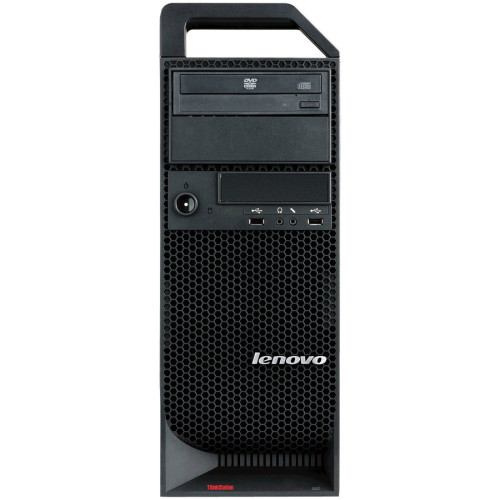

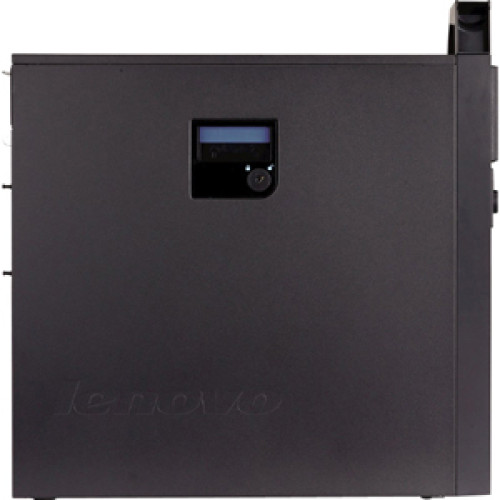

The Lenovo ThinkStation D20 is reliable and secure. Rigorous voltage, shock, vibration, and drop tests ensure that the Lenovo ThinkStation D20 workstation is equipped with the rock-solid durability Think-branded products are renowned for. Plus our ThinkVantage Technologies automate updates and maintenance tasks, protect your business critical information, and prevent unauthorized access to data. Our Rescue and Recovery helps you recover from system crashes with the push of a button, even if the primary operating system won't boot. And with Client Security Solution, you simply can't get a higher level of security as a standard PC feature from any other manufacturer.

Lenovo Products

Part Details: ThinkStation D20, 2 x Xeon E5620 (2.40 GHz) Processor, 4 CPU Cores, 1 x 300GB SATA Hard Drive, 4 x 2GB ECC RAM, Win 7 Pro 64 OS, No Gfx Card, DVD RW Optical Drive

InStock

Need a different version of the Lenovo ThinkStation D20 Products? View all 3 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Lenovo
Model Name	ThinkStation D20

General Information

Product Type: Workstation
Product Series: D20
Brand Name: Lenovo
Manufacturer: Lenovo Group Limited
Product Model: 4158D6U
Product Name: ThinkStation D20 4158D6U Workstation
Product Line: ThinkStation

Physical Characteristics

Height: 19.1"
Width: 8.3"
Depth: 23.7"
Color: Raven Black
Form Factor: Tower
Weight (Approximate): 60 lb

Interfaces/Ports

Total Number of USB Ports: 10
eSATA: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Number of USB 2.0 Ports: 10
Microphone: Yes

Processor & Chipset

Processor Core: Quad-core (4 Core)
Processor Manufacturer: Intel
Chipset Manufacturer: Intel
Chipset Model: 5520
Number of Processors Supported: 2
Number of Processors Installed: 2
Hyper-Threading: Yes
Processor Model: E5620
Processor Speed: 2.40 GHz
Processor Type: Xeon
Cache: 12 MB
64-bit Processing: Yes
QuickPath Interconnect: 5.86 GT/s

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- 80 Plus Bronze
- GREENGUARD
- RoHS
Package Contents:
- ThinkStation D20 4158D6U Workstation
- Keyboard
- Mouse
- ThinkStation D20 4158D6U Workstation
- Keyboard
- Mouse

Storage

Optical Drive Type: DVD-Writer
Optical Media Supported: DVD-RAM/±R/±RW
Dual-Layer Media Supported: Yes
Total Hard Drive Capacity: 300 GB
Hard Drive Interface: Serial ATA/300
Number of Hard Drives: 1

Memory

Memory Card Reader: Yes
Number of Total Memory Slots: 12
Memory Standard: DDR3-1333/PC3-10600
Memory Technology: DDR3 SDRAM
Maximum Memory: 48 GB
Standard Memory: 8 GB

I/O Expansions

Number of Total Expansion Bays: 9
Number of External 5.25" Bays: 3
Number of PCI Slots: 2
Number of PCI Express x1 Slots: 1
Number of 3.5" Bays: 6
Number of PCI Express x16 Slots: 3

Software

Operating System Architecture: 64-bit
Operating System: Windows 7 Professional
Software Included: Microsoft Office 2010

Input Devices

Keyboard: Yes
Pointing Device Type: USB

Network & Communication

Ethernet Technology: Gigabit Ethernet

Warranty

Limited Warranty: 3 Year

Power Description

Maximum Power Supply Wattage: 1.06 kW

Controllers

Controller Type: Serial ATA/300

Extended Details

Lenovo Products Part #: 4158D6U | SKU: LEN174046
