174374 174374 174374 Lenovo

Lenovo Products
Part #: 4157M3U | SKU: LEN174374

The ThinkStation S20 has been tested and certified by leading ISVs, including Autodesk, Adobe, Dassault Systemes and PTC. It's equipped with Error Correcting Code (ECC) memory to virtually eliminate memory-related failure. Additionally, the unique thermal design of the ThinkStation S20 is engineered for maximum cool air delivery to key components, reducing the risk of hardware failure. Plus, the 24db idle operating noise level makes workstation operation nearly undetectable. The ThinkStation S20 is ideal for users across a variety of industries, especially 2D digital content creators, users of mid-range CAD and EDA applications, and finance and medical professionals.

Lenovo Products

Part Details: ThinkStation S20, Xeon W3550 (3.06 GHz) Processor, 4 CPU Cores, 1 x 500GB SATA Hard Drive, 2 x 2GB ECC RAM, Win 7 Pro 64 OS, NVIDIA Quadro 2000 - 1GB, DVD RW Optical Drive

InStock

Need a different version of the Lenovo ThinkStation S20 Products? View all 11 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Lenovo
Model Name	ThinkStation S20

General Information

Product Type: Workstation
Product Series: S20
Brand Name: Lenovo
Manufacturer: Lenovo Group Limited
Product Model: 4157M3U
Product Name: ThinkStation S20 4157M3U Workstation
Product Line: ThinkStation

Physical Characteristics

Height: 18.8"
Width: 6.9"
Depth: 19"
Color: Raven Black
Form Factor: Tower
Weight (Approximate): 38.50 lb

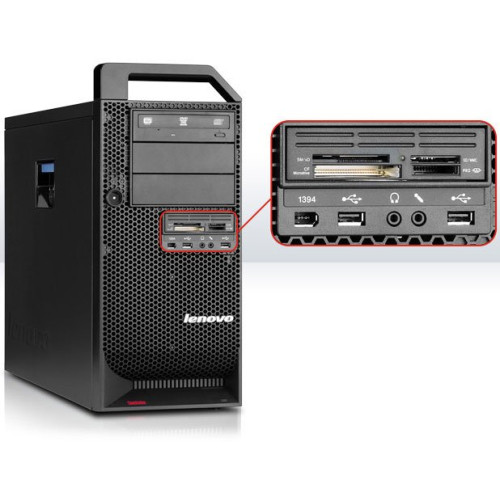

Interfaces/Ports

DVI: Yes
DisplayPort: Yes
Total Number of USB Ports: 10
eSATA: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Number of USB 2.0 Ports: 10
Microphone: Yes

Processor & Chipset

Processor Core: Quad-core (4 Core)
Processor Manufacturer: Intel
Chipset Manufacturer: Intel
Chipset Model: X58 Express
Number of Processors Supported: 1
Number of Processors Installed: 1
Hyper-Threading: Yes
Processor Model: W3550
Processor Speed: 3.06 GHz
Processor Type: Xeon
Cache: 8 MB
64-bit Processing: Yes
QuickPath Interconnect: 4.80 GT/s

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- GREENGUARD
- 80 Plus Bronze
- EPEAT Gold
Package Contents:
- ThinkStation S20 4157M3U Workstation
- Mouse
- Keyboard
- ThinkStation S20 4157M3U Workstation
- Mouse
- Keyboard

Storage

Optical Drive Type: DVD-Writer
Optical Media Supported: DVD-RAM/±R/±RW
Dual-Layer Media Supported: Yes
Total Hard Drive Capacity: 150 GB
Hard Drive Interface: Serial ATA/300
Hard Drive RPM: 10000
Number of Hard Drives: 1
Hard Drive Configuration: 1 x 150 GB

I/O Expansions

Number of Total Expansion Bays: 6
Number of Total Expansion Slots: 5
Number of External 5.25" Bays: 2
Number of PCI Slots: 1
Number of PCI Express x1 Slots: 1
Number of 3.5" Bays: 4
Number of PCI Express x16 Slots: 3

Software

Operating System Architecture: 64-bit
Operating System: Windows 7 Professional
Software Included:
- Rescue and Recovery
- Microsoft Office 2010 Product Key Ready (O10PKR)
- Roxio Creator Business Edition
- Corel WinDVD

Memory

Memory Card Reader: Yes
Number of Total Memory Slots: 6
Memory Standard: DDR3-1333/PC3-10600
Memory Technology: DDR3 SDRAM
Maximum Memory: 24 GB
Standard Memory: 4 GB

Display & Graphics

Graphics Controller Manufacturer: NVIDIA
Graphics Controller Model: Quadro 2000
Graphics Memory Capacity: 1 GB
Graphics Controller Interface: PCI Express x16
Number of Graphic Controllers: 1

Input Devices

Keyboard: Yes
Pointing Device Type: USB

Network & Communication

Ethernet Technology: Gigabit Ethernet

Warranty

Limited Warranty: 3 Year

Power Description

Maximum Power Supply Wattage: 625 W

Controllers

Controller Type: Serial ATA/300

Extended Details

Lenovo Products Part #: 4157M3U | SKU: LEN174374
