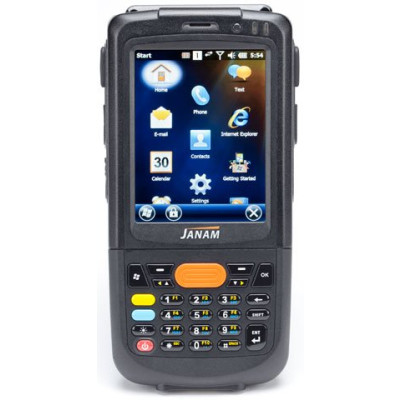

Janam XM2-RFID for Rail RFID Reader

Janam XM2-RFID for Rail RFID Reader

Fully-featured to provide the power and performance required for all-day, every-day use by mobile workers in freight and rail operations, the XM2-RFID for Rail is specially-designed to read the Automatic Equipment Identification (AEI) RFID tags required on all railcars in North America and widely used globally, allowing rail and intermodal companies to track and monitor equipment effectively. The XM2-RFID for Rail is equipped with a user-addressable compass for integration with transportation applications, brilliant 3.2-inch color display, Motorola SE4500 2D imager for robust decoding of the hardest-to-read barcodes and support for Microsoft’s Windows Embedded Handheld 6.5 operating system.
Starting at: Price: $1,263.30
See all options
  • Impressively light and fits in the palm of the hand- under 13 ounces
  • Freescale ARM 9 processor
  • High-performance barcode scanning
  • Brilliant 3.2"

TECHNICAL

Operating System

Microsoft Windows Embedded Handheld 6.5

Processor

Freescale ARM 9 processor

Memory

128MB RAM / 128MB NAND Flash, Optional 256MB RAM / 256MB Flash

Expansion

User-accessible microSD card slot

Power

2880mAh hot-swappable Li-ion battery

PHYSICAL

Dimensions

5.8” H x 2.9” W x 1.0” L /148mm H x 73mm W x 25.4mm L

Weight

13oz / 370g including battery

 Keypad Numeric

Display

3.2 inch QVGA with LED backlight

Touch Panel

Resistive touch screen

ENVIRONMENTAL

Operating Temperature

-4º to 122º F / -20º to 50º C

Storage Temperature

-22º to 158º F / -30º to 70º C

Humidity

5% to 90% RH (no condensation)

Drop

4ft / 1.2m drop to concrete on four sides

Water & Dust

IP64

Tumble

250 3.2' tumbles (250 drops)

Electro Static Discharge (ESD)

+/- 15kVdc air; +/- 8kVdc contact

Sterilization

75.9% to 81.4% concentration alcohol rub

INTERFACE FEATURES

Audio

Speaker and Microphone

Alerts

Vibration; LED indicators; audio beep

Communication Port

Industrial connector

LED Indicators Tri-color

Scan Triggers

Left, right, center buttons

DATA CAPTURE

Imager

Motorola SE4500 1D/2D CMOS

RFID Reads industry-standard Automatic Equipment Identification (AEI) RFID tags

WIRELESS COMMUNICATION

WLAN

802.11b/g/n

Security

WEP (40 or 128 bit); TKIP; AES; WPA2-PSK; WPA-PSK; WPA2 (EAP-TLS, EAP-PEAP)

WPAN

Bluetooth v2.1 with EDR

MOBILE APPURTENANCES

Compass

API-addressable compass for applications

ACCESSORIES

Single-slot USB/Serial cradle kit

Cradle Cup kit

Extended Details
Refine Your Options
  1. XM20W-FNRLCK1 - Janam XM2-RFID RFID Reader

    XM2-RFID, Mobile Computer Sales Bundle, Janam XM2-RFID, Embedded AEI Rail/Road Tag Reader, Digital Compass, WLAN 802.11 b/g/n, Bluetooth, Windows Embedded Handheld 6.5, 128MB/128MB, SE4500 Scan Engine, 2D Imager, numeric keypad, Includes 2800 mAh Li Polymer Battery, USB Cradle, USB Cable and Power supply.
    MSRP: $2,125.00 Price: $1,360.00
    In Stock
  2. XM20W-0NRLCK1 - Janam XM2-RFID RFID Reader

    XM2-RFID, Sales Bundle: XM2 with embedded AEI Rail/Road Tag Reader,No Scanner, Digital Compass, WLAN 802.11 b/g/n, Bluetooth, Windows Embedded Handheld 6.5, 128MB/128MB, numeric keypad. Includes 2800 mAh Li Polymer Battery, USB Cradle, USB Cable and power supply.
    MSRP: $1,895.00 Price: $1,263.30
    Ship Free

2 Item(s)

Recommended Accessories

  • Janam XM2 Accessories (CKT-P1-003U)

    XM2, SINGLE-SLOT USB/SERIAL CRADLE KIT (INCLUDES CRADLE, POWER SUPPLY, LINE CORD AND COMMUNICATIONS CABLES)
    MSRP: $175.00 Price: $167.50
    Ship Free
  • Janam XM2 Accessories (HL-P-007)

    Ballistic Nylon holster with Belt mounted metal clip and velcro strap for XM2 RFID Series
    MSRP: $95.00 Price: $88.40
    Ship Free
  • Janam XM2 Accessories (BA-PT-15)

    Battery (2880mAh 3.7V) for XM2 / XM20 Series
    MSRP: $50.00 Price: $47.90
    In Stock
  • Janam XM2 Accessories (BAT-P-003X)

    XM2, EXTENDED BATTERY (2880MAH 3.7V). PURCHASE EXTENDED BATTERY KIT (BK-PT20-01) BEFORE EXTENDED BATTERY (BA-PT20-02), BATTERY COVER REQUIRED TO SECURE LARGER BATTERY
    Call For Price
