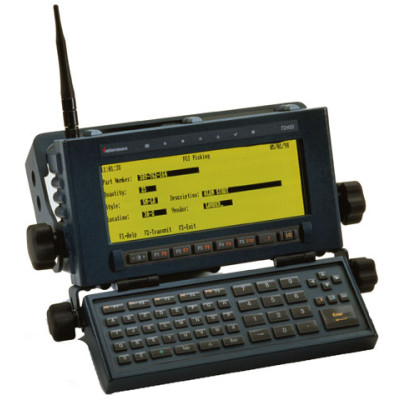

Intermec Trakker Antares T2455 Terminal

Intermec Trakker Antares T2455 Terminal

The Trakker Antares T2455 is a vehicle mounted solution for manufacturing and delivery. The Trakker Antares T2455's small size allows it to fit in nearly any situation, ideal for fork lifts, pickers and other warehouse and industrial vehicles.
Starting at: Price: $45.00
See all options

Vehicle Mount Computer (Antares)

The high-performance vehicle-mounted 2455 is a versatile and economical solution for your industrial vehicle data collection applications. Modular and compact, the 2455 fits on virtually all classes of forklifts and industrial vehicles, while its rugged design protects it from power fluctuation, shock, vibration and temperature extremes. The also features the latest 2.4 GHz and IEEE 802.11b wireless technology to maximize coverage and throughput for your operation.


  • Modular design minimizes operator visual obstruction and reduces safety hazards
  • Fits just about anywhere with small size and flexible mounting
  • Built for the industrial user with shock, temperature and environmental protection
  • Configurable according to user requirements with multiple display, keyboard and input device alternatives
  • Supports industry standard communications 2.4 GHz and IEEE 802.11b radios for superior performance and compatibility


The two piece design of the terminal allows the operator to separate the display and keyboard or mount it as one unit. The modularity and small size easily adapts to the space constraints common with today’s smaller forklifts. For added flexibility, a unique bracket design on the terminal provides unlimited viewing angle and positioning choices for your operators. Also, wide ranging power supply options make installation in virtually all industrial vehicles easy.


The 2.4 GHz OpenAir and IEEE 802.11 wireless LAN options incorporated in the 2455 give you interoperability and the wide area coverage with immunity from interference you need for uninterrupted operation.


The 2455 is built to sustain real-world conditions including very cold temperatures, constant shock, vibrations, and power fluctuations common to industrial vehicles. An industrial casing also protects the terminal of the 2455 from dust, dirt and rain commonly found in operating environments.


The terminal integrates with most common host environments, either directly to the network, or through a data collection server, which provides additional net-work management benefits. IBM and VT terminal emulations eliminate the need to re-program host applications. In addition, TCP/IP network support provides similar ease of integration in with your client/server environments.


Extend the data collection capabilities of the Intermec 2455 with various cabled and wireless laser scanners and wands. There’s also the option to add up to 2 MB of additional Flash memory and 2 or 4 MB SRAM for extended program and data storage.

Physical Characteristics Display Unit: 28.4 x 15.2 x 10.7cm (11.2" x 6" x 4.2") 4.04kg (8.9lbs) Keyboard: 28.4 x 10.4 x 4.3cm (11.2" x 4.1" x 1.7") 1kg (2.2lbs) Power Supply: 16.5 x 11.4 x 2.5cm (6.5'’ x 4.5" x 1") .73kg (1.6lbs)

Environment Operating Temperature: Standard Unit -10° to +50°C (14° to 122°F) Cold Temperature Option: -30° to +50°C (-22° to 122°F) Storage Temperature: -20° to 60°C (-4° to 140°F) Humidity: 10 to 90% non-condensing Shock & Vibration: Vibration tested to SAE J-1399 Class 2, MIL STD 810D Sealing: Sealed against dust and moisture to NEMA 3 and IP54

Power Primary: 12V to 80VDC universal power supply with surge, over-voltage, and reversal protection Memory Backup: Rechargeable NiCad

Memory RAM Memory: 1MB Non-volatile Memory: 2MB Option for 2MB additional, 4MB total Extended Storage: 2, 4MB SRAM

Interfaces Local Device Communications: Auxiliary RS-232 Laser Scanners: 10-pin connector for use with Intermec cabled & wireless laser scanners

  • Optical Serial Interface
  • RS232-C up tp 38.4 baud
  • XMODEM, YMODEM for data transfer
  • Supports Configurable Serial Protocol and XON/OFF

Display Full Screen: 25 lines by 80 characters or configurable oversized characters including 13 x 80, 25 x 40, or 13 x 40 Display Options: Transmissive LCD CGA display for standard environments EL (electroluminescent) CGA display for cold or bright locations

Keyboard Layout: ABCD keyboard layout with five function keys, oversized numeric keypad

  • F1-F10 function keys also available on display unit
  • Standard PC-AT keyboard interface for optional keyboards (req. adapter cable)
  • Options for U.S. Multilingual, European, IBM 5250, IBM 3270, and ANSI/VT

Software Programmable: Microsoft C Terminal Emulation: IBM 3270 and 5250, SNA and TELNET, ANSI/VT, TN5250, TN3270, Screen Mapping Web-based: dcBrowser™ for HTML Applications


  • DHCP Client
  • Direct TCP/IP Support
  • Sockets interface or terminal emulation
  • Network Ethernet or Token Ring

Integrated RF Module Frequency: 2.4 GHz frequency band, actual frequencies in use vary by country WLI Forum OpenAir Type: Frequency Hopping Spread Spectrum Data Rate: 1.6 Mbps, .8 Mbps fallback Range*: From 1500+ ft (450+ m) to 500 ft (150 m) depending on environment

IEEE 802.11b Wi-Fi Certified Type: Direct Sequence Spread Spectrum Data Rate: 11/5.5/2/1 Mbps with Auto fallback for increased range Range* at 1 Mbps: From 1750 ft (533 m) to 165 ft (50 m) depending on environment Range* at 11 Mbps: From 525 ft (160 m) to 80 ft (24 m) depending on environment Security: Wired Equivalent Privacy (WEP) - 64 or 128 bit encryption *Unlimited range with roaming

Host Support via DCS 300 Server Host Environment: IBM AS400, 5/390, Digital, HP, Unix, Windows NT Connectivity: Ethernet, Token Ring, 100BaseT, Twinax, Coax, SDLC Communications: TCP/IP, SNA

Accessories Desktop stand, Desktop power supply, User’s Manual, Programmer’s Software Kit (PSK), EZBuilder™ Rapid Application Development Software

Regulatory Approvals FCC - Part 15.247 Certified, Canada – RSS 210 Certified, ETS 300 328 Type Approved, EN 55022 / CISPR 22 Class B, FCC Part 15 & ICES-003 Class A, SCT Certified, NOM - EM- 121, pending, AS 3548 - C tick Marked, Compliant with all European Directives, CE Marked (prETS 300 826), UL Listed, UL 1950, C22.2 #950 & IEC 60529- IP54, TUV Licensed, EN 60950 & EN 60529 - IP54, NYCE Certified, NOM 19

Intermec reserves the right to make changes without notice to any products herein for any reason at any time, including but not limited to improving the reliability, form, fit, function or design. Please contact Intermec for current price list and availability.

Extended Details
Refine Your Options
Shop By
Shopping Options
  1. Harvard Battery (1)
  2. Intermec (1)
  1. HBB-2455N - Harvard Battery

    Replacement battery for the Intermec T2455. Original part number 66900. 7.2 volts 700 mAh.
    Price: $45.00
    Ship Free
  2. T2455C01604704 - Intermec Trakker Antares T2455 Fixed/Vehicle Mount Data Terminal

    Trakker Antares T2455, LCD display, alphanumeric keyboard, 4MB flash, TCP/IP & 802.11b. Order cables, power supply, and user's manual separately. See accessories.
