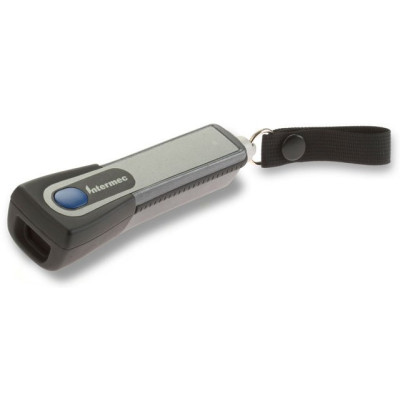

Intermec SF51 Barcode Scanner

Physical Characteristics

Length: 15.6cm (6.1 in.)
Height: 3.3cm (1.3 in.)
Width: 4.6cm (1.8 in.) in the front tapered to 3.2cm (1.26 in.) in the rear
Weight: 263gm (9.3 oz.)

Power
BatteryType: Lithium-ion
BatteryLife: 10 hours
Recharging Time: 3 hours

Terminal Connectivity
All Intermec terminals with a Bluetooth radio. Will also connect to PC with USB port using an Intermec Bluetooth USB Dongle.

Scanning Performance of the EV10 Scan Engine
Scan rate: 200 scans per second
Minimum X dimension: 4 mils (0.1mm)

ScanRange: up to 50cm
Scan angles: 40 degrees

Print Contrast Ratio: down to 25%
Skew: ±48°
Pitch: ±48°
Light source: 617nm Highly Visible LED

Radio Characteristics

Frequency Band: 2.4 Ghz
Radio Type: Bluetooth Class 1 version 1.2
Radio Data Rate: 1 megabit per second

Range
Host radio Class 1: 30.5 meters (100 ft.)
Host radio Class 2: 10 meters (32.8 ft.)
Features: Adaptive Frequency Hopping (ADF)

Environment

Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Storage Temperature: - 20°C to +60°C (-4°F to +140°F)
Recharging Temperature: 0°C to +45°C (32°F to +113°F)
Humidity: 0 - 95% RH, Non-condensing
Shock and Vibration Protection: SAE Specification J1399 Class 3 (off road vehicle)
Rain and Dust Resistance: IP-54 rated
Drop Survival: 26 drops onto concrete or steel surface from a height of 1.8m (6 ft)
Ambient light: works in any lighting conditions from 0 to 100,000 lux

Regulatory Approvals

• UL/EN 60950 – Safety of Information Technology Equipment
• EN60825-1 – Safety of Laser Products (which also regulates LEDs)
• EN 55022 / CISPR22, Class B – Information Technology Equipment: Radio frequency disturbance characteristics
• Part 15 of FCC rules, Class B – Radio Frequency Devices
• US and Canadian UL (UL60950)
• TUV or GS (Germany) (EN60950, EN60825-1)
• NOM (Mexico) (NOM-019-SCFI- 1998 based on IEC60950)
• C-TICK (Australia and New Zealand) (AS/NZS 3548 based on CISPR22)
