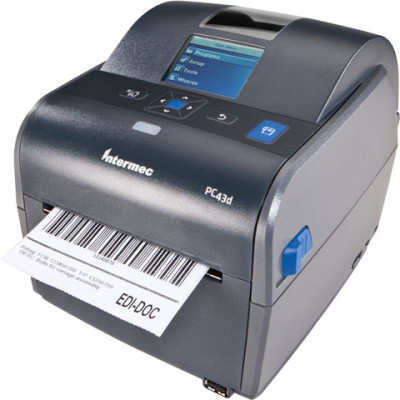

Intermec PC43d Barcode Label Printer

Intermec PC43d Barcode Label Printer

Intermec PC43d Barcode Label Printer

Super easy to install and use, the compact PC43d is a purpose-built platform with an innovative design guided from customer input. This 4" wide desktop printer is perfect for space-constrained settings, and offers tailored solutions for transportation / courier, healthcare, and retail and hospitality markets, as well as small and medium business manufacturing, and warehouse and office environments.
Call For Price
See all options
Intermec PC43d Specs Intermec PC43d Specs (pdf) Intermec PC43d Driver Intermec PC43d Driver (download)

Interfaces

Standard: USB Device Type-B connector v.2.0 high speed, USB Host Type-A connector v.2.0 high speed
Field Installable: Ethernet 10/100 Mbps module, Dual-radio module (802.11 b/g/n and Bluetooth® V2.1), USB-to-Serial adapter (RS-232), USB-to-Parallel adapter
User Interfaces:
Choice of:
• 2.36" VGA LCD 480 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
• Graphical back-lit Icons: cover open, paper out, ribbon out (PC43t), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth® status (if installed), ready-to-work LED, and one Print/Feed button
• User-configurable audio sounds with volume levels.
Supported Protocols:
Serial Flow Control: XON/XOFF, RTS/CTS
Wireless Protocol: WEP static (64/128bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, CCX compliant level 3.
Graphics: Supports user-defined fonts and graphic formats including BMP, GIF, PCX, and PNG.

Memory

Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive

Physical Characteristics

Height:
PC43d 4" DT: 167 mm (6.6 in)
PC43t 4" TTR Icon: 182 mm (7.2 in)
PC43t 4" TTR LCD: 227 mm (8.9 in)
Width:
PC43d 4" DT: 180 mm (7.1 in)
PC43t 4" TTR: 210 mm (8.3 in)
Depth:
PC43d 4" DT: 215 mm (8.4 in)
PC43t 4" TTR: 281 mm (11.1 in)
Weight:
PC43d 4" DT: 1.72 kg (3.80 lbs)
PC43t 4" TTR: 2.70 kg (5.95 lbs)

Power

Separate power supply
Input: 100–240 V AC/50–60 Hz, 1.5 A
Output: 24 V DC, 2.5 A Energy-Star Compliant

Print Specifications

Label Roll Core:
Min. 25.4 mm (1 in)
Max. 38.1 mm (1.5 in)
Label Roll Max Diameter: 127 mm (5 in)
Max Label Width:
PC23d: 60 mm (2.36 in)
PC43: 118 mm (4.7 in)
Max Length:
203 dpi – 1727 mm (68 in)
300 dpi – 900 mm (35 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300dpi
Print Width:
PC43:
203 dpi – max. 104 mm (4.1 in)
300 dpi – max. 106 mm (4.2 in)
PC23d:
203 dpi – max. 56 mm (2.2 in)
300 dpi – max. 54 mm (2.1 in)
Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)

Supported Bar Code Symbologies

1-Dimensional: All major 1-dimensional bar code symbologies are available
2-Dimensional: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

Accessories

User Accessories: Dispenser with LTS, Cutter Unit with LTS (PC43d & PC43t) user settable partial or full cut, Front Label Tray (PC43d & PC43t), 300 dpi, Battery Unit (PC43d), Linerless (PC43d & PC43t), Power Adapter Tray (PC43d), Printer Case Lock

Software

Printer Command Languages:
• C# for Printers
• IPL
• Direct Protocol
• ZSim (ZPL)
• DSim (DPL)
• XML enabled for SAP® AII and Oracle® WMS

Applications / Drivers:
• InterDriver™ Windows printer driver
• Intermec Certified Device Types for SAP®
• Intermec label design and print package

Smart Printing Languages:
C# for Printers
• Smart Printing Developer Resource Kit
• Write apps with .NET-compatible development environments
Intermec Fingerprint
• Use Intermec Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support:
• PrintSet for printer configuration
• SmartSystems™
• Sophisticated web interface for configuration, upgrade and 1:1 management
• Wavelink Avalanche™
