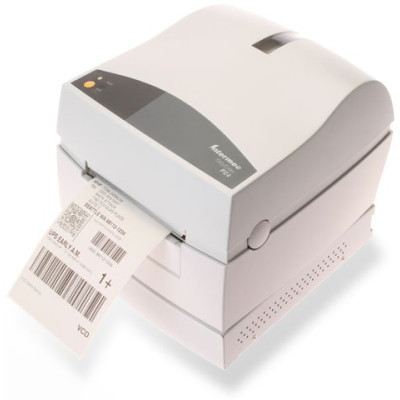

Intermec EasyCoder PC4 Barcode Label Printer

The Intermec EasyCoder C4 is a desktop Printer for Direct thermal and Thermal transfer printing. Complete setup tools and an innovative double-clam shell design makes setup and operation a cinch. Intermec's C4 is sleek compact and very silent in its operation. The C4 has a unique double-clam shell which opens for extremely easy drop-in loading of supplies. Intermec's exclusive Connect Print package guarantees that EasyCoder C4 has everything the user needs in the box. Connect Print includes QuickStart Guide PrinterCompanion CD with instruction videos to guide users through the setup process Intermec's LabelShop START design and print software Parallel cable start -up media printhead cleaning card and Windows drivers from Intermec's Interdriver with ActiveX controls. EasyCoder C4 comes standard with many features which are usually options on competitive products. Standard features include direct thermal and-or thermal transfer printing peel off and tear off capabilities. EasyCoder C4 prints on labels tags and tickets. Printhead is replaceable without any hassle or tools. EasyCoder C4 can also print mounted vertically on the wall. RS-232 and Centronics interfaces are standard with the C4. The C4 is compatible with all EasyCoder 91 and EasyCoder 7422 applications. Among the optional features of Intermec's C4 are a flash and-or SRAM memory cartridge external Ethernet adapter and serial cable.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Intermec EasyCoder PC4 Specs (pdf)

Intermec EasyCoder PC4 Driver (download)

Physical Characteristics
Length: 257 mm (10.11 in)
Height: 167 mm (6.58 in)
Width: 230 mm (9.06 in)
Weight: 2.3 kg (5.07 lbs)

Print Specifications
Label Size –
Max. Width: 118 mm (4.65 in)
Max. Length: Standard: 203 dpi - 1,200 mm (47 in), 300 dpi - 800 mm (31 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)
Print Width: 203 dpi - max. 104 mm (4.1 in)300 dpi - max. 102 mm (4.02 in)
Printing Speed: Selectable up to 4 ips (101.6 mm)

Media Specifications
Label Roll –
Max. Diameter: 127 mm (5 in)
Core Diameter: Min. 25.4 mm (1 in)Max. 38.1 mm (1.5 in)
Paper Width: Max. 118 mm (4.65 in)Min. 25.4 mm (1 in)
Label Length: Min. 6.35 mm (0.25 in)
Ribbon Roll – Max. length:100 m (328 ft)
Labels: A wide selection of stock and custom size labels are available.
Ribbons: Intermec transfer ribbons only (wax, hybrid, and resin) in widths of 33, 60, 63.5, 83.5, 89, and 110 mm (1.33, 2.36, 3.29, 3.5, and 4.33 in) centered on 110 mm (4.33 in) wide cardboard cores. Core inner diameter 13 mm (0.5 in) with notches. Max. ribbon roll diameter 41 mm (1.6 in).

Connect & Print
Intermec’s program offering “everything in the box”. The printer comes with all included: software, drivers, cables, labels, a handy QuickGuide to facilitate getting started, and a PrinterCompanion CD with label design program, Windows driver and documentation.

Software

EasyCoder PC4 Config Tool - Font & Firmware downloading tool
Intermec’s LabelShop START label design software
InterDriver for Microsoft Windows Supports: Windows 95, 98, 2000, XP, and NT 4.0

Characters/Fonts
5 resident alphanumeric fonts that are expandable 8 times horizontally and 9 times vertically. Also includes DOS 852 Latin 2 (Cyrillic II / Slavic), DOS 860 Portuguese New in 6.10, DOS 857 Turkish, DOS 861 Icelandic, DOS 862 Hebrew, DOS 855 Cyrillic, DOS 866 Cyrillic CIS 1, DOS 851 Greek 1, DOS 869 Greek 2, Windows 1251 Cyrillic, Windows 1254 Turkish, Windows 1255 Hebrew.
Printing of graphics, symbols, and downloading of additional fonts is also possible.

Bar code Symbologies
All major 1-dimensional bar code symbologies are available, plus five2-dimensional codes: MaxiCode, PDF417, DataMatrix, QR-Code, and Composite Code EAN/ECC for EAN/UCC 128 w/ CC-C.

Environment
+5° to +40°C (+40° to +104°F).

Humidity
10–90% RH non-condensing.

Power Supply
Separate power supply unit –Input: 100–240 V AC/50–60 Hz, 1.9 AOutput: 24 V DC, 3.0 A

Memory
Standard: 1MB Flash, 2 MB DRAM, Optional: 1MB Flash

Interface
Standard: RS-232C, USB v.1.1, and Centronics

Protocol
XON/XOFF, DSR/CTS

Operator Control
One multi-color LED indicator lamp and one Print/Feed key

Regulatory Approvals
CE, FCC Class A, C-UL, UL, GS, IEC 950/EN 60950, CB, MIC, CCC, VCCI, C-TIC, BSMI, NOM

Options
Flash memory cartridge, Serial communication cable, RS232 Scanner Cable, Asian fonts cartridges, Cutter unit, Keyboard display unit, EasyLAN 10 External Ethernet adapter, 300 dpi, Mobile Battery Unit.

Extended Details

Refine Your Options

Shop By

Printing Technology

Print Resolution

Print Speed

4 ips (11)

Interface Options

Printer Type

Desktop (11)

Intermec Barcode Label Printer
Part #: PC4B00100000 | SKU: INT19771

EasyCoder PC4, Thermal transfer, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
Intermec Barcode Label Printer
Part #: PC4B00000000 | SKU: INT19772

EasyCoder PC4, Direct thermal only, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
Intermec Barcode Label Printer
Part #: PC4B00001000 | SKU: INT19774

EasyCoder PC4, Direct thermal only, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power cord and tear-off and self-strip with LTS.
Intermec Barcode Label Printer
Part #: PC4B01100000 | SKU: INT19775

EasyCoder PC4, Thermal transfer, 200 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, UK/European Power cord and tear-off and self-strip with LTS.
Intermec Barcode Label Printer
Part #: PC4B00110000 | SKU: INT19776

EasyCoder PC4, Thermal transfer, 200 dpi, serial, parallel and USB interfaces, 512KB RAM, 1MB flash, US Power cord and cutter.
Intermec Barcode Label Printer
Part #: PC4C00100000 | SKU: INT25353

EasyCoder PC4, Thermal transfer printing, US Power cord, Tear Off and Self Strip with LTS, 203 dpi, Serial, Parallel and USB Ports, 2MB DRAM and 1MB Flash)
Intermec Barcode Label Printer
Part #: PC4C00000000 | SKU: INT28571

EasyCoder PC4, Direct thermal only printing, US Power cord, Tear-Off and Self Strip with LTS, 203 dpi, serial, parallel and USB Ports, 2MB DRAM and 1MB Flash
Intermec Barcode Label Printer
Part #: PC4C00110000 | SKU: INT28572

EasyCoder PC4, Thermal transfer Printer, Standard Firmware, US Power cord, Cutter, 203 dpi, serial, parallel and USB Ports, 2MB DRAM and 1MB Flash
Intermec Barcode Label Printer
Part #: PC4C00300000 | SKU: INT47296

EasyCoder PC4, Direct thermal Printer (Standard Firmware, US Power cord, Thermal transfer Thick Media, Tear-Off and Self Strip with LTS, 203 dpi, Serial, Parallel and USB Ports, 2MB DRAM and 1MB Flash)
Intermec Barcode Label Printer
Part #: PC4C01000000 | SKU: INT47297

EasyCoder PC4, Direct thermal Printer (Standard Firmware, EU and UK Power cord, Direct thermal, Tear Off and Self Strip with LTS and 203 dpi)
