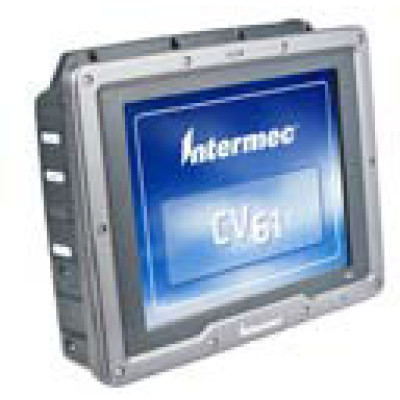

Intermec CV61 Data Terminal

Data Collection Scanner Support

•Tethered serial scanner (+5V powered)
•Tethered USB bar code scanner
•Tethered RFID reader
•Bluetooth

Display

30.7 cm (12.1”) XGA 1024x768 LED backlit display
•500 NIT brightness
•Optional touch screen defroster (requires external DC-DC power converter)

Environment

Operating Temperature:
•Standard: -20° to +50°C (-4° to 122°F)
•Extreme cold with optional screen defroster: -30° to +50°C (-22° to 122°F)
Storage Temperature: -30° to +60°C (-22° to +140°F)
Vibration and Shock Protection: Withstands standard material handling vehicle environments. Meets or exceeds MIL STD 810F, composite wheeled vehicles.
Rain and Dust Resistance: IP66
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge

Memory and Storage

•Standard 1GB DDR2 for Windows XP
•Standard 2GB DDR2 for Windows 7
•User-upgradeable up to 3GB memory total
Memory/Storage Extensions:
•Mass Storage: User-swappable 40GB Solid State Disk
•Expansion Storage: User-installable expansion slot supports additional SD 2.0 cards up to 32GB

Microprocessor

Intel® Atom D425 1.8GHz

Operating System

Choice of Microsoft Windows® 7 Professional or Windows XP Professional

Physical Characteristics

Height: 27.4 cm (10.8 in)
Width: 34.3 cm (13.5 in)
Depth: 8.4 cm (3.3 in)
Weight: 5.2 kg (11.5 lbs)

Power

Integrated 9-60 VDC isolated power supply
Optional external power converters:
•AC input for 90-240 VAC
•Extended range DC converter for 15-96 VDC
Integrated Backup Battery System
•Field-replaceable, rechargeable Lithium-Ion, 30 minutes life at -20° C

Interfaces

2 USB 2.0 ports with locking breakout cable, 2 RS-232 COM ports with +5V power, CAN-bus SAE J1939 port, Mic/Headset port, Stereo Speaker output, DC power input, WiFi primary antenna port with auto-sensing, RJ45 Gigabit Ethernet port, Legacy PS/2 keyboard input

Software

Device Management:
Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring:
Onboard diagnostics application; Remote access capability (requires SmartSystem Management option)
Application Development:
Intermec Developer Library www.intermec.com/dev
Host Connectivity:
Optional Intermec Client Pack with Intermec Terminal Emulation (VT220/ANSI, 5250, 3270) and Intermec Lock-Down Industrial Browser

Accessories

Multiple RAM® mount options, screen blanking unit, data and adapter cables, removable antenna kits, bar code scanners (tethered and wireless), printers and media

Keypad

Multiple backlit, 102-key full size and 88-key compact Qwerty keyboard options. Tethered options including USB and PS/2. Optional Bluetooth wireless external keyboard and standalone mounting kit. Available with support for VT220, 3270, 5250 terminal emulation.
