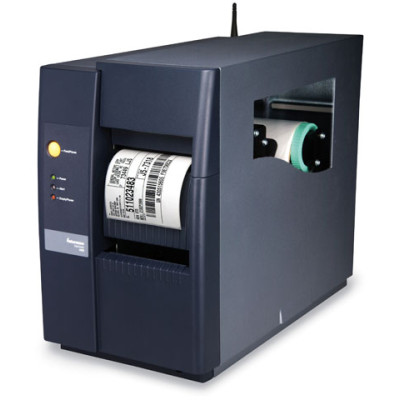

Intermec EasyCoder 4420 Barcode Label Printer

Intermec EasyCoder 4420 Barcode Label Printer

Intermec EasyCoder 4420 Barcode Label Printer

The Intermec EasyCoder 4420 is a heavy-duty Thermal transfer Barcode printer that performs nonstop delivering fast reliable printing at an economical price. With its continuous duty cycle the 4420 is great for high volume round-the-clock printing in harsh industrial environments. With 32-bit RISC processing and selectable print speeds up to 20.32 cm (8in) per second the 4420 is fast in image formatting and time-to-first print. The 203 dpi resolution of the 4420 gives you the quality you need for a variety of 112 mm (4.4in) labeling applications. Intermec's exclusive PrecisionPrint technology allows the 4420 to keep the printed image within the tightest tolerance whether printing in batch or on demand operation. Labels that are odd shaped small or preprinted are no problem with this proven technology. You can tailor the 4420 to suit your organization's needs with such options as full batch take up with auto peel heavy-duty cutter-tray internal IBM Coax and Twinax adapters and internal Ethernet interface. IPL compatible the 4420 with IPL3 is backward compatible with earlier Intermec printers and offers bi-directional parallel and high speed RS-323 communications interfaces.
Discontinued - Need Assistance
See all options
Intermec EasyCoder 4420 Specs Intermec EasyCoder 4420 Specs (pdf) Intermec EasyCoder 4420 Driver Intermec EasyCoder 4420 Driver (download)

__($mfg->name) EasyCoder 4420 Label, Ticket & Tag Printer

  • Field proven industrial strength
  • Rugged metal frame and enclosure
  • Supports unlimited duty cycle printing
  • Internal full roll batch take-up option
  • Choice of light or dark industrial metallic gray
  • Internal Ethernet network interface card optional
  • Free LabelShop™ label design / print software
  • InterDriver™ Windows printer driver included

The EasyCoder 4420 is a high capacity industrial strength printer based on the field proven 34XX series. The new industrial metallic gray color fits into a wide variety of application settings. The 4420 features a ten inch per second print speed. The design allows for a full 8” diameter roll of media and 450 m (18,000”) ribbon to maximize operator productivity. When equipped with the optional internal self-strip and full roll batch take-up the 4420 can print and rewind a full 8” diameter media roll.

The 4420 offers a variety of connectivity features and options to suit your particular environment. The __($mfg->name) EasyCoder 4420 printer comes standard with bi-directional parallel and high-speed RS-232 communication interfaces. The optional internal Ethernet adapter provides high throughput and network management without the complexity, space requirements and fragility of external print servers. A heavy-duty cutter with tray option is also available.

Intermec’s LabelShop™ START design and print software and InterDriver™ Windows printer driver are included, free of charge, with every printer.

With robust performance, fast throughput and rugged steel construction, the __($mfg->name) EasyCoder 4420 is built to take it in harsh, industrial, manufacturing, distribution and warehouse environments.

Applications Direct Thermal and Thermal Transfer Printer for self-adhesive label, ticket and tag applications. Self-strip, full internal rewind and cutter optional.

Physical Characteristics Depth: 43.82 cm (17.25”) Height: 41.91 cm (16.5”) Width: 24.8 cm (9.75”) Weight: 19.35 kg (43 lbs.)

Print Specifications Thermal Transfer and Direct Thermal Printing Selectable Print Speeds: 50.8 mm (2” ips) – 254 mm (10” ips) Resolution: 8 dots/ mm (203 dots per inch) Maximum Width: 112 mm (4.4”) Maximum Length: Unlimited Element: 0.125 mm (0.00492”)

Media Specifications Style: Roll-feed, die-cut, continuous or fanfold labels, tags, or tickets. Type: Plain paper thermal transfer or thermal sensitive papers Maximum Liner Width: 114 mm (4.5”) Minimum Liner Width: 19 mm (.75”) Maximum Media Length: 1220 mm (48”) Minimum Media Length: 12.7 mm (0.5”) Thickness: .08 mm to .3 mm (.0003 to .012”) Supply Roll Capacity: 152.4 m (6000” linear)

Ribbon Specifications Type: Wax, wax/resin, resin Standard Width: 5.38 cm (2.12”), 7.62 cm (3.0”), 10.41 cm (4.1”), 11.43 cm (4.5”) Length: 457 m (18,000”)

Font Specifications 21 resident bit-mapped fonts (includes OCR-A and OCR-B), 3 resident outline fonts, supports user-defined fonts and graphics, supports True Type fonts.

Language IPL3™ (Intermec Printer Language 3) Backward Compatibility with 86XX and IPL2™

Connectivity Serial interface standard IEEE 1284 Parallel standard Internal Ethernet interface optional Internal IBM Twinax or Coax interface optional

Software LabelShop® START label design and print software Intermec InterDriver™ standard, Windows 3.x, 9x, NT 4.0/5.0, Windows 2000 Intermec ActiveX® controls standard, Windows 9x, NT 4.0/5.0, Windows 2000 PrintSet™ printer configuration utility, Windows 9x, NT 4.0/5.0, Windows 2000 NetPilot™ + Thin Wizard™ network configuration utility (with optional Ethernet), Windows 9x, NT 4.0/5.0

Character Sets Unicode, all single byte codepage, all double byte codepage Code page 850, French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA ASCII

Power Supply 110, 115, 200, 230 V AC; 50Hz to 60Hz

Environment Operating Temperature: 4º to 40ºC (40º to 104ºF) Storage Temperature: 0º to 70ºC (32º to 120ºF) Humidity: 10 to 90% (non condensing) Ventilation: Free air

Bar code Symbologies Code 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, HIBC, Interleaved 2 of 5, Postnet, UPC/EAN, JIS-ITF 2D: Code One, Code 16K, Code 49, DataMatrix, PDF417, QR Code, Micro PDF, MaxiCode

Standards Supported UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); LOGMARS; POSTNET; ISBT 128; GM1724

Regulatory Approvals Complies with FCC Part 15, Class A; CISPR 22 Class B; ICES-003 Class B; UL, CSA & TUV-GS agency approved; CE, NOM & C-TIC

__($mfg->name) EasyCoder 4420 Options Cutter/tray; internal Ethernet; Self-strip and rewind; Twinax and Coax; DRAM image expansion 8 MB; Flash storage expansion 16 MB; Kanji/Katakana fonts

Extended Details
Refine Your Options
Shop By
Shopping Options
Printing Technology
  1. Thermal Transfer (3)
Print Resolution
  1. 203 dpi (3)
Print Speed
  1. 10 ips (3)
Interface Options
  1. Serial (RS-232) (2)
  2. Parallel (2)
  3. Ethernet (1)
Printer Type
  1. Industrial (3)
  1. Intermec Barcode Label Printer

    Intermec Barcode Label Printer
    Part #: 4420E01400200 | SKU: INT6139

    EasyCoder 4420, Thermal transfer, 203 dpi, 8 ips, 4.5" print width, parallel, serial & Ethernet interfaces, 1MB DRAM, 128KB. Includes US power cord. Order cables separately. See accessories.
  2. Intermec Barcode Label Printer

    Intermec Barcode Label Printer
    Part #: 4420E01020200 | SKU: INT15928

    EasyCoder 4420, Thermal transfer, 203 dpi, 8 ips, 4.5" print width, parallel & serial interfaces, 8MB DRAM, 128KB. Includes US power cord. No media handling options included. Order cables separately. See accessories.
  3. Intermec Barcode Label Printer

    Intermec Barcode Label Printer
    Part #: 4420E01000202 | SKU: INT25301

    EasyCoder 4420, Thermal transfer label printer, 115 VAC power supply with US cord, Cover over I/O slot, 1MB Image memory, 128KB Flash, 203 dpi printhead and Cutter, Color: Dark gray
