model-1142 model-1142 model-1142 Intermec

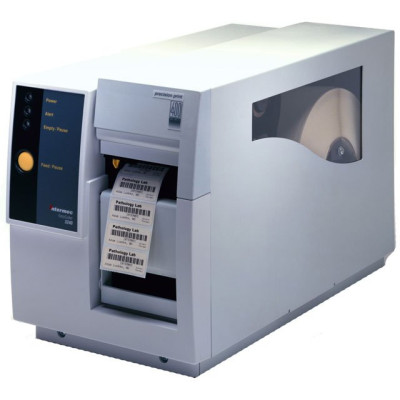

Intermec EasyCoder 3240 Barcode Label Printer

The Intermec 3240 is your solution for printing high quality labels for the smallest of applications. With its 400 dpi resolution the 3240 is engineered to print labels from 0.1 inch up to 2.7 inch wide with superior quality and scannability. Intermec's exclusive PrecisionPrint technology ensures extremely accurate image registration for even the smallest labels (within a tolerance of 0.30 inch). The 3240 exceeds the quality performance of other printers when it comes to small label printing.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Intermec EasyCoder 3240 Specs (pdf)

Intermec EasyCoder 3240 Driver (download)

EasyCoder^® 3240 Label, Ticket & Tag Printer

__($mfg->name) EasyCoder 3240 Printer

Superior Print Quality ? The 3240 with 400 dpi resolution prints graphics, small fonts and symbologies substantially improved over rival 300 dpi printers.
Saves Time and Money ? With the 3240, extremely small labels can now be printed on-demand thus saving your organization time and money for more expensive preprinted labels.
Unparalleled Precision Printing ? Intermec's patent-pending PrecisionPrint technology offers extremely accurate image registration for even the smallest of labels.
Improved Bar code Scanning ? The 3240 prints small 2.5 and 5 mil bar codes with such remarkable sharpness that bar codes read faster and more accurately.

Printing small labels for electronic components, printed circuit boards, test tubes and vials can be challenging for rival label printers. With the 3240, however, it's a snap due in part to two important technologies: 400 dpi print resolution and Intermec's patented PrecisionPrint technology for perfect label-to-label image resolution.

Intermec's exclusive PrecisionPrint technology ensures continuous image registration on the label within a tolerance of ±0.030?. Even on the smallest labels measuring only 0.1? in length where problems with image registration show up immediately, the 3240 excels.

In addition to printing on small or oddly shaped labels, the 3240 is perfect for printing on a variety of difficult to print on substrates, such as Kaptron or ultra-smooth polyesters and synthetics. That's why so many organizations in electronics, pharmaceuticals, telecommunications and health care have turned to Intermec for printers.

Beyond the power and precision, the __($mfg->name) EasyCoder 3240 is the printer of choice when the application calls for extremely small label printing of complex images on unique label materials.

Physical Characteristics Length: 43.8 cm (17.25?) Height: 27.7 cm (10.9?) Width: 21.1 cm (8.3?) Weight: 14.5 kg (32 lbs.)

Print Registration

PrecisionPrint technology yields consistent image placement over an entire 6,000 inch roll of media.
Image accuracy is within .030 of an inch in batch or print and retract modes

Print Specifications Element: 0.062 mm (0.00246?) Maximum Length: Unlimited Maximum Width: 64 mm (2.5?) ?X? Dimension: 0.06 to 1.27 mm (2.5 to 50 mil) Speed: 51, 77, 102 mm /sec (Select 2?, 3?, or 4?/sec) Resolution: 16 dots/mm (406 dpi)

Media Specifications Roll: 152 m (6000? linear) Roll Dimensions: 213 mm (8.38?) Liner Width: 12.7 to 68.6 mm (.5 to 2.7?) Thickness: .08 to .31 mm (0.003 to 0.012?) Length: 2.5 to 610 mm (0.1 to 24?) Core Size: 76 mm (3?) Ribbon Specifications Roll: 152 m (6000? linear) Width: 30 or 71 mm (1.2 or 2.8?)

__($mfg->name) EasyCoder 3240 Standard Features

Very high print resolution of 406 dpi
Engineered for small label printing
Supports printing on Kapton® materials
Digital thermal compensation ? dot-by-dot-electronics for excellent print quality, even for rotated bar codes
Compatible with Intermec's printers and supports 86XX printers in 5 and 10 mil emulation mode
128K NVRAM for permanent storage of downloaded fonts, graphics, and label formats

Communications Rate: 1,200 to 19,200 bps Flow Control: XON/XOFF ready/busy Asynchronous: RS-232-C, RS-422, RS-485

Fonts and Graphics

21 resident bitmapped fonts (includes OCR-A and OCR-B)
3 resident outline fonts
Supports user-defined fonts and graphics

Language

IPL is an advanced printer programming language that includes many features not available in other bar code printers
IPL2-Fully backward compatible with Intermec IPL printers
Advanced bar code algorithms handle all required encodation
Error detection protocols verify secure data transmission
Command errors and printer status are easily identified to your host
Communicates in printable ASCII or control characters

__($mfg->name) EasyCoder 3240 Connectivity

Serial interface standard
Centronics Parallel interface optional
Internal Ethernet interface optional
Internal IBM Twinax or Coax Interface option

Software

LabelShop START label design and print software
Intermec InterDriver standard Windows 3.x, 9x, NT 4.0/5.0, Windows 2000
Intermec ActiveX® controls standard Windows 9x, NT 4.0/5.0
PrintSet printer configuration utility Windows 3.x, 9x, NT 4.0/5.0
NetPilot + Thin Wizard network configuration utility (with optional Ethernet) Windows 9x, Windows NT 4.0/5.0

Character Sets Code page 850, French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA, ASCII

Power Supply 100, 115, 200 and 230 V AC + 10%; 50 Hz to 60 Hz

Environment Operating Temperature: 4º to 40ºC (40º to 104ºF) Storage Temperature: 0º to 70ºC (32º to 158ºF) Humidity: Non-condensing (10-90%)

Bar code Symbologies Code 2 of 5, Code 11, Code 39, Code 93, Code 128, Codabar, HIBC, Interleaved 2 of 5, Postnet, UPC/EAN, JIS-ITF 2D: Code One, Code 16K, Code 49, DataMatrix, MaxiCode, PDF417, QR Code

Regulatory Approvals Complies with all FCC Part 15, Class A; CISPR 22 Class B; ICES-003 Class B; UL, CSA & TUV GS agency approved; CE, NOM & C-TIC

__($mfg->name) EasyCoder 3240 Options Memory expansion to 512K NVRAM; Bitmap and outline Kanji/Katakana; RF Gateway (902-928 MHz)

Extended Details

Refine Your Options

Shop By

Printing Technology

Thermal Transfer (3)

Print Resolution

406 dpi (3)

Print Speed

4 ips (3)

Interface Options

Printer Type

Industrial (3)

Intermec Barcode Label Printer
Part #: 3240B0010000 | SKU: INT817

EasyCoder 3240, Thermal transfer, 406 dpi, 4 ips, 2.5" print width, serial interface, 128KB NVRAM. Includes US power cord. Order cables separately. See accessories.
Intermec Barcode Label Printer
Part #: 3240B0410000 | SKU: INT820

EasyCoder 3240, Thermal transfer, 406 dpi, 4 ips, 2.5" print width, Ethernet & serial interfaces, 128KB NVRAM. Includes US power cord. Order cables separately. See accessories.
Intermec Barcode Label Printer
Part #: 3240B0220000 | SKU: INT47289

EasyCoder 3240, Thermal transfer Printer (115 VAC Power supply with US Cord, Serial and Coax Interfaces and 512K NVRAM)

Recommended Accessories for Model: Intermec EasyCoder 3240 Barcode Label Printer

Honeywell 3400 & 3400e Power Device
Part #: 1-020036 | SKU: HON37132

Universal Software Printer Companion CD (V.04), For the 3240, 3400, 3600
Intermec EasyCoder 3240 Accessory
Part #: 63169 | SKU: INT821

Internal Batch Take-Up Adapter
Intermec EasyCoder 3240 Accessory
Part #: 56830 | SKU: INT823

Centronics PARALLEL Interface Card
Intermec 9189 RF Gateway Accessory
Part #: 68749 | SKU: INT920

9189 RF Gateway, NIC - Ethernet Card User's Manual
Intermec 9189 RF Gateway Accessory
Part #: 67867 | SKU: INT921

9189 RF Gateway, TWINAX/COAX User's Manual

View All Options

Recommended Labels for Model: Intermec EasyCoder 3240 Barcode Label Printer

Honeywell Duratran II Barcode Label
Part #: E25879 | SKU: HON128923

Intermec DuraTRAN II E25879 Thermal Label - 2" Width x 4" Length - Permanent Adhesive - Rectangle - Thermal Transfer - Paper - 1454 / Roll - 8 / Box. Minimum Order Quantity: $350
Honeywell Duratran II Barcode Label
Part #: E25878 | SKU: HON128922

Intermec DuraTRAN II Label - 2" Width x 3" Length - Permanent Adhesive - Rectangle - Thermal Transfer - Paper - 1920 / Roll - 8 / Carton. Minimum Order Quantity: $350
Honeywell Duratran II Barcode Label
Part #: E06170 | SKU: HON10194

Intermec Duratran II Thermal Transfer Label - 2.5" Width x 1" Length - 5330/Roll - Permanent - 8 Roll. Minimum Order Quantity: $350
Honeywell Barcode Label
Part #: E10997 | SKU: HON10215

Thermal Transfer Labels (2.0 in. x 1.0 in. - 5,330 Labels/Roll, 8 Rolls/Case). Minimum Order Quantity: $350
Honeywell Barcode Label
Part #: E22751 | SKU: HON37200

Intermec Duratherm E22751 Lightning Thermal Label - 2" Width x 1" Length - Permanent Adhesive - Rectangle - Direct Thermal - Paper - 4360 / Roll - 8 / Carton. Minimum Order Quantity: $350

View All Options

Recommended Printheads for Model: Intermec EasyCoder 3240 Barcode Label Printer

Honeywell Printhead
Part #: 062705S-001 | SKU: HON813

EasyCoder 3240, Replacement Printhead Kit, 406 dpi, Compatible Printer Model EasyCoder 3240

View All Options

Recommended Ribbons for Model: Intermec EasyCoder 3240 Barcode Label Printer

Honeywell Ribbon
Part #: 13023006 | SKU: HON8466

ThermaMax 3202 Resin, 3" x 500' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 36, Core Size: 1"
Honeywell Ribbon
Part #: 12084106 | SKU: HON8457

ThermaMax 2202 Mid-Range, Wax-Resin Ribbon, 4.1" x 500' Black, rolls/case: 12, Core Size: 1". Compatible with Industrial printers and Polypropylene Labels.
Honeywell Ribbon
Part #: 11072006 | SKU: HON8428

ThermaMax 1407 Wax, 2" x 500' Black Wax Ribbon. Compatible with Industrial Printers. 36 ribbon case. Used with paper labels.
Honeywell Ribbon
Part #: 12043204 | SKU: HON8445

3.2" x 299' Black Wax-Resin Ribbon - Compatible with Desktop printers and Polypropylene Labels - Rolls per Case: 24 - Core Size: 0.5". Minimum Order Quantity: $350
Honeywell Ribbon
Part #: 12072218 | SKU: HON8455

ThermaMax 2202 Mid-Range, 2.2" x 1500' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 12 ribbon case. Used with polypropylene labels.

View All Options

Intermec EasyCoder 3240 Barcode Label Printer
