model-14702 model-14702 model-14702 Honeywell

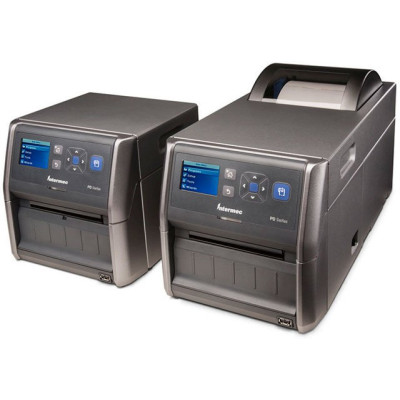

Honeywell PD43 Barcode Label Printer Honeywell PD43 Barcode Label Printer

Honeywell PD43 Barcode Label Printer

Honeywell PD43 Barcode Label Printer

The PD43 family of light industrial thermal printers incorporate the latest printing innovations into a compact and affordable package. Ideal for tight spaces, shallow countertops, and pull-out cabinets, the PD series was designed to deliver no-compromise printing performance in the smallest possible footprint. The PD43 takes industrial printing to a new level of simplicity, with a color graphic display that makes it easier to set up, configure and fine-tune settings without the need for a host computer. In fact, with Smart Printing capabilities, the PD43 can run apps right inside the printer""eliminating the need for a connected PC entirely.
Starting at: MSRP: $2,307.46 Price: $1,811.86
See all options

Physical Characteristics

Length:
PD43 with Standard Door: 470 mm (18.5 in)
PD43 with Flat Top Door: 470 mm (18.5 in)
PD43c: 236 mm (9.3 in)
PD43c with Optional External Media Holder: 432 mm (17.0 in)
Width:
PD43 with Standard Door: 211 mm (8.3 in)
PD43 with Flat Top Door: 211 mm (8.3 in)
PD43c: 211 mm (8.3 in)
PD43c with Optional External Media Holder: 211 mm (8.3 in)
Height:
PD43 with Standard Door: 249 mm (9.8 in)
PD43 with Flat Top Door: 209 mm (8.2 in)
PD43c: 205 mm (8.1 in)
PD43c with Optional External Media Holder: 217 mm (8.5 in)
Weight:
PD43 with Standard Door: 8.4 kg (18.5 lbs)
PD43 with Flat Top Door: 8.3 kg (18.3 lbs)
PD43c: 5.1 kg (11.2 lbs)
PD43c with Optional External Media Holder: 6.0 kg (13.2 lbs)

Print Specifications

Max Print Width: 104 mm (4.1 in)
Print Speed: 203 mm/s (8.0 ips) @ 8.0 dpmm (203 dpi), 152 mm/s (6.0 ips) @ 11.8 dpmm (300 dpi)
Resolution: 8.0 dpmm (203 dpi), 11.8 dpmm (300 dpi)

Media Compatibility

Max. Media Diameter (OD):
• PD43 with Standard Door: 213 mm (8.375 in)
• PD43 with Flat Top Door: 152 mm (6.0 in)
• PD43c with External Media Holder: 203 mm (8.0 in)
Media Core Sizes (ID): 1, 1.5, 3 in
Media Width: 19 mm (0.75 in) to 118 mm (4.65 in)
Label Length: 6.4 mm (0.25 in) to 172.7 cm (68.0 in)

Ribbon Compatibility

Ribbon Support Coated Side In, Coated Side Out
Max. Ribbon Diameter 68 mm (2.68 in)
Ribbon Core Sizes 0.5, 1 in
Ribbon Width 25.4 mm (1 in) to 110.0 mm (4.3 in)
Max. Ribbon Length 300 m (984 ft)

Supported Bar Code Symbologies

Native Graphic Formats: BMP, GIF, PCX, PNG
Barcode Symbologies: All Major 1D, 2D, & Composite Symbologies

Environment

Operating Temperature: +5° to +40°C (+40° to +104°F) @ 10-80% RH Non-Condensing
Storage Temperature: -40° to +60°C (-40° to +140° F) @ 85% RH

Memory

Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB (via User USB Thumbdrive)

Communications Interface

Standard Interfaces: USB Device, USB Host1
Optional – via Adapter Cables: Internal Ethernet (NIC), Parallel Port, Serial Port
Optional – Factory/Service Installable: Bluetooth™ & Wireless 802.11 b/g/n, HF/UHF RFID, Internal Ethernet (NIC)
Protocols – Wireless: WEP Dynamic; WEP Static (64/128 bits); WPA; WPA2; EAP (FAST, PEAP, TLS, TTLS); LEAP
Protocols – Serial Flow Control: XON/XOFF, RTS/CTS (DTR/DSR)
Certifications: Cisco CCXv4, Wi-Fi®

Interfaces

Display: Color Graphic Display or Icon Display
Languages – Standard: English, French, German, Italian, Portuguese, Russian, Spanish
Languages – Optional: Simplified Chinese, Traditional Chinese, Korean

Software

Printer Command Languages: Direct Protocol, IPL, DSim (DPL), ESim (EPL), ZSim (ZPL), XML-Enabled for SAP All & Oracle® WMS
Smart Printing Languages: C# for Printers, Fingerprint
Developer Tools: Smart Printing Developer Resource Kit, Intermec Fingerprint Application Builder (IFAB)
Applications & Drivers: InterDriver Windows Printer Driver, Certified Device Types for SAP, BarTender Ultralite
Device Management: PrintSet, SmartSystems™, Wavelink Avalanche™
Character Sets: English & Extended Latin, Arabic, Baltic & Baltic Rim, Cyrillic, Greek, Hebrew, Thai, Turkish, Vietnamese, & More with Monotype Universal Font Scaling Technology (UFST®) & WorldType Layout Engine (WTLE)
Resident Fonts: Andale Mono, Andale Mono Bold, Century™ Schoolbook, CG Times™, CG Times Bold, CG Triumvirate Bold Condensed, Letter Gothic™, OCR-A, OCR-B, Univers®, Univers Bold, Univers Condensed Bold, Univers Extra Condensed
Additional Fonts: Support for TrueType and TrueType-based OpenType Fonts, User-Downloadable Fonts

Extended Details
Refine Your Options
  1. Honeywell Barcode Label Printer

    Honeywell Barcode Label Printer
    Part #: PD43A03000050202 | SKU: HON665513

    Barcode Label Printer - Honeywell PD43 - PD43 - Thermal Transfer - 203 dpi - No Ethernet - Cutter - Tray - European Power Cord
    MSRP: $2,307.46 Price: $1,811.86
  2. Honeywell Barcode Label Printer

    Honeywell Barcode Label Printer
    Part #: PD43A031EU010202 | SKU: HON665515

    Barcode Label Printer - Honeywell PD43 - PD43A - Thermal Transfer - 203 dpi - Color Display - Ethernet - European RFID UHF - European Power Cord
    MSRP: $3,664.36 Price: $2,877.31
  3. Honeywell Barcode Label Printer

    Honeywell Barcode Label Printer
    Part #: PD43CTA300421S12 | SKU: HON665518

    Barcode Label Printer - Honeywell PD43 - No Ethernet - Direct Thermal - 203 dpi - Compact Ai - EU
    MSRP: $2,637.08 Price: $2,070.69
  4. Honeywell Barcode Label Printer

    Honeywell Barcode Label Printer
    Part #: PD43A03100010301 | SKU: HON338619

    Industrial barcode printer - Honeywell PD43 - thermal transfer - 300 dpi - 4.10" print width - 8" per second print speed - USB/Ethernet. Includes US power cord.
  5. Intermec Barcode Label Printer

    Intermec Barcode Label Printer
    Part #: PD43A031NA010201 | SKU: INT338620

    Thermal Transfer Printer, 203 dpi, Ethernet and USB Interfaces, RFID UHF. Includes US power cord.
  6. Honeywell Barcode Label Printer

    Honeywell Barcode Label Printer
    Part #: PD43A03100000211 | SKU: HON338618

    Light Industrial Printer - Intermec PD43 - Direct Thermal - 203 dpi - 8ips - LCD/Fingerprint Firmware/Z Sim 2 - Ethernet/USB Host/USB - LCD Display - US Power Cord
  7. Intermec Barcode Label Printer

    Intermec Barcode Label Printer
    Part #: PD43A03100010201 | SKU: INT347106

    Light Industrial Printer - Intermec PD43A - Thermal Transfer - 203 dpi - 8ips - LCD/Fingerprint Firmware/Z Sim 2 - Ethernet/USB Host/USB - LCD Display - US Power Cord
  8. Honeywell Barcode Label Printer

    Honeywell Barcode Label Printer
    Part #: PD43A03300010201 | SKU: HON338621

    Light Industrial Printer - Intermec PD43 - Thermal Transfer - 203 dpi - 8ips - LCD/Fingerprint Firmware/Z Sim 2 - Bluetooth/Ethernet/USB Host/USB/Wireless - LCD Display - US Power Cord
  9. Intermec Barcode Label Printer

    Intermec Barcode Label Printer
    Part #: PD43A03000010201 | SKU: INT338616

    Thermal Transfer Printer, 203 dpi, USB Interface. Includes US power cord.
  10. Intermec Barcode Label Printer

    Intermec Barcode Label Printer
    Part #: PD43A03000000211 | SKU: INT338615

    Direct Thermal Printer, 203 dpi, USB Interface. Includes US power cord.

Items 1 to 10 of 19 total

Page:
  1. 1
  2. 2

Recommended Accessories for Model: Honeywell PD43 Barcode Label Printer

  • Honeywell Cables, Connectors, and Adapters
    Part #: 321-576-004 | SKU: HON21353

    Cable, USB-A to USB-B, 2meter (Use with CK30/31 225-709-001/225-709-002 comm dock for connection to PC.)

  • Cables To Go Accessory
    Part #: 3019 | SKU: CAB143489

    Cables, Serial printer cable, 9-pin to 25-pin, 6 ft. Replaces (Part# PCM-1970-06).
    Price: $14.09
    In Stock

  • Honeywell Accessory
    Part #: 225-781-001 | SKU: HON300148

    Ribbon Adapter Accessory for the PC43T
    MSRP: $43.34 Price: $34.31
    In Stock

  • Honeywell Accessory
    Part #: 225-783-001 | SKU: HON497020

    PRINTHEAD, PC43, 203 DPI
    MSRP: $305.87 Price: $260.75
    In Stock

  • Honeywell Accessory
    Part #: 213-004-001 | SKU: HON287164

    Spare, Spring for Tag Media
    Price: $18.60
View All Options

Recommended Labels for Model: Honeywell PD43 Barcode Label Printer

  • Honeywell Wristbands
    Part #: INBND27864-W | SKU: HON248286

    INBAND II PATIENT ID WRISTBAND - DIRECT THERMAL - 1" X 11" - 1" CORE - 5" OD - 150 LABELS PER ROLL - PERFORATED - 4 ROLLS PER CASE. Minimum Order Quantity: $350
    MSRP: $152.28 Price: $131.13

  • Honeywell Duratran II Barcode Label
    Part #: E25752 | SKU: HON128915

    Intermec Duratran II Label - 4" Width x 3" Length - Permanent Adhesive - Rectangle - Thermal Transfer - Paper - 860 / Roll - 8 Roll. Minimum Order Quantity: $350

  • Honeywell Duratherm Receipt Barcode Label
    Part #: E15520 | SKU: HON10139

    Thermal Transfer Label (2.25 Inch x 1.25 Inch, Paper, 1200 Labels/Roll and 8 Rolls/Carton). Minimum Order Quantity: $350

  • Honeywell Barcode Label
    Part #: E04811 | SKU: HON10189

    Thermal Transfer Labels (4.0 in. x 6.0 in. - Fanfold, 6,000 Labels-Case). Minimum Order Quantity: $350

  • Honeywell Duratran II Barcode Label
    Part #: E17012 | SKU: HON10232

    Thermal Transfer Labels (3.0 in. x 1.0 in. - 8 Rolls/Case). Minimum Order Quantity: $350
View All Options

Recommended Printheads for Model: Honeywell PD43 Barcode Label Printer

  • Honeywell Accessory
    Part #: 225-783-001 | SKU: HON497020

    PRINTHEAD, PC43, 203 DPI
    MSRP: $305.87 Price: $260.75
    In Stock

  • Honeywell Printhead
    Part #: 225-784-001 | SKU: HON418202

    PRINTHEAD, 300DPI, FOR PC43
View All Options

Recommended Ribbons for Model: Honeywell PD43 Barcode Label Printer

  • Honeywell Ribbon
    Part #: 12043204 | SKU: HON8445

    3.2" x 299' Black Wax-Resin Ribbon - Compatible with Desktop printers and Polypropylene Labels - Rolls per Case: 24 - Core Size: 0.5". Minimum Order Quantity: $350

  • Honeywell Ribbons Ribbon
    Part #: 13633111 | SKU: HON128858

    ThermaMax 3202 Resin, 3.1" x 900' Black Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polyester labels.

  • Honeywell Ribbons Ribbon
    Part #: 12234012 | SKU: HON128852

    4.09" x 900' Black Wax/Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Priced per case. Used with polypropylene labels.

  • Honeywell Ribbons Ribbon
    Part #: 11232211 | SKU: HON128844

    2.35" x 900' Black Wax Ribbon. Compatible with Desktop Printers. 36 ribbon case. Used with paper labels. Minimum Order Quantity: $350

  • Honeywell Ribbons Ribbon
    Part #: 13634012 | SKU: HON191901

    ThermaMax 3202 Resin, 4.1" x 900' Black Resin Ribbon. Compatible with Desktop Printers. 24 ribbon case. Used with polyester labels.
View All Options

Recommended Warranties for Model: Honeywell PD43 Barcode Label Printer

  • BCI Service Contract
    Part #: TRUESUPPORT-BAS-PRINT-1YR | SKU: BCI665134

    TrueSupport Basic Plan for Printers - 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.
    Price: $66.00
    In Stock

  • Honeywell Service Contract
    Part #: SVCPD43-EXW1R | SKU: HON499996

    SERVICE CONTRACT, PD43, BASIC, 10-15 DAY TURN, 1 YEAR RENEWAL OR POSTSALES CONTRACT
    MSRP: $79.58 Price: $67.85
    In Stock

  • Honeywell Service Contract
    Part #: SVCPD43-EXW2 | SKU: HON499997

    SERVICE CONTRACT, PD43, BASIC, 10-15 DAY TURN, 2 YEARS (1 YR FACTORY WARRANTY + 1 YR EXTENDED)
    MSRP: $65.05 Price: $55.46
    In Stock

  • Honeywell Service Contract
    Part #: SVCPD43-EXW3 | SKU: HON499998

    SERVICE CONTRACT, PD43, BASIC, 10-15 DAY TURN, 3 YEARS (1 YR FACTORY WARRANTY + 2 YR EXTENDED)
    MSRP: $127.03 Price: $108.31
    In Stock

  • Honeywell Service Contract
    Part #: SVCONSITE-PRN1 | SKU: HON539458

    AddOn, Edge Service, Onsite Service, Printer, 1 Year
    MSRP: $228.22 Price: $194.57
    In Stock
View All Options
