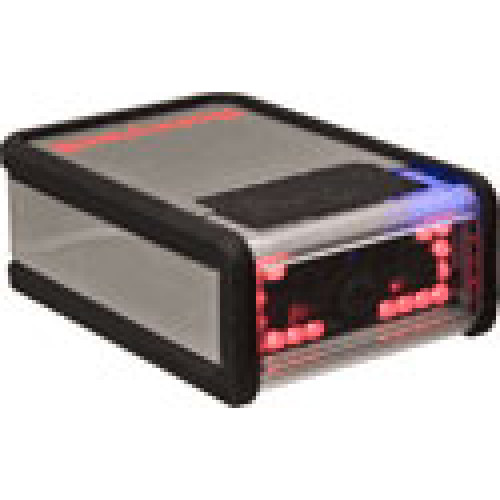

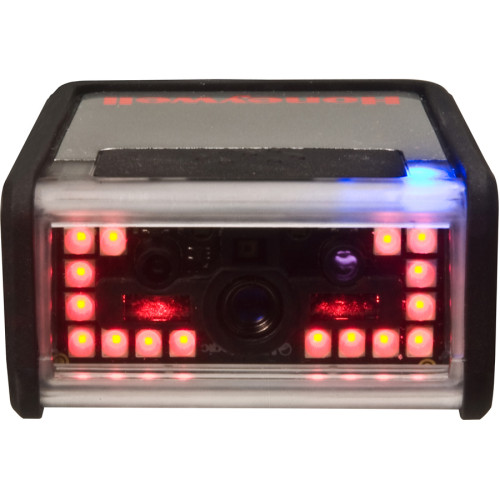

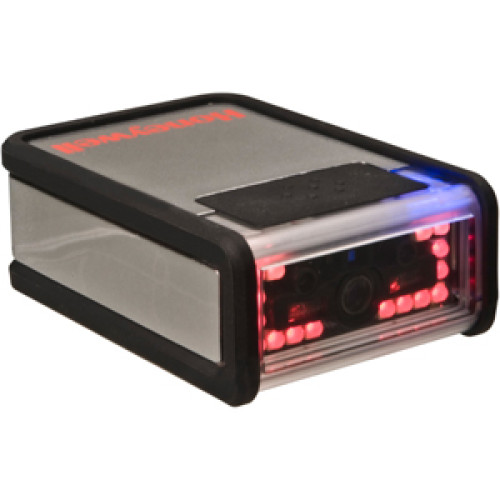

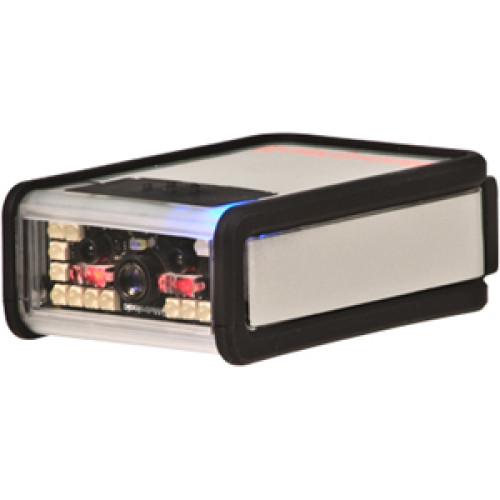

Honeywell Fixed Barcode Scanner
Part #: MK4980-30B47-12 | SKU: HON65501

The MS4980 is a compact area-imaging scanner that offers aggressive scanning of all 1D, PDF and 2D bar codes in a lightweight, durable and portable form factor. The scanner also features a sleek and elegant design that blends seamlessly in retail environments.

Honeywell Fixed Barcode Scanner

Part Details: Honeywell Vuquest MS4980 Mountable Bar Code Reader - Cable Connectivity - 1D, 2D - LED - CMOS - Keyboard Wedge - Gray

InStock

Need a different version of the Honeywell MS4980 VuQuest Fixed Barcode Scanner? View all 7 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Honeywell
Model Name	MS4980 VuQuest

Honeywell MS4980 VuQuest Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Connectivity Technology: Cable
Light Source: LED
Image Sensor: CMOS
Barcode Symbology Supported:
- Linear:
- China Post
- Codabar (NW7)
- Code 11
- Code 128
- Code 32
- Code 39
- Code 93 and 93i
- Code 2 of 5
- EAN
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- GS1 DataBar (Formerly RSS)
- Telepen
- Trioptic Code
- UPC
- Stacked:
- GS1 Composite (Formerly EAN/UCC)
- MicroPDF417
- PDF417
- Matrix:
- Aztec
- Chinese Sensible Code (Han Xin Code)
- Data Matrix
- MaxiCode
- QR Code
- Micro QR Code
- Linear:
- China Post
- Codabar (NW7)
- Code 11
- Code 128
- Code 32
- Code 39
- Code 93 and 93i
- Code 2 of 5
- EAN
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI
- Plessey
- GS1 DataBar (Formerly RSS)
- Telepen
- Trioptic Code
- UPC
- Stacked:
- GS1 Composite (Formerly EAN/UCC)
- MicroPDF417
- PDF417
- Matrix:
- Aztec
- Chinese Sensible Code (Han Xin Code)
- Data Matrix
- MaxiCode
- QR Code
- Micro QR Code
Maximum Scan Resolution: 5 mil
Depth of Field:
- 3.50" - 5.70"@5.20 mil - 1D
- 3.50" - 7.10"@7.50 mil - 1D
- 3.10" - 9.80"@10.40 mil - 1D
- 1.60" - 11.80"@13 mil - 1D
- 1.60" - 16.10"@26 mil - 1D
- 3.10" - 7.90"@7.50 mil - Data Matrix
- 3.50" - 8.50"@10 mil - Data Matrix
- 1.60" - 11.80"@15 mil - Data Matrix

General Information

Product Type: Fixed Mount Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: MS4980
Product Name: Vuquest MS4980 Mountable Barcode Reader
Product Line: Vuquest

Physical Characteristics

Height: 1"
Width: 1.9"
Depth: 2.9"
Color: Gray
Weight (Approximate): 2.50 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE

Warranty

Limited Warranty: 2 Year
