127592 127592 127592 Honeywell
Honeywell Barcode Label Printer Honeywell Barcode Label Printer Honeywell Barcode Label Printer

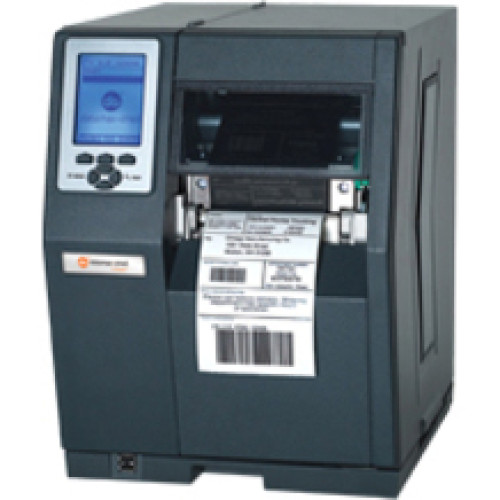

Honeywell Barcode Label Printer
Part #: C32-U8-48401004 | SKU: HON127592

Datamax-O-Neil H-4212X Direct Thermal Transfer Printer (203 dpi, 4.1 Inch Print Width, 12 ips Print Speed, Serial and Parallel Interfaces, MET Media Hub and 8MB Flash)

Honeywell Barcode Label Printer

Part Details: Industrial Printer - Datamax-O-Neil H-4212X - Thermal Transfer - 203 dpi - 12ips - Rewinder - Ethernet/Parallel/Serial/USB - 8MB Flash
InStock
Need a different version of the Honeywell H-4212X Barcode Label Printer? View all 12 configurations

Additional Information

Display Type LCD
Interface Options Ethernet, Parallel, Serial, Serial (RS-232), USB
Manufacturer AIDC Honeywell
Max Roll Outer Diameter 8
Model Name H-4212X
Print Resolution 203 dpi
Print Speed 12 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Honeywell H-4212X Specs Honeywell H-4212X Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Rewind
    • Real Time Clock
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • HIBC
    • Plessey
    • Codabar
    • UPC 2 and 5 Digit Addendums
    • POSTNET
    • UCC/EAN 128
    • Telepen
    • Planet Code
    • FIM
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • Macro PDF-417
    • TLC 39
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-4212X
  • Product Name: H-Class H-4212X Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 16.4"
  • Width: 12.6"
  • Depth: 19.3"
  • Form Factor: Desktop
  • Weight (Approximate): 47 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Fanfold
    • Roll Fed
    • Continuous Label
    • Die-cut Label
    • Perforated Label
    • Tag
    • Ticket Stock
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Fonts & Emulation

  • Language Emulation:
    • PLB
    • PLI
    • PLZ

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Other
