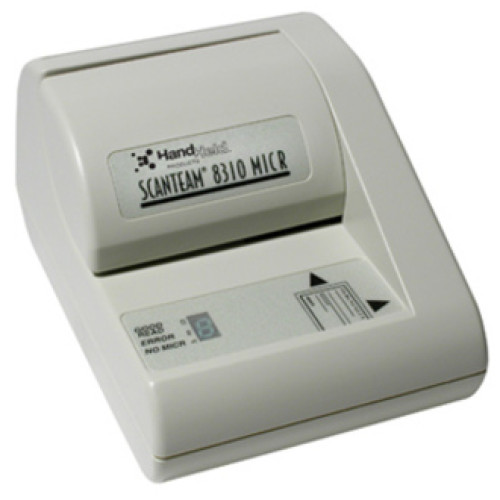

Honeywell ScanTeam ST 8310 Check Reader
Part #: 8310-23 | SKU: HON4739

The SCANTEAM 8310 is the reduced feature set member of the SCANTEAM 8300 family of check reader products. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product and a magnetic read head for MICR data capture. The SCANTEAM 8310 contains communications support for traditional PC COM ports for PC-POS applications many PC and video terminal keyboards in a keyboard wedge mode as well as support for communications with many Credit Authorization Terminals including HypercomTM Data CardTM Verifone TranzTM and ZONTM series products.

Honeywell ScanTeam ST 8310 Check Reader

Part Details: Honeywell ST8310 MICR Check Reader - Triple Track MSR

InStock

Need a different version of the Honeywell ScanTeam ST 8310 Check Reader? View all 3 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Honeywell
Model Name	ScanTeam ST 8310

Honeywell ScanTeam ST 8310 Specs (pdf)

Technical Information

Magnetic Stripe Configuration: Triple Track 1, 2 & 3
Interfaces/Ports:
- Keyboard Wedge
- RS-232
Input Voltage:
- 5 V DC
- 5 V DC - Regulated
MICR Fonts Supported:
- CMC-7
- E13-B
Input Voltage Range: 7 to 13.5 V DC
Interface Options:
- Keyboard Wedge
- RS-232

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Line: SCANTEAM
Product Name:
- SCANTEAM 8310 Magnetic Stripe Card Reader
- ST8310 MICR Check Reader

Physical Characteristics

Dimensions:
- 4.3" (109.22mm) x 4.08" (103.63mm) x 5.75" (146.05mm)
- 3.43" (87mm) x 4.71" (120mm) x 5.75" (146mm)
- 3.43" (87mm) x 4.71" (120mm) x x 5.75" (146mm)
Weight: 1.25 lb (0.57 kg)
Color: White

Agency Approvals

Agency Approvals:
- FCC Class A
- EMC 89/336/EEC and LVD 73/23/EEC
- FCC Class A EMC 89/336/EEC LVD 73/23/EEC
- FCC Class AEMC 89/336/EECLVD 73/23/EEC

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -18Â°C (0Â°F) to 60Â°C (140Â°F) Storage
Humidity: 95% Non-condensing

Warranty

Manufacturer Warranty: 1 Year(s) Limited
