Additional Information
| Interface Options | PS/2 Keyboard Wedge |
|---|---|
| Manufacturer AIDC | Honeywell |
| Model Name | 4600g |
| Scanner Capability | 1D |

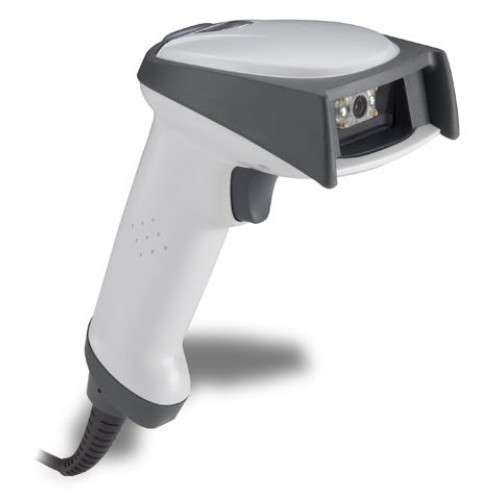

Honeywell 4600g Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Connectivity Technology: Cable
- Light Source: LED
- Image Sensor: Imager
- Barcode Symbology Supported:
- 2 Dimensional:
- PDF417
- MicroPDF417
- MaxiCode
- Data Matrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN UCC Composite
- Linear:
- Code 39
- Code 128
- Codabar
- UPC
- EAN
- RSS
- Code 93
- Codablock F
- Postal :
- Posnet (US)
- Planet Code
- BPO State
- Canadian State
- Japanese Post
- KIX (Netherlands) Post
- OCR Fonts:
- OCR-A
- OCR-B
- 2 Dimensional:
- PDF417
- MicroPDF417
- MaxiCode
- Data Matrix
- QR Code
- Aztec
- Aztec Mesas
- Code 49
- EAN UCC Composite
- Linear:
- Code 39
- Code 128
- Codabar
- UPC
- EAN
- RSS
- Code 93
- Codablock F
- Postal :
- Posnet (US)
- Planet Code
- BPO State
- Canadian State
- Japanese Post
- KIX (Netherlands) Post
- OCR Fonts:
- OCR-A
- OCR-B
- Maximum Scan Resolution: 35 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Honeywell
- Manufacturer: Honeywell International, Inc
- Product Model: 4600gSR
- Product Name: 4600gSR Barcode Reader
Physical Characteristics
- Height: 6.2"
- Width: 3.2"
- Depth: 5.3"
- Color: Gray
- Weight (Approximate): 6.50 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Package Contents:
- 4600gSR Barcode Reader
- Coiled Keyboard Wedge Cable
- User Documentation
- 4600gSR Barcode Reader
- Coiled Keyboard Wedge Cable
- User Documentation
- Certifications & Standards:
- RoHS
- International:
- CB scheme to IEC60950-1
- CB scheme to IEC60825-1 Class 1 LED
- USA:
- FCC Part 15 subpart B Class A. UL listed to 60950-1.
- Canada:
- ICES-003 Class A. cUL listed to CSA C22.2 No. 60950-1-03.
- Europe:
- CE 2004/108/EC EMC Directive to EN55022 Class A
- EN55024
- EN61000-3-2
- EN61000-3-3. 2006/95/EC Low Voltage Directive.
- GS Mark:
- I.T.E. safety.
- Australia/NZ:
- C-Tick mark.
- Laser Classification:
- Laser Aimer Model only: Class 2 Laser IEC60825-1. Complies with 21 CFR 1040.10 and 1040.11 with Laser Notice No. 50. 1mW max output, 650 nM
- Platform Supported: PC
- Additional Information:
- Supported Interfaces:
- All popular PCs and terminals via keyboard wedge
- keyboard replacement/direct connect
- USB
- TTL level RS-232
- Wand Emulation (primary interface only) mode
- TTL level Serial Wedge
- IBM 46XX retail terminals.
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 5 V DC
