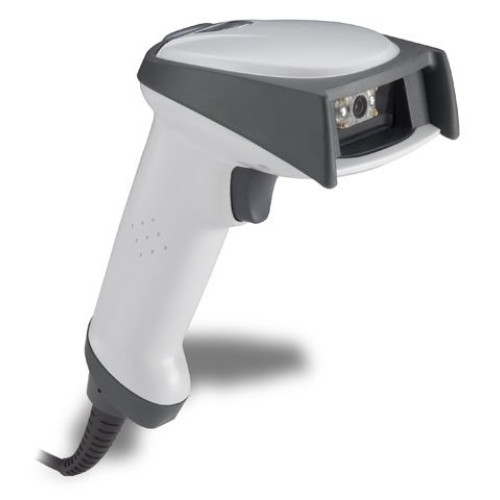

Honeywell Barcode Scanner
Part #: 30207-011956E | SKU: HON37086

Featuring the right blend of durability, ergonomics and connectivity options, the 4600g is perfect for a broad range of applications requiring the power and versatility of a 2D imager. Ideal for use in retail, pharmacy, manufacturing and postal applications.

Honeywell Barcode Scanner

Part Details: General Purpose 2d Image Scanner, Hand held, USB, USB kit included, Gray

InStock

Need a different version of the Honeywell 4600g HD Barcode Scanner? View all 6 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Honeywell
Model Name	4600g HD
Scanner Capability	1D
Scanner Type	Imager

Honeywell 4600g HD Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- Linear:
- ABC Codabar (American Blood Commission)
- BC412
- China Post
- Codabar
- Code 11
- Code 128
- Code 32 Pharmaceutical (PARAF)
- Code 39
- Code 93 and 93i
- EAN-13 (including Bookland EAN)
- EAN-13 with Add-On
- EAN-13 with Extended Coupon Code
- EAN-8
- EAN-8 with Add-On
- GS1 Databar Expanded
- GS1 Databar Limited
- GS1 DataBar Omnidirectional
- GS1 Databar Truncated
- GS1-128
- Interleaved 2 of 5
- ISBT 128
- ITF-14
- Label Code
- Matrix 2 of 5
- MSI-Plessey
- UK Plessey Code
- PosiCode
- Straight 2 of 5 IATA
- Straight 2 of 5 Industrial
- Telepen
- Trioptic Code
- UPC-A
- UPC-A with Add-On
- UPC-A with Extended Coupon Code
- UPC-E
- UPC-E with Add-On
- UPC-E1 (obsolete)
- Stacked:
- Codablock F
- Code 16K
- Code 49
- GS1 Composite
- GS1 Databar Expanded Stacked
- GS1 Databar Stacked
- GS1 Databar Stacked Omnidirectional
- MicroPDF417
- PDF417
- TCIF Linked Code 39 (TLC39)
- Matrix:
- Aztec Code
- Aztec Mesas
- Chinese Sensible Code (Han Xin Code)
- Data Matrix
- Grid Matrix Code
- MaxiCode
- QR Code and Micro QR Code
- Postal:
- Australian Post
- British Post
- Canadian Post
- ID-tag (UPU 4-State)
- Intelligent Mail Barcode
- Japanese Post
- Netherlands (KIX) Post
- Korea Post
- Planet Code
- Postnet
- OCR:
- OCR MICR (E 13 B)
- OCR SEMI Font
- OCR US Money Font
- OCR-A
- OCR-B
- Linear:
- ABC Codabar (American Blood Commission)
- BC412
- China Post
- Codabar
- Code 11
- Code 128
- Code 32 Pharmaceutical (PARAF)
- Code 39
- Code 93 and 93i
- EAN-13 (including Bookland EAN)
- EAN-13 with Add-On
- EAN-13 with Extended Coupon Code
- EAN-8
- EAN-8 with Add-On
- GS1 Databar Expanded
- GS1 Databar Limited
- GS1 DataBar Omnidirectional
- GS1 Databar Truncated
- GS1-128
- Interleaved 2 of 5
- ISBT 128
- ITF-14
- Label Code
- Matrix 2 of 5
- MSI-Plessey
- UK Plessey Code
- PosiCode
- Straight 2 of 5 IATA
- Straight 2 of 5 Industrial
- Telepen
- Trioptic Code
- UPC-A
- UPC-A with Add-On
- UPC-A with Extended Coupon Code
- UPC-E
- UPC-E with Add-On
- UPC-E1 (obsolete)
- Stacked:
- Codablock F
- Code 16K
- Code 49
- GS1 Composite
- GS1 Databar Expanded Stacked
- GS1 Databar Stacked
- GS1 Databar Stacked Omnidirectional
- MicroPDF417
- PDF417
- TCIF Linked Code 39 (TLC39)
- Matrix:
- Aztec Code
- Aztec Mesas
- Chinese Sensible Code (Han Xin Code)
- Data Matrix
- Grid Matrix Code
- MaxiCode
- QR Code and Micro QR Code
- Postal:
- Australian Post
- British Post
- Canadian Post
- ID-tag (UPU 4-State)
- Intelligent Mail Barcode
- Japanese Post
- Netherlands (KIX) Post
- Korea Post
- Planet Code
- Postnet
- OCR:
- OCR MICR (E 13 B)
- OCR SEMI Font
- OCR US Money Font
- OCR-A
- OCR-B
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1.90" - 3.80"@5 mil
- 1.60" - 6.20"@13 mil - UPC
- 1.60" - 4.50"@6.60 mil - PDF
- 2.40" - 3.50"@6.70 mil - DM
- 2.30" - 3.40"@6.70 mil - QR

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 4600g
Product Name: 4600g Barcode Reader

Physical Characteristics

Height: 6.2"
Width: 3.2"
Depth: 5.3"
Weight (Approximate): 6.50 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Warranty

Limited Warranty: 5 Year
