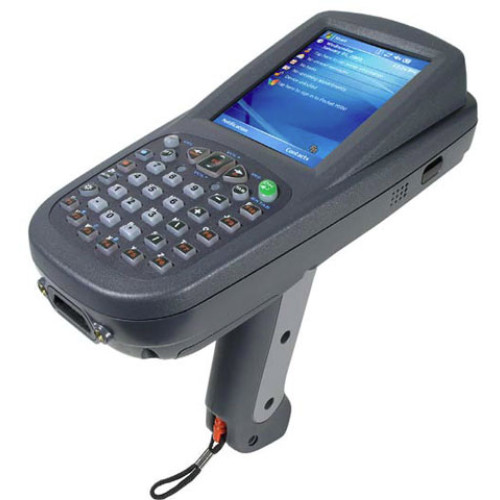

Honeywell Dolphin 7850 Specs
Basic Features
| Form Factor: | Purpose-built, compact, handle-style mobile computer |
| Operating System: | Microsoft Windows Mobile 5.0 |
| Development Environment: | Hand Held Products Dolphin SDK for Visual Studio 2005 - supports C/C++, C# and Visual Basic development on Visual Studio 2005 |
| Third Party Software: | SOTI MobiControl (remote device management), PowerNet Terminal Emulation (TNVT, 3270, 5250), and ITScriptNet |
| CPU: | Intel PXA 270 520 MHz |
| Memory: | 64MB X 64MB & 128 MB RAM X 128 MB Flash memory options available |
| Display: | 3.5 in. 1/4 VGA 240 X 320 TFT color display with hard-coat industrial touch panel |
| Imager/Scanner: | 5100SR/SF VGA Area Imagers with bright green LED aimer 5300SR/SF VGA Area Imagers with High-Vis aiming pattern 5300HD VGA Area Imagers with High-Vis aiming pattern HP (High Performance) Laser scanner (future option) LR (Long Range) Laser scanner (future option) ALR (Advanced Long Range) Laser scanner (future option) |
| Keyboards: | 24-key calculator-style numeric with scrolling alpha 38-key calculator-style numeric with full alpha |
| Communications: | 100K duty-cycle plugable/dockable RS232/USB connector, IrDA, Audio beeper |
Power
| Battery: | Main: Lithium-ion 7.4V, 14.1 Watt-hour, hot-swappable battery
pack Backup: Internal 3.6V nickel metal hydride (NiMH) battery saves RAM data for 30-minutes during main battery change |
| Run Time (estimated): | WLAN: 10+ hours at 1 scan/6 sec, 1 data package logged every scan, 802.11b/g continuous connection, & display backlight on full |
| Stand-by Time: | Device suspend mode: 8 days minimum |
| Charging: | 9.5V AC input through handle charge port or USB/Serial connector, four hours recharge |
| Charging Peripherals: | AC wall adapter, Charge/Communication Cable, single bay Home Base, 4 bay Charge Base, battery Quad Charger |
Wireless Radios
| WLAN Standard: | 802.11b/g, Wi-Fi Certified |
| WLAN Security: | WEP, WPA Personal/Enterprise, WPA2 Personal/Enterprise, EAP-TLS, TTLS, LEAP, PEAP, Cisco CCX compliant (pending) |
| WPAN (optional): | Bluetooth class 2, version 1.2 (optional feature) |
| Co-Located/Operational: | Two radios: WLAN/WPAN |
Physical
| Operating Temperature: | Standard configuration is 14°-122°F / -10°-50°C nominal; -4°
(-20°C) with reduced runtime Optional Bluetooth configuration is 32°-104°F / 0°-40°C |
| Construction: | Magnesium alloy internal chassis with component shock
mounts Engineering-grade polycarbonate outer housing with integrated rubber over-molded handle |
| Structural: | 5 ft. (1.5m) multiple drops to concrete, all axis, across
operating temperature range Exceeds 2000 3 ft. (1m) tumbles |
| Environmental: | IP64 rated for blown dust/water intrusion |
| Dimensions: | Main housing: 7.1 in. Long X 3.3 in. Wide X 1.4 in. Deep (18 cm
Long X 8.4 cm Wide X 3.6 cm Deep) Handle: 4.6 in. Long X 1.6 in. Wide X 1 in. Deep (12 cm Long X 4.1 cm Wide x 2.5 cm Deep) |
| Weight: | Approximately 22 oz/684g |
Warranty
| Standard: | 2 years |
Refine Your Options
-
Honeywell Mobile Computer
Part #: 7850L0-D2-5110E | SKU: HON34166Honeywell Dolphin 7850 Mobile Computer - Intel XScale 520 MHz - 64 MB RAM - 64 MB Flash - 3.5" LCD - 38 Keys - Alphanumeric Keyboard - Wireless LAN -
Honeywell Mobile Computer
Part #: 7850L0-D2-5210E | SKU: HON34167Honeywell Dolphin 7850 Mobile Computer - Intel XScale 520 MHz - 128 MB RAM - 128 MB Flash - 3.4" LCD - 38 Keys - Alphanumeric Keyboard - Wireless LAN -
Honeywell Mobile Computer
Part #: 7850LP-A1-5210E | SKU: HON34169Honeywell Dolphin 7850 Mobile Computer - Intel XScale 520 MHz - 128 MB RAM - 128 MB Flash - 3.5" LCD - 24 Keys - Alphanumeric Keyboard - Wireless LAN - Bluetooth -
Honeywell Mobile Computer
Part #: 7850LP-A2-5210E | SKU: HON34170Honeywell Dolphin 7850 Mobile Computer - Intel XScale 520 MHz - 128 MB RAM - 128 MB Flash - 3.5" LCD - 38 Keys - Alphanumeric Keyboard - Wireless LAN - Bluetooth -
Honeywell Dolphin 7850 Mobile Computer
Part #: 7850B0-A1-3110E | SKU: HON59013Honeywell Dolphin 7850 Mobile Computer - Intel XScale PXA270 312MHz - 64MB RAM - 64MB Flash - 3.5" QVGA Active Matrix TFT LCD -
Honeywell Dolphin 7850 Mobile Computer
Part #: 7850L0-A1-3110E | SKU: HON72920Honeywell Dolphin 7850 Mobile Computer - Intel XScale 312MHz - 64MB RAM - 64MB Flash - 3.5" QVGA LCD
