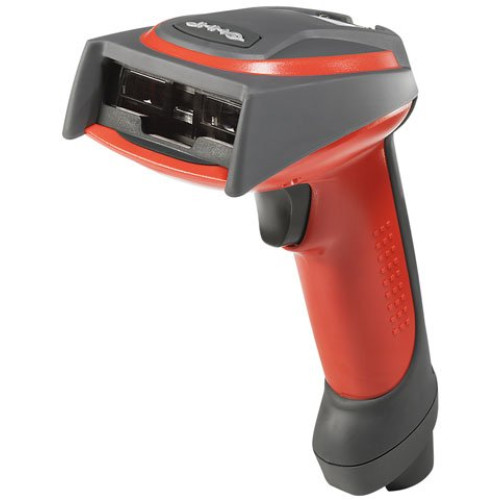

Hand Held Barcode Scanner
Part #: 5800SR050-0G00 | SKU: HAN8650

The IMAGETEAM 5800 Industrial image readers are the first industrial class readers to bring you Hand Held Products industry-leading image technology, allowing you to read bar codes at ranges exceeding 82 inches (208cm).----In addition to read range, the IT5800s key differentiator is its ability to withstand the most demanding industrial environments. Packaged with co-molded rubber polymers, the housing will absorb the shock from repeated drops and continue to outperform all bar code readers in its class.

Hand Held Barcode Scanner

Part Details: ImageTeam 5800, industrial linear imager with Keyboard wedge, USB & RS-232 interfaces. Includes user's guide. Order cables separately. See accessories.

InStock

Need a different version of the Hand Held ImageTeam 5800 Barcode Scanner? View all 2 configurations

Specs & Info

Additional Information

Form Factor	Handheld
Manufacturer AIDC	Hand Held
Model Name	ImageTeam 5800
Scanner Capability	1D
Scanner Type	Imager

Hand Held ImageTeam 5800 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 7.5 mil(s)
Symbologies Supported:
- Codabar
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Post
- RSS
- Code 39
- China Postal Code
Scanner Type: Imager
Scan Rate: 270 Scans/sec
Interface Options:
- Keyboard Wedge
- TTL level RS-232
- IBM 46XX
- Wand
- USB
Interface Connectivity: Corded
Depth of Field:
- 6.5 - 15"@7.5mils
- 2.5 - 28" - 100% UPC
- 2.5 - 31"@15mils
- 1.5 - 42"@20mils
- 4 - 82"@55mils

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Line: IMAGETEAM
Product Name: IMAGETEAM 5800 Standard Range Industrial Barcode Scanner

Physical Characteristics

Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
Weight: 7.5 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- UL
- cUL
- TUV

Environmental Conditions

Temperature:
- -22Â°F (-30Â°C) to 122Â°F (50Â°C) Operating
- -40Â°F (-40Â°C) to 140Â°F (60Â°C) Storage
Humidity: 0 to 95% Non-condensing

Other

Package Contents:
- IMAGETEAM 5800 Standard Range Industrial Barcode Scannerr
- User's Guide

Warranty

Manufacturer Warranty: 3 Year(s)
