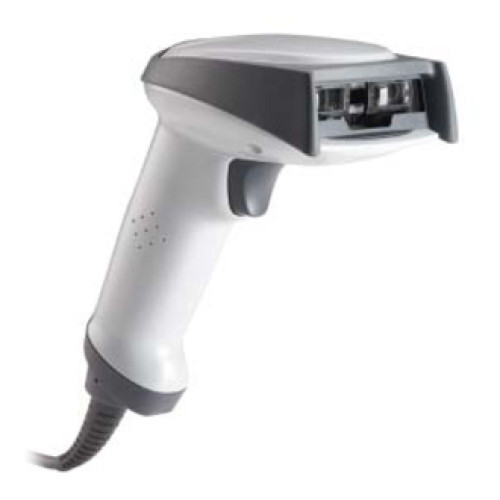

Hand Held Barcode Scanner
Part #: 5600SR150-0F00 | SKU: HAN15849

Hand Held Products exclusive imaging technology provides breakthrough performance in the IMAGETEAM (IT)5600 linear image. The most powerful linear imager ever produced, the IT5600 excels at read range, reading poor quality bar codes, and is extremely durable. ----The IT5600 has a read range out to 24 inches on bar codes used in retail applications making this a good choice for POS applications where heavy or bulky items are being scanned.----The IT5600 is built to last, with full perimeter bumpers, GE Lexan housing and a 5 year warranty.The IT 5600 linear imager goes the distance in today's retail and commercial applications.

Hand Held Barcode Scanner

Part Details: ImageTeam 5600, commercial and retail linear imager with USB interface. Includes user's guide, UHOLDER and Commercial USB Cable - 42206161-01. Color: Black

InStock

Need a different version of the Hand Held ImageTeam 5600 Barcode Scanner? View all 4 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Hand Held
Model Name	ImageTeam 5600
Scanner Capability	1D
Scanner Type	Imager

Hand Held ImageTeam 5600 Specs (pdf)

Technical Information

Scan Rate: 270 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Linear
Barcode Symbology Supported:
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- Code 25
- China Postal Code
- RSS
- GTIN Compliant
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- Code 25
- China Postal Code
- RSS
- GTIN Compliant
Maximum Scan Resolution: 5 mil
Depth of Field:
- 4" - 14"@7.50 mil
- 2" - 18"@10 mil - 80% UPC
- 1" - 24"@13 mil - 100% UPC
- 1" - 36"@20 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 5600
Product Name: IMAGETEAM 5600 Barcode Reader
Product Line: IMAGETEAM

Physical Characteristics

Height: 6.2"
Width: 3.2"
Depth: 5.3"
Color: Black
Weight (Approximate): 6.50 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- 5600 Handheld Barcode Reader
- Straight Commercial USB cable
- User's guide
- 5600 Handheld Barcode Reader
- Straight Commercial USB cable
- User's guide
Certifications & Standards:
- Emissions:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- Laser classification:
- IEC60825-1 Class 1
- Electrical:
- UL
- cUL listed
- TuV
Platform Supported: PC
Additional Information:
- Supported Interfaces:
- TTL level RS-232USBKeyboard WedgeWand EmulationTTL level Serial WedgeIBM 46XX

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 12 V DC

Extended Details
