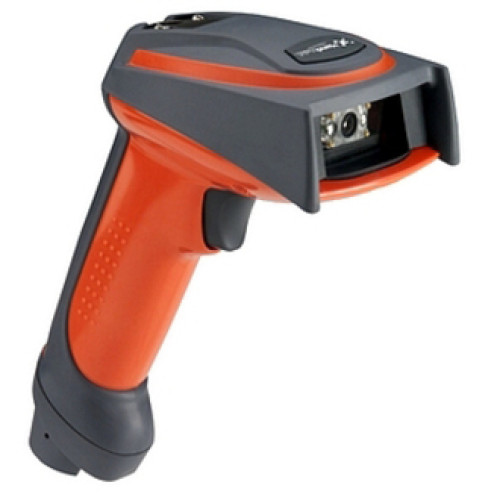

Hand Held Barcode Scanner
Part #: 4800SR051C-0DAA | SKU: HAN15181

The IMAGETEAM 4800 Industrial 2D Area Imager is the first hand held area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Hand Held Barcode Scanner

Part Details: ImageTeam 4800, RS-232, User Guide, Power supply, Flex Neck Stand, Green Aimer, Keyboard wedge and Complete Decode

InStock

Need a different version of the Hand Held ImageTeam 4800 Barcode Scanner? View all 8 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Hand Held
Model Name	ImageTeam 4800
Scanner Capability	1D

Hand Held ImageTeam 4800 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- Matrix
- PDF
- OCR
- Codabar
- Code 39
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Code 93
- Code 11
- Code 128
- UPC
- EAN/JAN
- RSS
- Postnet
- Planet Code
- British Post
- China Post
- Canadian Post
- Japanese Post
- KIX(Netherlands) Post
Scanner Type: Imager
Interface Options:
- Keyboard Wedge
- TTL level Serial Wedge
- IBM 468X/469X
- Wand Emulation
- USB
Interface Connectivity: Corded
Input Voltage Range: 4.5 to 12 V DC
Depth of Field:
- 2.9 - 7"@8mils - Linear
- 1.9 - 11.9"@13mils - UPC
- 3.9 - 5.7"@6.6mils - PDF417
- 2.5 - 8.4"@10mils - PDF417
- 3.1 - 5.9"@15mils - Data Matrix
- 1.4 - 12.4"@35mils - MaxiCode

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 4800 Industrial 2D Area Imager

Physical Characteristics

Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
Weight: 7.5 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL listed
- TÃ
