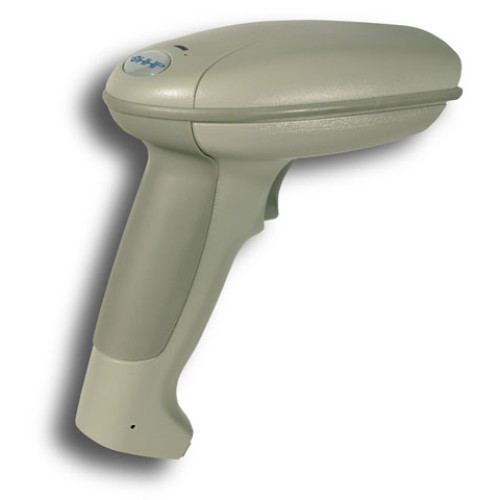

Hand Held Barcode Scanner
Part #: 3800PDF-12E | SKU: HAN24891

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held Barcode Scanner

Part Details: ImageTeam 3800, Scanner only, PDF417 capable, Long range, HHLC, Commercial interface. Cable not included. See accessories.

InStock

Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 28 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Hand Held
Model Name	ImageTeam 3800
Scanner Capability	1D

Hand Held ImageTeam 3800 Specs (pdf)

Technical Information

Scan Pattern: Linear
Scan Rate: 270 scan/s
Connectivity Technology: Cable
Light Source: LED
Image Sensor: Linear
Barcode Symbology Supported:
- PDF417
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- PDF417
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
Maximum Scan Resolution: 15 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 3800PDF
Product Name: 3800PDF Barcode Reader

Physical Characteristics

Height: 6"
Width: 3.1"
Depth: 5.3"
Color: Beige
Weight (Approximate): 6.30 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Certifications & Standards:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED Safety: Class 1
- UL
- cUL listed
- TUV
- RoHS
Platform Supported: PC
Additional Information:
- Supported Interfaces:
- Keyboard WedgeWand Emulation

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 5 V DC

Extended Details
