FEIG RFID Antenna

The FEIG ID ANT100/100 HF Antenna for proximity reader modules is the perfect addition to all of your eTicketing, eMobility, and Closed Loop Payment solutions. The ID ANT100/100 support systems according to ISO 14443-A/-B and ISO 15693. The ID ANT100/100 external antenna offers multiple supported HF reader modules.

The FEIG HF Antenna ID ANT310 / 310-A is distributed, already adjusted for most applications ex works. By means of jumpers the ID ANT310 / 310-A can be adjusted to changing surrounding conditions, optimally. The ID ANT310 / 310-A can be employed in indoor and outdoor use (IP65) and with a maximum transmitting power of up to 8 W, the antenna can be operated with several FEIG HF readers. Typical applications for the ID ANT310 / 310-A are libraries, document tracking, logistics at conveyor belts or sorting systems, access control and industrial data acquisition.

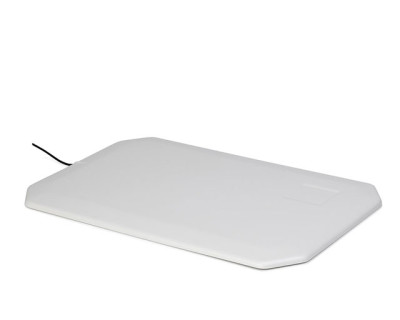

The FEIG ID ANT340 / 240 is designed as a particularly flat external antenna for contactless data exchange with HF transponders and impresses with its excellent performance and elegant design. These characteristics make the ID ANT340 / 240 perfectly suited for desktop applications in offices or libraries. Beside the variant with plastic housing, the ID ANT340 / 240 is also available as an antenna module without housing. The ID ANT340 / 240 has a read range of up to 30 cm. ID ANT340/240 has a coaxial cable and can be operated with a reader, immediately.

The FEIG ID ANT40/30 HF Antenna for proximity reader modules is the perfect addition to all of your eTicketing, eMobility, and Closed Loop Payment solutions. The ID ANT40/30 support systems according to ISO 14443-A/-B and ISO 15693. The ID ANT40/30 external antenna offers multiple supported HF reader modules.

The FEIG HF Long Range Antenna ID ANT800 / 600-DA can be used in combination with the reader ID LR(M)1002 and ID LR(M)2500. The ID ANT800 / 600-DA is a single loop antenna with tuning circuitry and facilitates read ranges of up to 100 cm with a transmitting power of 4 W. After installing in changed ambient conditions, the ID ANT800 / 600-DA can be tuned using the corresponding commands. The ID ANT800 / 600-DA consists of the electrical antenna conductor, housing and the tuning circuitry ID DAT (Tuner) and is factory tuned on a wood base to an impedance of 50 ohm.

The FEIG ID ANT.U LOCFIELD antenna allows you to design your tailored UHF RFID reading zone. As a result, RFID technology can also be applied where previously a large number of required antennas made the use uneconomical. The handling of the ID ANT.U LOCFIELD is very simple. The ID ANT.U LOCFIELD is moved until the desired reading zone is clearly defined. The required reading range is then achieved by choosing the reader itself or by adjusting the reader''s RF performance. The ID ANT.U LOCFIELD antenna can be formed into almost any shape: straight lines, meandering waves, circles, etc. Thus, numerous, formerly challenging applications can be realized, such as intelligent shelves, RFID in complex machines or on doors and passageways. The ID ANT.U LOCFIELD antenna convinces above all by its unbeatable flexibility. Available in a total of 4 variants, the ID ANT.U LOCFIELD can be used almost anywhere and combined with readers of different strengths.

The FEIG ID ISC.ANT.U170/170 UHF Long Range Circular Antenna tackles tough indoor and outdoor applications. The ANT.U170/170 offers a small and lightweight design for even more flexibility in how it can be used. The ANT.U170/170 features a circular polarization for optimized reading performance. Combining elegant design and an IP65 rated protective build, the ANT.U170/170 can be used for both indoor and outdoor applications.

The FEIG ID ISC.ANT.U270/270 UHF Long Range Circular Antenna tackles tough indoor and outdoor applications. Combining elegant design and an IP65 rated protective build, the ANT.U270/270 can be used for both indoor and outdoor applications. The ANT.U270/270 features a circular polarization for optimized reading performance.

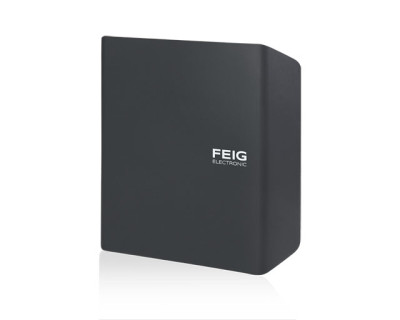

The FEIG ID ANT290/290 UHF Long Range Circular Polarized Antenna combines all the best qualities for optimal outdoor performance. The ANT290/290''s circular antenna polarization allows for transponder identification in various orientations. Coupled with an easy to mount VESA connection, the ANT290/290 is perfect for any application. The ANT290/290 features an elegant and durable IP67 rated design that can withstand both indoor and outdoor applications.

The FEIG ID ANT370/270 is designed as very flat and shielded antenna for contactless data exchange with common HF transponders. The ID ANT370/270 impresses with its outstanding performance and modern design. The ID ANT370/270''s read range with single transponders could reach more than 30 cm. Due to its integrated shielding, transponders will be detected only inside the ANT370/270''s antenna area and interferences between several antennas will be minimized. Additionally installation on metallic or conductive surfaces has no influence on the ID ANT370/270, giving you more installation flexibility. The ID ANT370/270 is best suitable for desktop applications in offices and libraries to trace files or documents and to detect lendable items at the check out or return point.
