Epson TM-U675 Specs
Epson TM-U675 Driver

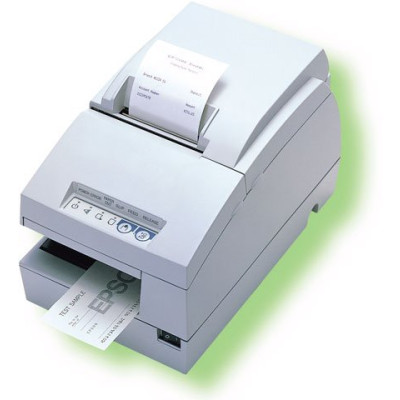

TM-U675 multifunction printer brings a new dimension of quality, reliability and performance to the retail and banking environments. Building upon the strengths of our popular TM-U375 model, the TM-U675 is packed with the features and functions you need most to ensure smooth, fast and productive printing of slips, receipts and validations?all in a single compact unit. Its excellent slips handling and other optimized features for retail make the TM-U675 the superior choice for busy counters.
| TM-U675 Specifications | |
| Print Method | 9-pin serial impact dot matrix |
Print Font
|
5 x 9 / 7 x 9 Receipt: 37/50 columns Slip/Validation: 45/60 columns 1.56 (W) x 3.1 (H) mm/1.24 (W) x 3.1 (H) mm 95 alphanumneric characters 37 international characters 128 x 9 graphic characters |
| TM-U675 Print Speed | Approx. 4.6 LPS (40 columns, 17.8 CPI) |
| Paper Dimensions | Receipt or journal: 82.5mm +/- 0.5mm x dia. 83mm Slip:70 (W) x 150 (L) to 148 (W) x 210 mm Validation 148 (W) x 70 (L) to 150 (W) x 210 (L) mm |
| Paper Thickness | Receipt or journal: 0.06 to 0.085mm/sheet (Total thickness: 0.2mm or less) Slip: 0.09 to 0.2mm/sheet (Total thickness: 0.09 to 0.31mm) |
| Validation | 8 lines |
| Copy Capability | Receipt or journal: 1 original and 2 copies Slip/Validation: 1 original and 2 copies |
| Inked Ribbon | ERC-32 |
| Ribbon Life | 6 million characters |
| Power Supply Voltage | 24 VDC +/- 10% |
| Current Consumption | Approx. 1.7A (mean) |
| D.K.D. Function | 2 drivers |
| Reliability | MTBF 18 x 10 hours MCBF 37 x 10 lines |
| TM-U675 Overall Dimensions |
195 (H) x 186 (W) x 298 (D) mm [7.7" (H) x 7.3" (W) x 11.7" (D)] |
| Weight | Approx. 5.8 kg (12.8 lbs.) |
| EMI Standards | VCCI class A, FCC class A, CE marking |
| Safety Standards | UL, C-UL, TUV |
| Interface | RS-232C/Bi-directional parallel/RS-485 |
| Optional Interfaces | Epson Connect-It interfaces are available for some legacy products |
| Data Buffer | 45 or 4K bytes |
| TM-U675 NV Bit Image Memory | 384 KB can be used to store graphic files |
Refine Your Options
Shop By
Shopping Options
-
Interface Options
-
Included Features
-
Form Factor
-
Magstripe Option
-
Color
-
Epson Multi-Function Receipt Printer
Part #: C31C283A8901 | SKU: EPS31695Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - White - USB Interface - No Autocutter and No MICR - Requires power supply (Part# C825343)MSRP: $1,021.00 Price: $820.88 -
Epson Multi-Function Receipt Printer
Part #: C31C283A8771 | SKU: EPS31693Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - Gray - USB Interface - No Autocutter and No MICR - Requires power supply (Part# C825343)MSRP: $1,021.00 Price: $820.88 -
Epson Multi-Function Receipt Printer
Part #: C31C283A8711 | SKU: EPS67556Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - Grey - 4.6 Lines Per Second - Autocutter - USB Interface and No MICR - Requires power supply (Part# C825343)MSRP: $1,119.00 Price: $898.57 -
Epson Multi-Function Receipt Printer
Part #: C31C283A8941 | SKU: EPS31696Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - White - Impact - USB Interface - Display Module and Hub Port - No Autocutter and No MICR - Requires power supply (Part# C825343)MSRP: $1,059.00 Price: $854.58 -
Epson Multi-Function Receipt Printer
Part #: C31C283A8921 | SKU: EPS38266Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - Grey - 4.6 Lines Per Second - No Autocutter - Parallel Interface and No MICR - Requires power supply (Part# C825343)MSRP: $962.00 Price: $776.90 -
Epson Multi-Function Receipt Printer
Part #: C31C283A8911 | SKU: EPS31642Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - Gray - Serial Interface and No MICR - Requires power supply (Part# C825343)MSRP: $962.00 Price: $776.90 -
Epson Multi-Function Receipt Printer
Part #: C31C283012 | SKU: EPS24765Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - White - 4.6 Lines Per Second - Serial Interface and No MICR - Requires power supply (Part# C825343)MSRP: $962.00 Price: $776.90 -
Epson Multi-Function Receipt Printer
Part #: C31C283A8791 | SKU: EPS31694Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - Gray - USB Interface - Autocutter - No MICR - Requires power supply (Part# C825343)MSRP: $1,240.00 Price: $996.78 -
Epson Multi-Function Receipt Printer
Part #: C31C283A8851 | SKU: EPS47768Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - Grey - 4.6 Lines Per Second - No Autocutter - Parallel Interface and MICR - Requires power supply (Part# C825343)MSRP: $1,059.00 Price: $854.58 -
Epson Multi-Function Receipt Printer
Part #: C31C289012 | SKU: EPS24768Multi-Function Receipt Printer - Epson TMU675 - Receipt and Slip Validation and Printing - Impact - White - 4.6 Lines Per Second - Parallel Interface and No MICR - Requires power supply (Part# C825343)MSRP: $962.00 Price: $776.90
