Epson TM-T88iii Specs
Epson TM-T88iii Driver
Built with the same high quality and reliability of TM-T88iii , the TM-T88iii provides a 25% increase in speed and is available bundled with a power supply for ease of configuration and convenience. It's the perfect solution for high-volume retail and hospitality environments that require fast and quiet printing with few consumables.
- Easy drop-in paper loading with tear-bar and autocutter
- Ease-of-use features including Auto Status Back (ASB) messages
- Available bundled with power supply
- Newly extended two-year warranty
|
Print Method |
Thermal line printing |
|
Print font |
9 x 17 / 12 x 24 |
|
Column capacity |
56 / 42 columns |
|
Character size |
0.99 (W) x 2.4 (H) / 1.41 (W) x 3.39 (H) mm {0.039 x 0.095" / 0.056 x 0.133"} |
|
Character set |
95 Alphanumeric, 32 International, 128 x 8 Graphic, Tradional/Simple Chinese, Thai, Japanese, Korean |
|
Bar code |
UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), CODE 39, CODE 93, CODE 128, ITF, CODABAR |
|
Characters Per Inch |
20 CPI / 15 CPI |
|
Interface Options |
RS-232C, Bi-directional parallel, RS-485, USB, 10Base-T I/F |
|
TM-T88iii Data buffer |
4KB / 45 bytes |
| Print speed (max.) |
150mm {5.9"}/sec. (47 lps, 1/8" conversion) |
|
Paper Dimensions |
Roll paper: 79.5 ± 0.5(W) x diameter 83.0mm {3.13 ± 0.02 x diameter 3.27"} |
|
Paper thickness |
0.06 to 0.07mm {0.0024 to 0.0028"} |
|
Power |
24 VDC ± 7% |
|
Power Consumption |
Approx. 1.8A (mean) |
|
D.K.D. function |
2 drivers |
|
TM-T88iii Reliability |
|
| MTBF MCBF | 360,000 hours 52,000,000 lines |
| Overall dimensions | 145 (W) x 195 (D) x 148 (H) mm (5.71 x 7.68 x 5.83") |
|
Mass |
Approx. 1.8 kg {3.96 lbs} |
|
Color |
ECW, EDG |
|
EMC standards |
VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B |
|
TM-T88iii Safety standards |
UL, CSA, TÜV (EN60950) |
Refine Your Options
-

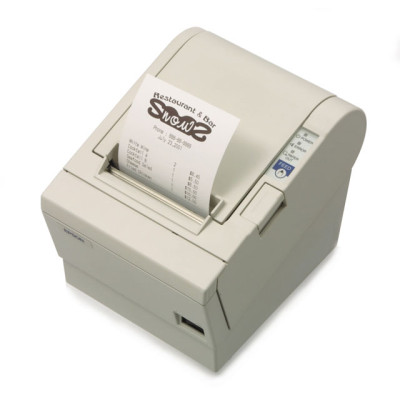

Epson TM-T88iii Receipt Printer
Part #: C420863 | SKU: EPS651Thermal, 5.9 ips, USB (without hub for pole display) interface. Includes auto-cutter & power supply. Order cables separately. See accessories. Color: dark gray. -
Epson TM-T88iii Receipt Printer
Part #: C421034 | SKU: EPS652TM-T88III, Thermal, 5.9 ips, parallel interface. Includes auto-cutter & power supply. Order cables separately. See accessories. Color: Dark gray. -
Epson Receipt Printer
Part #: C420084 | SKU: EPS653Thermal, 5.9 ips, serial interface. Includes auto-cutter & power supply. Order cables separately. See accessories. Color: dark gray. -
Epson Receipt Printer
Part #: C31C420A8150 | SKU: EPS654Thermal, 5.9 ips, ethernet interface. Includes auto-cutter & power supply. Order cables separately. See accessories. Color: dark gray. (formerly listed as (Part# C420861) -
Epson Receipt Printer
Part #: C420864 | SKU: EPS655Thermal, 5.9 ips, USB (without hub for pole display) interface. Includes auto-cutter & power supply. Order cables separately. See accessories. Color: white. -
Epson Receipt Printer
Part #: C420014 | SKU: EPS657TM-T88III, Thermal, 5.9 ips, serial interface. Includes auto-cutter & power supply. Order cables separately. See accessories. Color: white.
