221721 221721 221721 Elo

Elo Touchscreen
Part #: E785229 | SKU: ELO221721

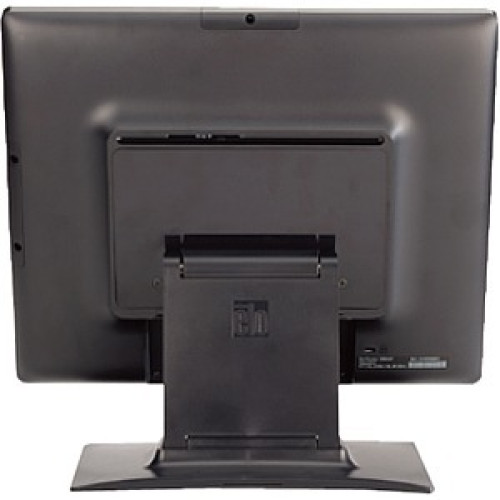

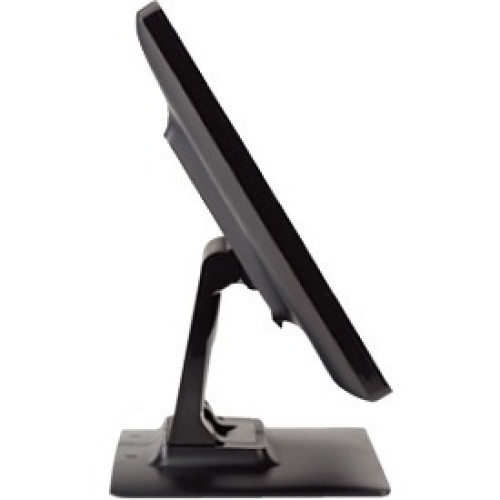

Introducing the Elo 1723L 17-inch standard format touchscreen monitor that meets the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1723L brings a clean, modern feel to any environment. The zero-bezel monitor is available in both black or white with Elo's industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.?The 17-inch monitor offers a choice of two industry leading Elo touchscreen technologies. Both enable multi touch functionality, with a seamless zero-bezel display. IntelliTouch surface acoustic wave (SAW) zero-bezel delivers the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box. The 1723L has been designed for touch from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability. The 17-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by a three-year standard warranty.

Elo Touchscreen

Part Details: 17" Touchscreen Monitor - Elo 1723L - Desktop LCD - 5:4 Aspect Ratio - IntelliTouch ZB Dual-Touch - 1280 x 1024 SXGA - 16.7 million Colors - 225 nits Brightness (typical) - LED Backlight - 1000:1 Contrast Ratio (typical) - VGA & DVI Video Interface - USB Touch Controller Interface - Anti-Glare - Zero-Bezel - Stand - Black - 3-Year Warranty - Speakers - Adjustable Display Angle - RoHS - China RoHS - WEEE - Worldwide. Box Includes Quick Install Guide - Japan Class-B TM Info Sheet - User Manual CD - 50W Power Brick - Power Cable (Part# E378229) - IEC 60320-C13 to NA/EU Plug - DVI-D Cable - VGA Cable (DB-15 Male to DB-15 Male) - USB Cable (Type A Plug to Type B Plug) - Audio Cable - Stand Base Assembly (Part# E896711) - Filler Plate (Part# E000450).
InStock
MSRP: $1,063.00 Price: $923.97

Additional Information

Manufacturer AIDC Elo
Model Name 1723L

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Adjustable Display Angle: Yes
  • Adjustable Display Height: Yes
  • Screen Mode: SXGA
  • Features:
    • Security Lock
    • Cable Management
    • Water Proof
  • Mount Type:
    • Desk Mountable
    • Wall Mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 30 ms
  • Screen Surface:
    • Anti-glare
    • Anti-scratch

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1723L
  • Product Name: 1723L Multifunction 17-Inch Desktop Touchmonitor

Physical Characteristics

  • Weight with Stand (Approximate): 11.49 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 8.23"
  • Width with Stand: 15.39"
  • Depth with Stand: 14.17"
  • Color: Black
  • Weight (Approximate): 7.85 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Certifications & Standards:
    • UL/cUL
    • FCC-A
    • Semko
    • CE
    • VCCI
    • C-Tick
    • UL/cUL
    • FCC-A
    • Semko
    • CE
    • VCCI
    • C-Tick
  • Package Contents:
    • 1723L Multifunction 17-Inch Desktop Touchmonitor
    • Touch Cable
    • Video Cable
    • 1723L Multifunction 17-Inch Desktop Touchmonitor
    • Touch Cable
    • Video Cable
  • Platform Supported: PC

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Power Description

  • Operating Power Consumption: 22 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Built-in Devices

  • Built-in Devices:
    • USB Hub
    • Speaker

Touchscreen Information

  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

Audio

  • Speakers: Yes
Extended Details
