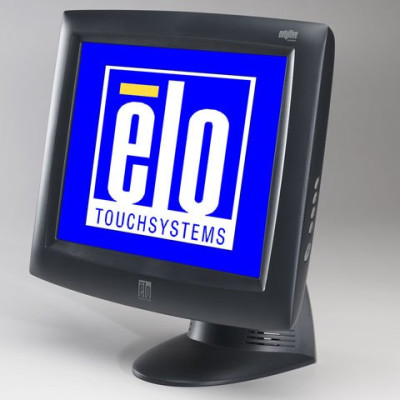

Elo Entuitive 1525L Touchscreen

The 1525L-MSR touchmonitor is based on the popular 1525L touchmonitor but includes an integrated three-stripe, ergonomically-placed magnetic stripe reader (MSR). The MSR is incorporated into the monitor housing and is designed to flow with the elegant styling of the monitor, rather than looking like a tacked-on afterthought. Available with a choice of touch technologies, the 1525L-MSR is targeted toward applications that require the use of credit/debit cards, loyalty cards, and other card transactions. Unlike most MSRs, the 1525L-MSR also reads the third data stripe, normally reserved for applications such as customer loyalty programs. Elo has positioned the MSR unit ergonomically on the top, right corner so that the user can swipe the card flat with a natural action. The USB version has an internal USB hub so that a single USB connection/cable carries both the touch interface signal and the MSR data.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Elo Entuitive 1525L Specs (pdf)

Features

"Designed for touch" features such as a stable tilt base
Cables hidden from user's view
Mounting holes on base bottom for tabletop security
Base removable or reversible for wall mounting, plus VESA mounting option
Built-in speakers located in display head
Available with AccuTouch Five-Wire Resistive Technology, CarrollTouch Infrared Technology, IntelliTouch Surface Wave Technology, or Surface Capacitive.
Serial or USB touch interface
Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
Controls on the side rather than the front, plus lockout function for public use
Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
Internal power supply
Long-lasting product cycle
Worldwide agency approvals

Specifications

Model	1525L
Series	3000
Availability	Worldwide
Case/Bezel color	Dark gray
Display	Size: 15" diagonal Type: Active matrix TFT LCD Aspect ratio: 4 x 3
Useful screen area	Horizontal: 11.9" (304 mm) Vertical: 8.9" (228 mm)
Monitor dimensions	Width: 15.37" (390 mm) Height (inc. base): 15.40" (391 mm) Depth (inc. base): 8.2" (208 mm)
Optimal (native) resolution	1024 x 768 at 60, 70 or 75 Hz
Other supported resolutions	1024 x 768 at 65 Hz (Sun) 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72, and 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66 (Mac), 72 and 75 Hz
Colors	16 million
Brightness LCD panel	300 cd/m² (typical)
Brightness LCD panel with touchscreen	AccuTouch: 246 cd/m² (typical) CarrollTouch: 276 cd/m² (typical) IntelliTouch: 276 cd/m² (typical) Surface capacitive: 237 cd/m² (typical)
Response time	25 msec (typical)
Viewing angle (typical, from center)	Horizontal (left/right): +/-75° or 150° total Vertical (up/down): 75/50° or 125° total
Contrast ratio	500:1
Input video format	Analog (no proprietary video card needed)
Input video signal connector	Mini D-Sub 15-Pin VGA type
Input frequency	Horizontal: 31.5 - 60 kHz Vertical: 56 - 75 Hz
Power supply	Type: Internal power supply Input (line) voltage: 100 - 240 VAC, 50 - 60 Hz
Power dissipation	TBD
Temperature	Operating: 0°C to 40°C Storage: -30°C to 60°C
Humidity	Operating: 20% - 80% Storage: 5% - 95% noncondensing
Weight (approx.)	Actual: 14.7 lb (6.67 kg) Shipping: 20.45 lb (9.28 kg)
Warranty	Monitor: 3 years Backlight lamp life: min 40,000 hours to half brightness
Agency approvals	UL/cUL, TUV-GS, CE, FCC/IC/VCCI/C-Tick Class B
Speakers	Two built-in, rear-facing 1W speakers in display head
On-screen display (OSD)	Digital OSD
User's controls	Side: auto, enter, +/-, menu, power OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time, language (English, German, Spanish, Japanese, French) OSD disable/enable: power, volume, and/or OSD menu
Mounting options	75mm VESA mount Removable base Wall-mountable when installed by qualified personnel Optional stability plate
Other features	Sealing

Extended Details

Refine Your Options

Elo Touchscreen
Part #: A85217-000 | SKU: ELO364

Elo 1525L Desktop TouchScreen LCD Monitor - 15" - Surface Acoustic Wave - Dark Gray
Elo Touchscreen
Part #: 139882-000 | SKU: ELO367

Elo 1525L Desktop TouchScreen LCD Monitor - 15" - 5-wire Resistive - Dark Gray
Elo Touchscreen
Part #: E75784-000 | SKU: ELO9092

Entuitive 1525L, 15" AccuTouch (resistive), with serial interface, black.
Elo Touchscreen
Part #: 947098-000 | SKU: ELO9094

Elo 1525L 15" LCD Touchscreen Monitor - 25 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.7 Million Colors - USB - VGA - Dark Gray
Elo Touchscreen
Part #: 726256-000 | SKU: ELO9097

Elo 3000 Series 1525L Multifunction Monitor - 15" - Surface Acoustic Wave - Dark Gray
