60235 60235 60235 Datamax-O'Neil

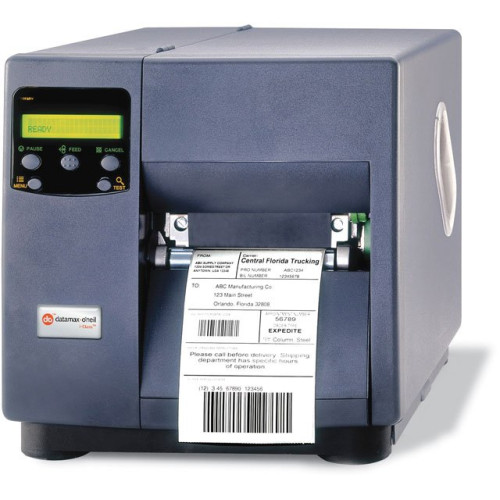

Datamax-O'Neil Barcode Label Printer Datamax-O'Neil Barcode Label Printer

Datamax-O'Neil Barcode Label Printer
Part #: R44-00-18400007 | SKU: DAT60235

The DMX-I-4406 Printer from Datamax-O-Neil is perfect for applications that demand printing very small labels high-resolution graphics or two-dimensional bar codes. With a 406 dpi (16 dots-mm) printhead and the ability to accurately maintain print registration the I-4406 produces small labels for applications such as tracking small parts with high resolution bar code labels printing high quality graphics for identifying wiring harnesses cosmetic labels or adding an intricate Datamatrix Aztec or PDF-417 bar code label to a package. When it comes to reliability ease of use maintenance and high performance there is just one choice: the Datamax-O-Neil I-4406. It's the industry's answer to your high performance high-resolution printing needs.

Datamax-O'Neil Barcode Label Printer

Part Details: I-4406, Thermal transfer Printer (400 dpi, 4.1 inch Print width, 6 ips Print speed, Serial and Parallel Interfaces, Internal Rewinder and Media Hub)
InStock
Need a different version of the Datamax-O'Neil I-4406 Barcode Label Printer? View all 3 configurations

Additional Information

Interface Options Parallel, Serial (RS-232)
Manufacturer AIDC Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name I-4406
Print Resolution 406 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Datamax-O'Neil I-4406 Specs Datamax-O'Neil I-4406 Specs (pdf)

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 406 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.1"
  • Maximum Label Width: 4.65"
  • Media Sensor:
    • Reflective
    • See Through
  • Printer Language: DPL
  • Input Voltage: 110 V AC - Auto-switching
  • Input Voltage Range: 90 to 132 V AC
  • RAM Memory: 16MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 12.7" (322.58mm) x 12.62" (320.55mm) x 18.6" (472mm)
    • 12.7" (322.58mm) x 12.62" (320.55mm) x x 18.6" (472mm)
  • Weight: 20.5 kg (45.19 lb)

Included Features

  • Included Features:
    • Media Hub
    • Internal Rewinder

Agency Approvals

  • Agency Approvals:
    • UL
    • Canadian
    • European
    • CE
    • FCC Class A

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"

Environmental Conditions

  • Temperature: 32°F (0°C) to 100°F (38°C) Operating
Extended Details

Recommended Accessories for Model: Datamax-O'Neil Barcode Label Printer

  • Honeywell Accessory
    Part #: DPR51-2283-00 | SKU: HON191176

    CUTTER BOARD I CLASS, I-CLASS MARK II
    MSRP: $217.28 Price: $169.28
    In Stock

  • Honeywell Accessory
    Part #: DPR78-2902-01 | SKU: HON270661

    Kit, Display Board and Bezel I-Class Mark II
    MSRP: $299.96 Price: $255.74
    In Stock

  • Honeywell Accessory
    Part #: DPO16-2627-01 | SKU: HON43843

    Adapter (3 inch Media Hub)
    MSRP: $52.90 Price: $41.44
    In Stock

  • Honeywell Accessory
    Part #: DPO78-2771-01 | SKU: HON65922

    Media Guide Kit (for the I-Class)
    MSRP: $26.48 Price: $24.85
    In Stock

  • Honeywell Accessory
    Part #: DPR51-2480-00 | SKU: HON212166

    Datamax I-Class Mark II Spare Part, Main Board
    MSRP: $1,116.28 Price: $953.49
    In Stock
View All Options

Recommended Labels for Model: Datamax-O'Neil Barcode Label Printer

  • Honeywell Labels Barcode Label
    Part #: 420202 | SKU: HON55587

    Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R).

  • Honeywell Labels Barcode Label
    Part #: ECL0353-10 | SKU: HON84547

    Datamax-O'Neil Glossy Electronic Component Label - 3/4" x 1/4" Length - Rectangle - Thermal Transfer - White - Polyester - 10000 / Roll - 1 Pack. Minimum Order Quantity: $350

  • Honeywell Labels Barcode Label
    Part #: ECL1253-10 | SKU: HON106511

    Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll. Minimum Order Quantity: 2 rolls.

  • Honeywell Barcode Label
    Part #: ECL1753-10 | SKU: HON106516

    Electronic Component Labeling, 2.0" x .25" Thermal transfer synthetic electronics component label. 1 across. 10000 labels/roll, single roll.

  • Honeywell Labels Barcode Label
    Part #: ECL0354-10 | SKU: HON106546

    Electronic Component Labeling, .75" x .25" Thermal transfer synthetic electronics component label. 4 across. 10000 labels/roll, single roll.
View All Options

Recommended Printheads for Model: Datamax-O'Neil Barcode Label Printer

  • Honeywell Printhead
    Part #: PHD20-2208-01 | SKU: HON121286

    I-4406, Replacement Printhead Kit, 406 dpi, Compatible Printer Model I-4406

  • Datamax-O'Neil I-4406 Printhead
    Part #: DPO20-2208-01 | SKU: DAT22279

    I-4406, Replacement printhead, 406 dpi.
View All Options

Recommended Ribbons for Model: Datamax-O'Neil Barcode Label Printer

  • AirTrack® Ribbon
    Part #: 05095BK08345-COMPATIBLE | SKU: AIR143647

    5095 Performance Resin, 3.27" x 1476' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 6, Core Size: 1"
    Price: $310.00

  • AirTrack® Ribbon
    Part #: 12084106-COMPATIBLE | SKU: AIR143652

    ThermaMAX TMX2200, 4.1" x 500' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1" (RI40509WR-Tr)
    Price: $183.56

  • AirTrack® Ribbon
    Part #: 05100BK11045-COMPATIBLE | SKU: AIR143653

    5100 Resin, 05100BK11045 - Compatible, 5100 Premium resin ribbon (4.33 inch width - 110 mm, 1,476 feet - 450 meters, 1 inch inner diameter core - Single roll. Minimum Purchase of 6 Rolls)
    Price: $353.23

  • AirTrack® Ribbon
    Part #: 02100BK11045-COMPATIBLE | SKU: AIR143650

    2100 Wax, 02100BK11045-Compatible Ribbon. Wax Ribbon (4.33 inch width - 110 mm, 1,476 feet - 450 meters with a 1 in. Inner Diameter Core). 24 rolls/case. Also available as a single roll (Part# 02100BK11045-R-COMPATIBLE).
    Price: $259.64

  • AirTrack® Ribbon
    Part #: 05319BK11045-COMPATIBLE | SKU: AIR143644

    5319 Wax, 4.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 6, Core Size: 1". Available as a single roll (05319BK11045-R-Compatible).
    MSRP: $336.00 Price: $259.64
View All Options

Recommended Warranties for Model: Datamax-O'Neil Barcode Label Printer

  • Datamax-O'Neil Service Contracts Service Contract
    Part #: NSC-DMC-DMX-12 | SKU: DAT17511

    Service Contract - 1 year, 1 Year Service Center Service Plan. Just ship the product to our repair depot and it will be repaired and returned quickly. Includes 2 cleanings per year.
View All Options
