| Interface Options | Parallel, Serial (RS-232) |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | I-4212 |
| Print Resolution | 203 dpi |
| Print Speed | 12 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

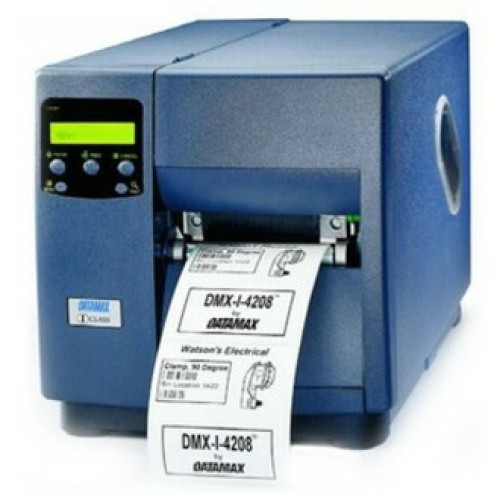

Datamax-O'Neil I-4212 Specs
Technical Information
- Maximum Mono Print Speed: 12 in/s
- Maximum Print Resolution: 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.10"
- Recommended Use: Label Print
- Features:
- Rewinder
- Peel Facility
- Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax
- Manufacturer: Datamax-O'Neil
- Product Model: I-4212
- Product Name: I-4212 Thermal Label Printer
- Product Line: I-Class
Physical Characteristics
- Height: 12.7"
- Width: 12.6"
- Depth: 18.6"
Interfaces/Ports
- Serial Port: Yes
- Parallel Port: Yes
Media Types & Handling
- Maximum Label Width: 4.65"
- Media Type:
- Roll Paper
- Fanfold
- Die-cut Label
- Continuous Label
- Perforated Paper
- Continuous Form
- Tag
- Tag Stock
- Media Thickness: 10 mil
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Maximum Roll Diameter: 8"
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: ENERGY STAR
- Platform Supported: PC
- Additional Information:
- Present
- Graphics Supported : .PCX, .BMP and .IMG files
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 2 MB
Recommended Accessories for Model: Datamax-O'Neil Barcode Label Printer
-
Honeywell Accessory
Part #: DPR51-2283-00 | SKU: HON191176CUTTER BOARD I CLASS, I-CLASS MARK IIMSRP: $217.28 Price: $169.28 -
Honeywell Accessory
Part #: DPR78-2902-01 | SKU: HON270661Kit, Display Board and Bezel I-Class Mark IIMSRP: $299.96 Price: $255.74 -
Honeywell Accessory
Part #: DPO16-2627-01 | SKU: HON43843Adapter (3 inch Media Hub)MSRP: $52.90 Price: $41.44 -
Honeywell Accessory
Part #: DPO78-2771-01 | SKU: HON65922Media Guide Kit (for the I-Class)MSRP: $26.48 Price: $24.85 -
Honeywell Accessory
Part #: DPR51-2480-00 | SKU: HON212166Datamax I-Class Mark II Spare Part, Main BoardMSRP: $1,116.28 Price: $953.49
Recommended Labels for Model: Datamax-O'Neil Barcode Label Printer
-
Honeywell Labels Barcode Label
Part #: 420202 | SKU: HON55587Duratran II, 2.5" x 1.5" Thermal transfer paper labels. 3600 labels/roll, 8 roll case. Also available as a single roll (Part# 420202-R). -
Honeywell Labels Barcode Label
Part #: ECL0353-10 | SKU: HON84547Datamax-O'Neil Glossy Electronic Component Label - 3/4" x 1/4" Length - Rectangle - Thermal Transfer - White - Polyester - 10000 / Roll - 1 Pack. Minimum Order Quantity: $350 -
Honeywell Labels Barcode Label
Part #: ECL1253-10 | SKU: HON106511Electronic Component Labeling, .50" x .4375" Thermal transfer synthetic electronics component label. 5 across. 10000 labels/roll, single roll. Minimum Order Quantity: 2 rolls. -
Honeywell Barcode Label
Part #: ECL1753-10 | SKU: HON106516Electronic Component Labeling, 2.0" x .25" Thermal transfer synthetic electronics component label. 1 across. 10000 labels/roll, single roll. -
Honeywell Labels Barcode Label
Part #: ECL0354-10 | SKU: HON106546Electronic Component Labeling, .75" x .25" Thermal transfer synthetic electronics component label. 4 across. 10000 labels/roll, single roll.
Recommended Printheads for Model: Datamax-O'Neil Barcode Label Printer
-
Honeywell Printhead
Part #: PHD20-2181-01 | SKU: HON70941I-Class, Replacement printhead kit, 203 dpi. Compatible with Datamax O'Neil I-Class. -
Datamax-O'Neil Printheads Printhead
Part #: DPO20-2181-01 | SKU: DAT22275I-Class, Replacement printhead, 203 dpi (post-2002 printers).
Recommended Ribbons for Model: Datamax-O'Neil Barcode Label Printer
-
AirTrack® Ribbon
Part #: 05095BK08345-COMPATIBLE | SKU: AIR1436475095 Performance Resin, 3.27" x 1476' Black Resin Ribbon, Compatible with Industrial printers and Polyester Labels, rolls/case: 6, Core Size: 1"Price: $310.00 -
AirTrack® Ribbon
Part #: 12084106-COMPATIBLE | SKU: AIR143652ThermaMAX TMX2200, 4.1" x 500' Black Wax-Resin Ribbon, Compatible with Industrial printers and Polypropylene Labels, rolls/case: 24, Core Size: 1" (RI40509WR-Tr)Price: $183.56 -
AirTrack® Ribbon
Part #: 05100BK11045-COMPATIBLE | SKU: AIR1436535100 Resin, 05100BK11045 - Compatible, 5100 Premium resin ribbon (4.33 inch width - 110 mm, 1,476 feet - 450 meters, 1 inch inner diameter core - Single roll. Minimum Purchase of 6 Rolls)Price: $353.23 -
AirTrack® Ribbon
Part #: 02100BK11045-COMPATIBLE | SKU: AIR1436502100 Wax, 02100BK11045-Compatible Ribbon. Wax Ribbon (4.33 inch width - 110 mm, 1,476 feet - 450 meters with a 1 in. Inner Diameter Core). 24 rolls/case. Also available as a single roll (Part# 02100BK11045-R-COMPATIBLE).Price: $259.64 -
AirTrack® Ribbon
Part #: 05319BK11045-COMPATIBLE | SKU: AIR1436445319 Wax, 4.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 6, Core Size: 1". Available as a single roll (05319BK11045-R-Compatible).MSRP: $336.00 Price: $259.64
