60090 60090 60090 Datamax-O'Neil
Datamax-O'Neil Barcode Label Printer Datamax-O'Neil Barcode Label Printer Datamax-O'Neil Barcode Label Printer

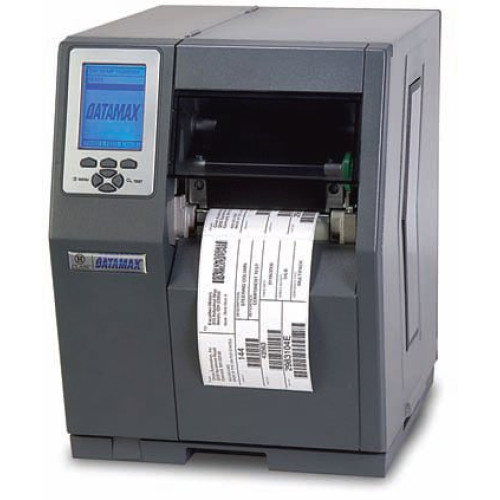

Datamax-O'Neil Barcode Label Printer
Part #: C43-00-48000007 | SKU: DAT60090

The Datamax-O-Neil H-Class family is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. H-Class printers provide throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. H-Class printers offer the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications. In addition, H-Class printers are designed with options to address evolving RFID applications. The Datamax-O-Neil H-Class why consider anything else?

Datamax-O'Neil Barcode Label Printer

Part Details: H-4310, Industrial Printer, Honeywell-Datamax H-4310, Thermal transfer, 300 dpi, 4" Print width, 10" per Second Print speed, Tall Display, Ethernet, Serial, USB and Parallel Interfaces, Includes US power supply.
InStock
Need a different version of the Honeywell H-4310 Barcode Label Printer? View all 9 configurations

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232), USB
Manufacturer AIDC Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name H-4310
Print Resolution 300 dpi, 305 dpi
Print Speed 10 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Datamax-O'Neil H-4310 Specs Datamax-O'Neil H-4310 Specs (pdf) Datamax-O'Neil H-4310 Driver Datamax-O'Neil H-4310 Driver (download)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.16"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 3 of 9
    • UPC-A
    • UPC-E
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Standard 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • HIBC
    • Codabar
    • Plessey
    • POSTNET
    • Planet Code
    • UPC 2 and 5 Digit Addendums
    • Telepen
    • FIM
    • UCC/EAN 128
    • USPS-4 State
    • Maxi Code
    • PDF-417
    • USD-8
    • Data Matrix
    • QR Code
    • Codablock
    • Code 16K
    • Aztec Code
    • TLC 39
    • GS1 DataBar
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: H-4310
  • Product Name: H-Class H-4310 Label Printer
  • Product Line: H-Class

Physical Characteristics

  • Height: 13"
  • Width: 12.6"
  • Depth: 18.9"
  • Form Factor: Desktop
  • Weight (Approximate): 40.12 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Label
    • Continuous Tag
    • Perforated Label
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • PLZ
    • PLI
    • PLB

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC
Extended Details
